Installing a drive for bay 1, Installing, Optical – Lenovo THINKSTATION D10 User Manual
Page 26: Drive
Installing
a
drive
for
bay
1
To
install
the
optical
drive
for
bay
1:
1.
Open
the
computer
cover.
See
2.
Remove
the
front
bezel.
See
Note:
On
the
inside
of
the
front
bezel
where
the
drive
is
to
be
located
there
is
a
drive
adapter
plate.
If
there
is
no
drive
installed
there
are
drive
adapter
plates
for
each
drive.
Remove
the
drive
adapter
plate
and
use
it
to
install
the
drive.
3.
Remove
the
plastic
drive
cover
from
the
bezel.
4.
For
drive
bay
one,
remove
the
static
shield
(just
pulls
out).
5.
Install
the
adapter
plate
on
the
left
side
of
the
drive
to
be
installed.
6.
Slide
the
drive
into
the
bay
until
it
locks
into
position.
7.
Connect
the
drive
cables.
8.
Install
the
front
bezel.
What
to
do
next:
v
To
work
with
another
option,
go
to
the
appropriate
section.
v
To
complete
the
installation,
go
to
Figure
9.

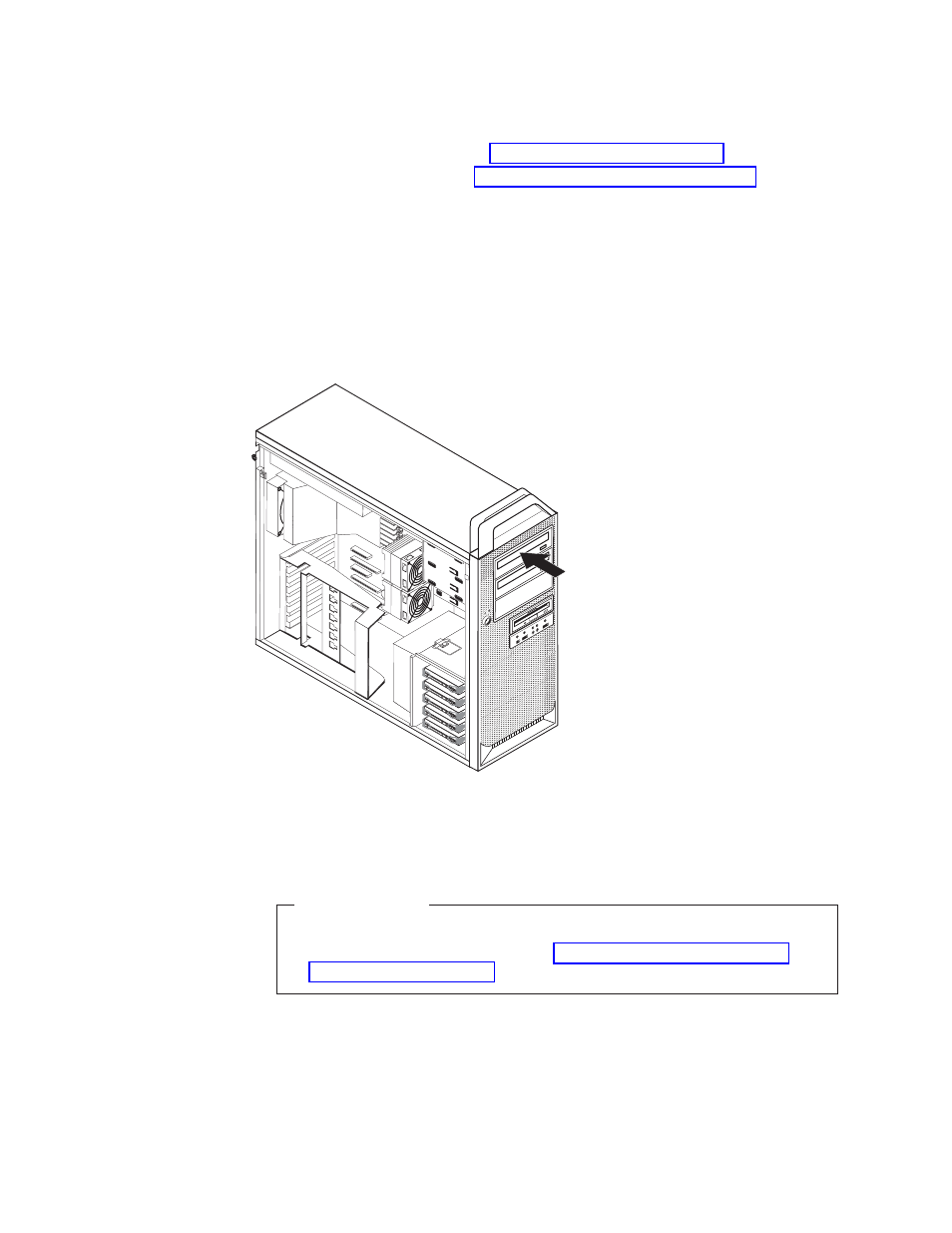

Installing
an
optical
drive
18
ThinkStation
Hardware
Installation
and
Replacement
Guide
