4.

Note

the

routing

of

the

fan-assembly

wiring.

See

“Identifying

parts

on

the

system

board”

on

page

9.

Disconnect

the

fan-assembly-wiring

connector

from

the

system

board.

5.

Remove

the

fan

assembly

by

releasing

the

fan

grommets

as

shown.

Then

remove

the

fan

and

wiring.

6.

Install

the

new

fan

assembly,

route

the

wiring,

and

then

connect

the

fan-wiring

connector

to

the

system

board.

7.

If

you

are

installing

the

front

fan

go

to

step

8.

If

you

are

replacing

the

rear

fan,

go

to

step

9.

8.

Reinstall

the

front

bezel.

9.

Go

to

Chapter

4,

“Completing

the

parts

replacement,”

on

page

43.

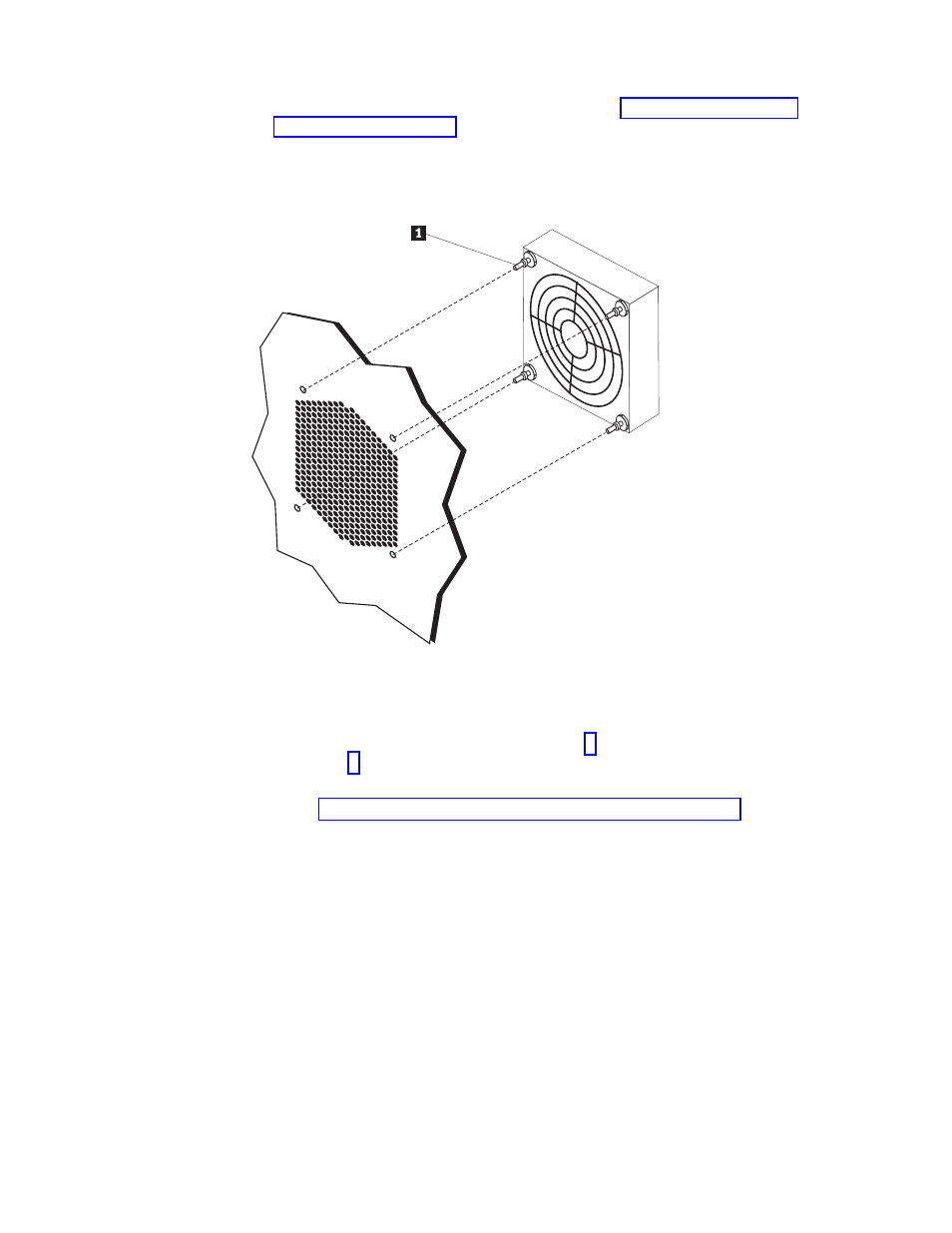

Figure

27.

Removing

the

fan

assembly

38

ThinkStation

Hardware

Installation

and

Replacement

Guide
