Replacing

the

power

supply

assembly

Attention

Do

not

open

your

computer

or

attempt

any

repair

before

reading

the

“Important

safety

information”

in

the

Safety

and

Warranty

Guide

that

was

included

with

your

computer.

To

obtain

a

copy

of

the

Safety

and

Warranty

Guide,

go

to

the

Support

Web

site

at:

http://www.lenovo.com/support/

To

replace

the

power

supply

assembly:

1.

Open

the

computer

cover.

See

2.

Locate

the

power

supply

assembly.

See

3.

Disconnect

the

power

supply

cables

1 ,

2 ,

and

3

from

the

system-board

connectors,

all

adapter

cards

(some

models)

and

from

all

drives.

See

4.

Remove

the

power

supply

cables

from

the

cable

clips

and

ties.

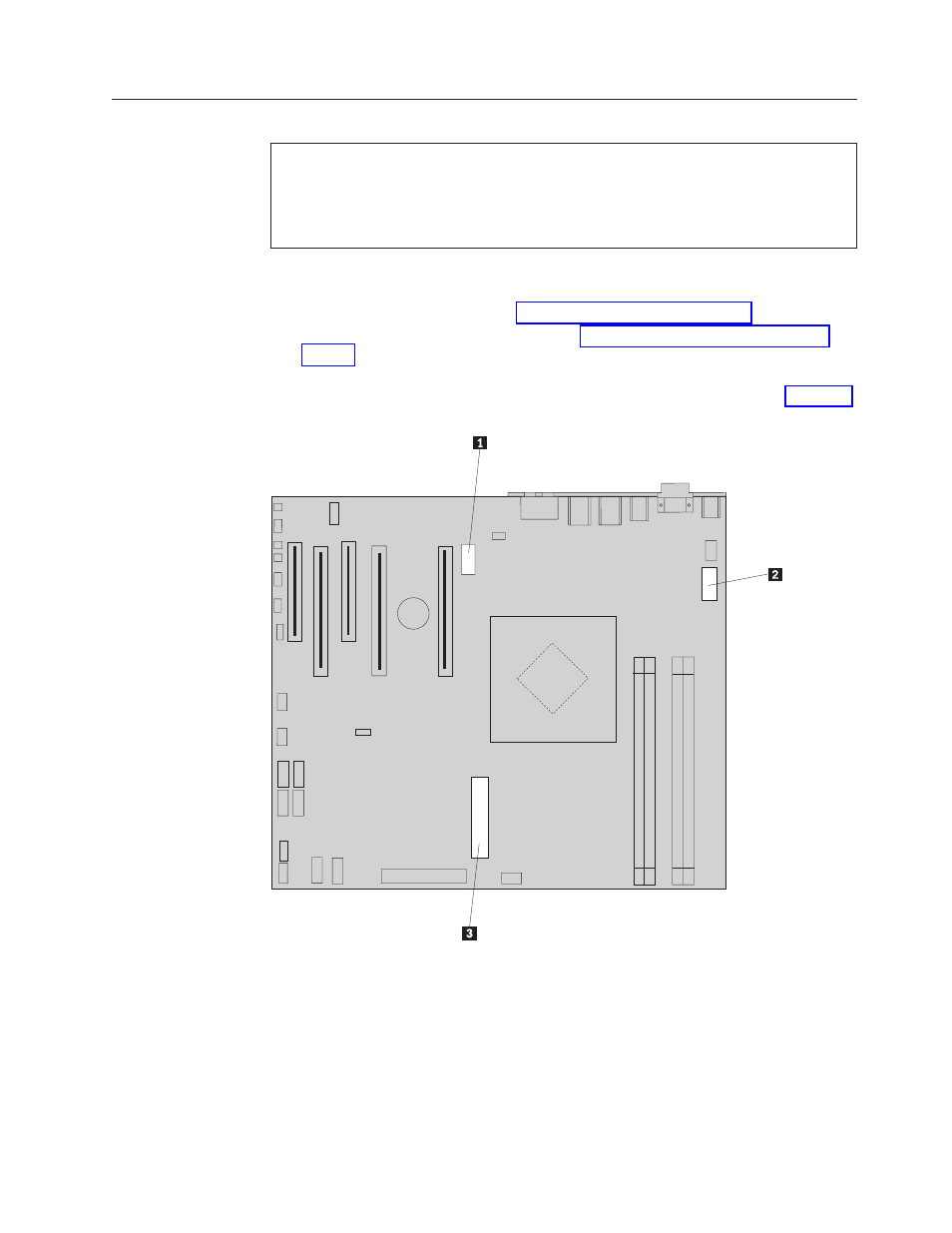

Figure

14.

System-board

connectors

Chapter

3.

Installing

options

and

replacing

hardware

25
