Locations

This

section

contains

illustrations

to

help

locate

the

various

connectors,

controls,

and

components

of

the

computer.

Locating

controls

and

connectors

on

the

front

of

your

computer

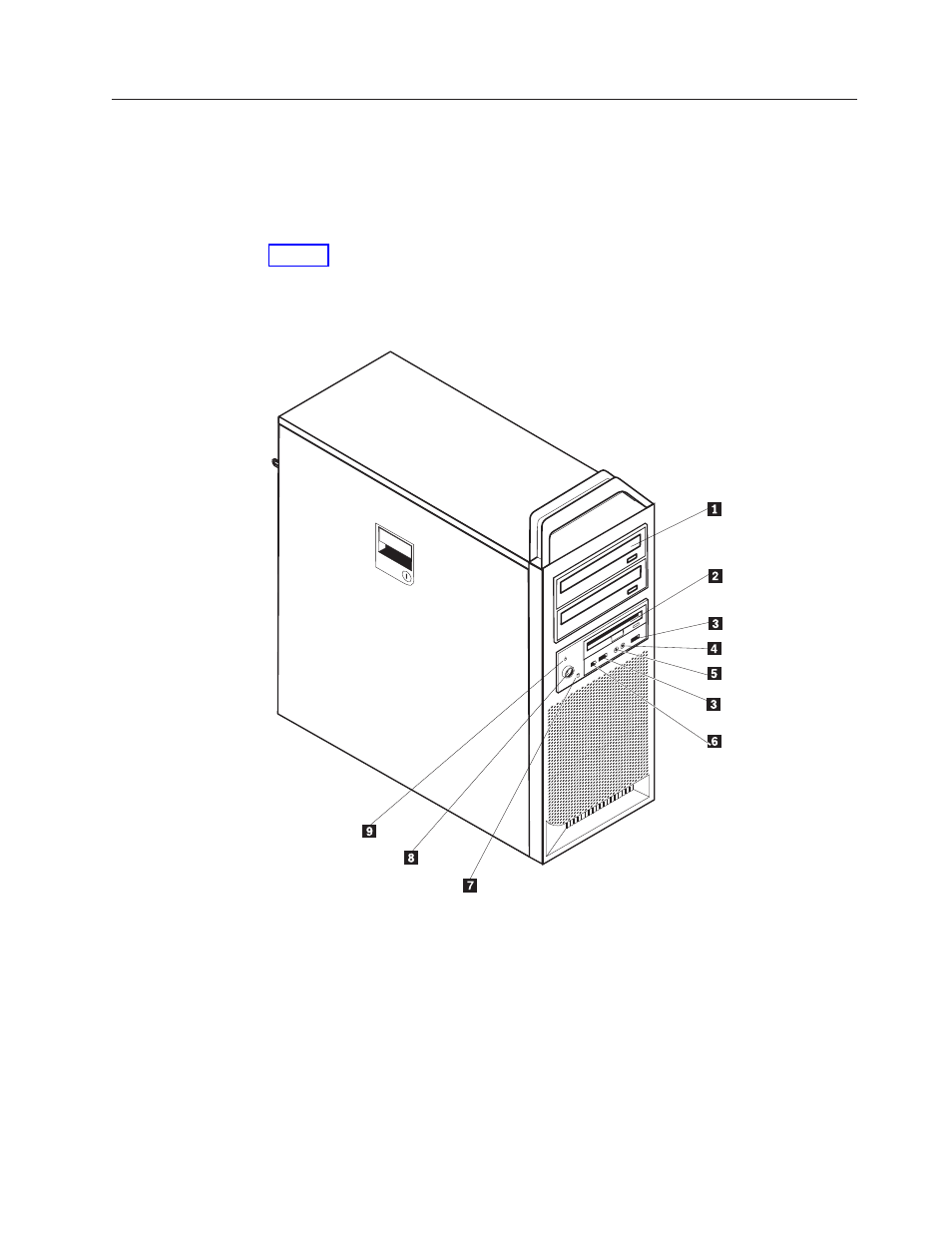

Figure

1

shows

the

location

of

the

controls

and

connectors

on

the

front

of

your

computer.

Note:

Not

all

computer

models

will

have

the

following

controls

and

connections.

1

Optical

drive

(some

models)

6

IEEE

1394

connector

2

3.5

Diskette

drive

or

card

reader

(some

models)

7

Hard

drive

activity

light

3

USB

connectors

(2)

8

Power

button

4

Microphone

connector

9

Power-on

indicator

5

Headphone

connector

Figure

1.

Controls

and

connectors

Chapter

2.

Overview

5
