ThinkServer RAID 710 Adapter (also known as 9270CV-8i RAID adapter)

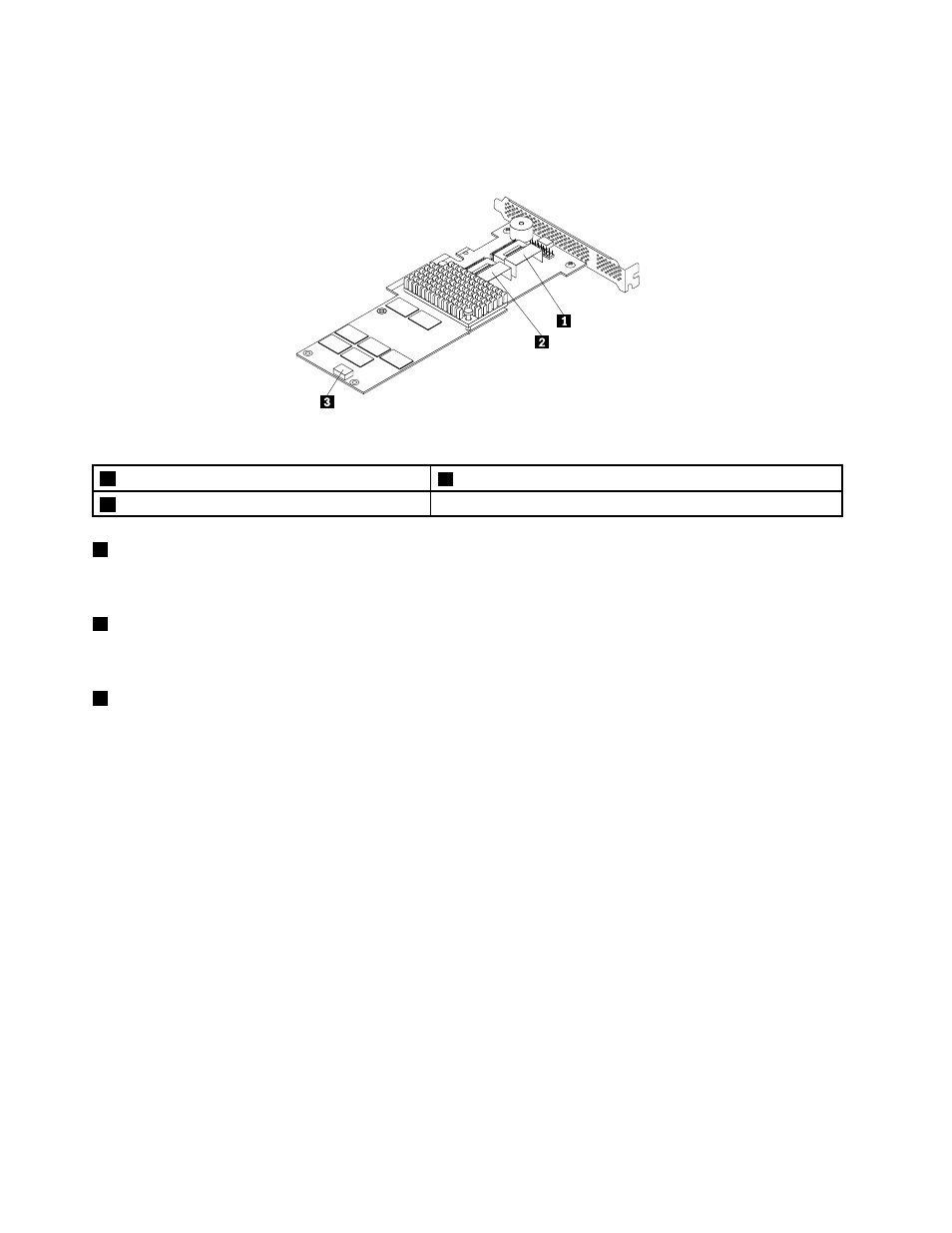

The following illustration shows the connectors on the ThinkServer RAID 710 Adapter.
Figure 27. ThinkServer RAID 710 Adapter
1 Port 1 3 ThinkServer RAID Super Capacitor Module connector
2 Port 2
1 Port 1
Used to connect a mini-SAS signal cable. See “Connecting the cables” on page 47.
2 Port 2
Used to connect a mini-SAS signal cable. See “Connecting the cables” on page 47.
3 ThinkServer RAID Super Capacitor Module connector
Used to connect the cable of a ThinkServer RAID Super Capacitor Module. See “Replacing the ThinkServer
RAID Super Capacitor Module” on page 163.
Expander card
This topic provides information to help you locate the connectors on the expander card if your server has
one installed in the shorter slot of the riser card assembly 1.
The expander card works together with the RAID card by expanding the ports on the RAID card so that
the server can support up to 16 hard disk drives.
Note: The server must have a RAID card and an expander card installed to support more than eight hard
disk drives.
42 ThinkServer RD440 User Guide and Hardware Maintenance Manual
