Page 111
10. Ensure that the two screw holes in the rear of the left cage are aligned with the corresponding holes in
the chassis. Then, install the two screws to secure the left cage in position.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
MEM 1
PSU 1 2
1 2 3 4 5 6
MEM 2 1 2 3 4 5 6 7 8 9
10 11 12
CPU 1 2
1 2 3 4 5 6 7 8
MEM 1
PSU 1 2
1 2 3 4 5 6
MEM 2 1 2 3 4 5 6 7 8 9 10 11 12
CPU 1 2
1 2 3 4 5 6 7 8
MEM 1
PSU 1 2
1 2 3 4 5 6
MEM 2 1 2 3 4 5 6 7 8 9
10 11 12
CPU 1 2
1 2 3 4 5 6 7 8
PSU
Mem
CPU

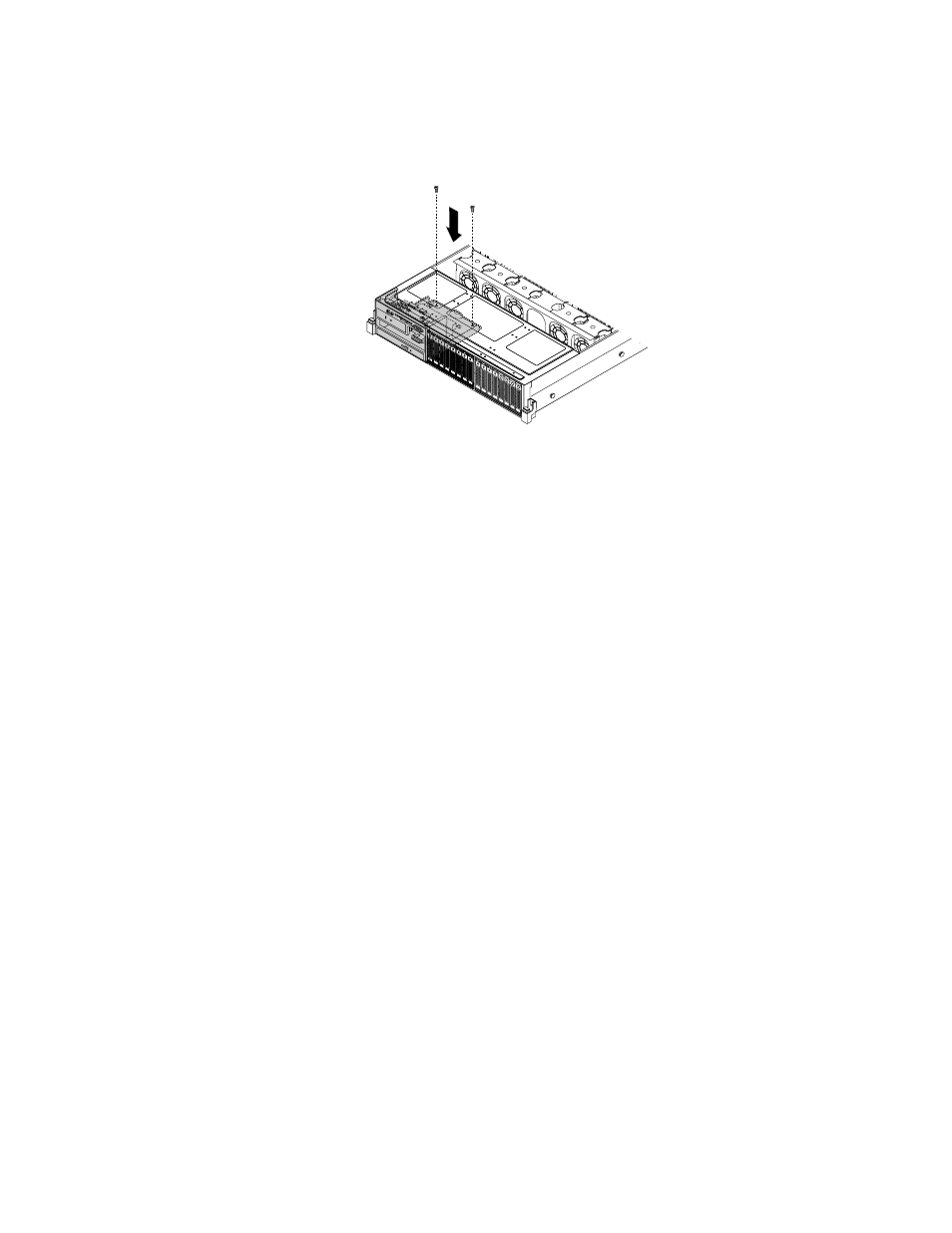

Figure 57. Installing the screws to secure the left cage
11. If your server has a slim optical drive installed, reconnect the signal cable and the power cable to the
rear of the slim optical drive.
12. Refer to your note to reconnect other cables to the system board. You also can refer to “System board
components” on page 52 to locate the connectors on the system board and reconnect cables.
13. Go to “Completing the parts replacement” on page 199.
Installing or removing a memory module
This topic provides instructions on how to install or remove a memory module.
Note: The memory modules are sensitive to ESD. Ensure that you read and understand “Handling
static-sensitive devices” on page 86 first and carefully perform the operation.
Memory module installation rules
Your server has 12 memory slots to provide the following features:
• Each slot supports 4 GB, 8 GB, and 16 GB double data rate 3 registered dual inline memory modules
(DDR3 RDIMMs).
• Your server supports up to six memory modules when one microprocessor is installed and up to 12
memory modules when two microprocessors are installed.
• The minimum system memory is 4 GB (only one microprocessor installed and only one 4 GB memory
module installed in the CPU1 DIMMA1 slot).
• The maximum system memory is 192 GB (two microprocessors installed and one 16 GB memory module
installed in each of the 12 memory slots).
For more information about the memory modules in your specific server model, use the Setup Utility
program. See “Viewing information in the Setup Utility program” on page 63.
For a list of supported ThinkServer memory module options, go to:
.
Installing, removing, or replacing hardware
99
