Lenovo ThinkServer RD440 User Manual

Page 180

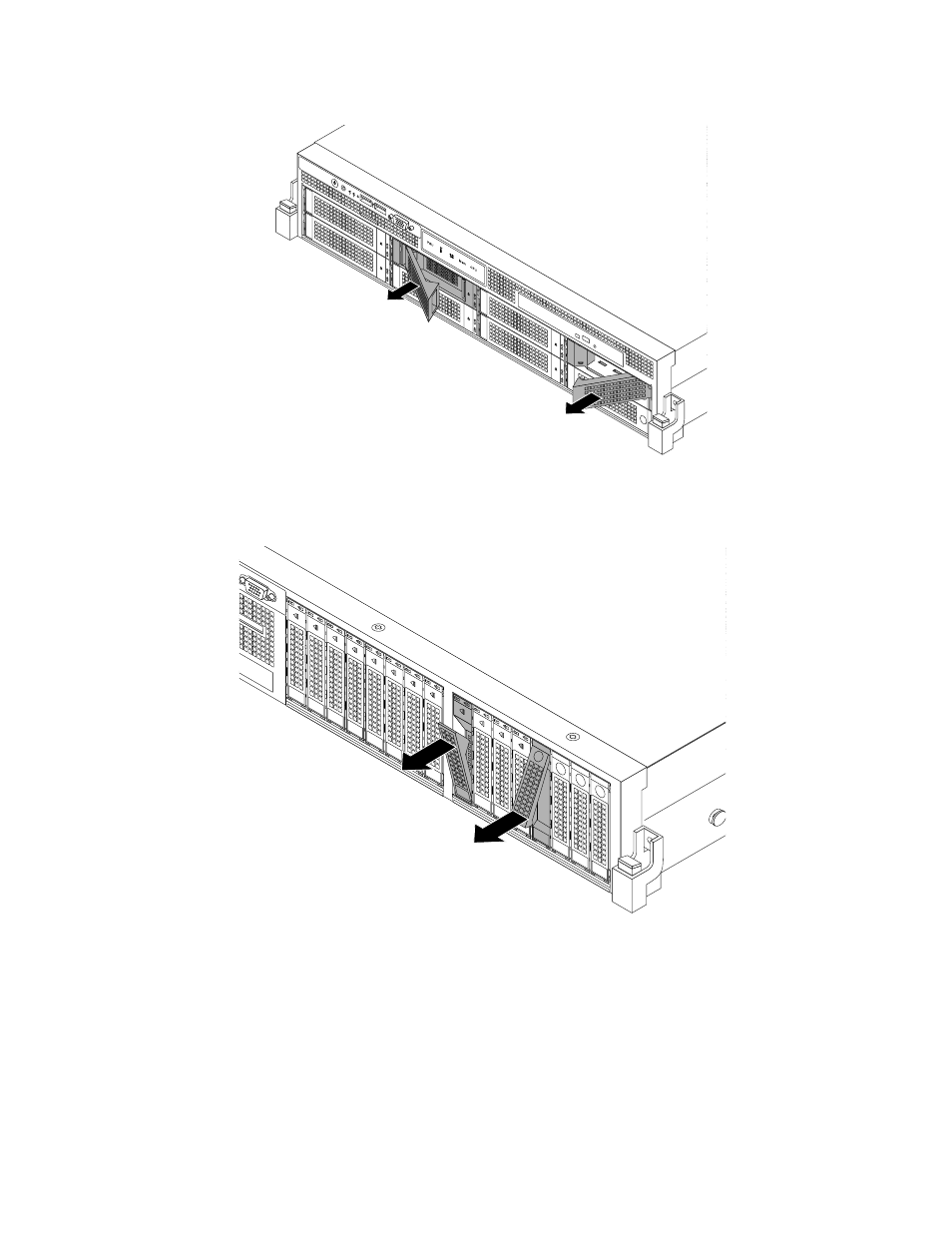

Figure 128. Removing the 3.5-inch hot-swap hard disk drive or dummy tray

Figure 129. Removing the 2.5-inch hot-swap hard disk drive or dummy tray

3. Touch the static-protective package that contains the new hot-swap hard disk drive to any unpainted

surface on the outside of the server. Then, take the new hot-swap hard disk drive out of the package.

Note: Do not touch the circuit board on the hard disk drive.

4. Slide the new hot-swap hard disk drive into the drive bay from the front until it snaps into position

and then completely close the handle.

168

ThinkServer RD440 User Guide and Hardware Maintenance Manual
