6. Touch the static-protective package that contains the new ThinkServer RAID Super Capacitor Module
to any unpainted surface on the outside of the server. Then, take the new ThinkServer RAID Super
Capacitor Module out of the package.
7. Note the orientation of the new ThinkServer RAID Super Capacitor Module. Then, gently press the tab
1 on the bracket and install the new ThinkServer RAID Super Capacitor Module into the bracket at
the same time.

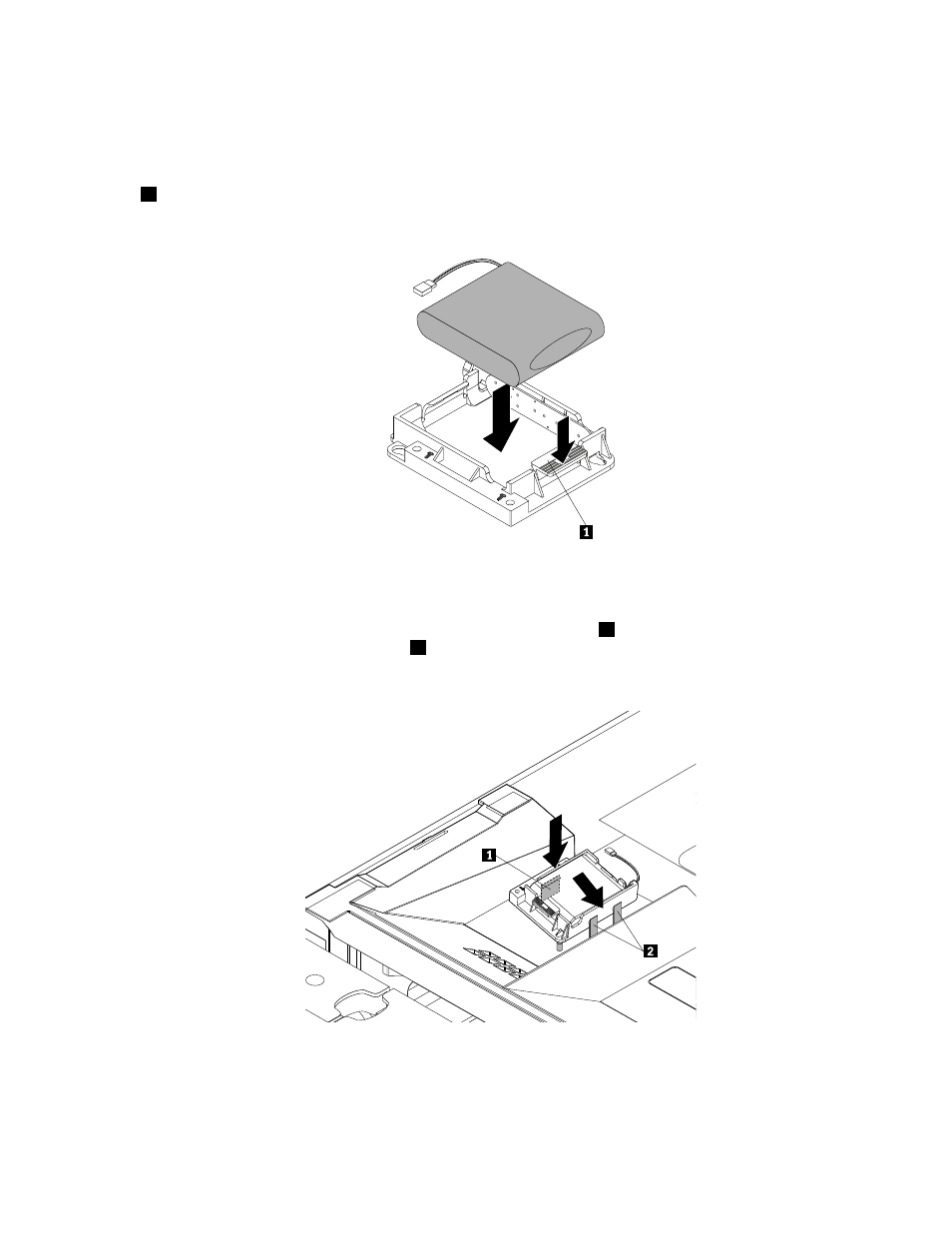

Figure 124. Installing the ThinkServer RAID Super Capacitor Module into the bracket
8. Position the new ThinkServer RAID Super Capacitor Module with bracket on the cooling shroud as
shown so that one side of the bracket is secured by the two tabs 2 . Then, press the other side of
the bracket straight down until the tab 1 passes through the corresponding hole in the bracket and
secures the bracket in place.
Figure 125. Installing the ThinkServer RAID Super Capacitor Module with bracket
9. Connect the cable to the new ThinkServer RAID Super Capacitor Module.
Chapter 6 . Installing, removing, or replacing hardware 165
