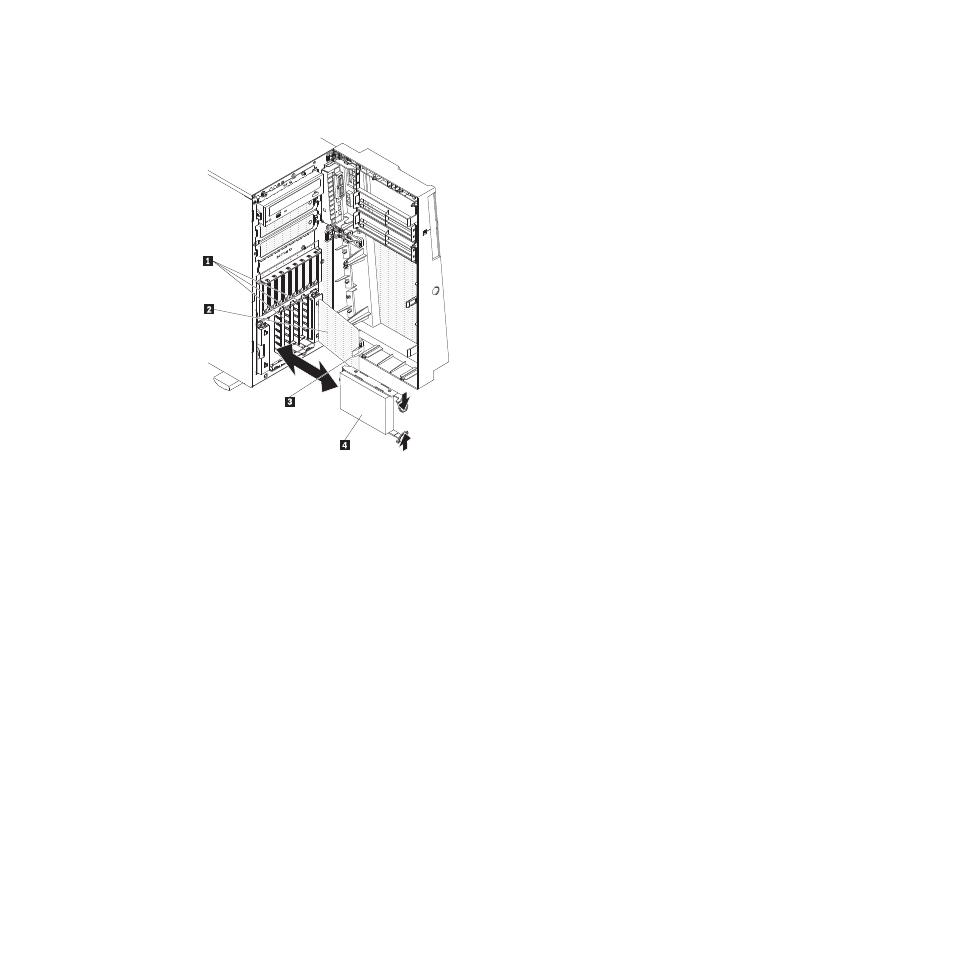

1 Filler panels
2 Drive-bay EMC shield
3 Tab
4 Hard disk drive
6. Pull the loops of the drive assembly that is to be removed toward each other;
then, pull the drive assembly out of the bay and set it aside.
7. If you are instructed to return the simple-swap hard disk drive, follow all
packaging instructions, and use any packaging materials that are supplied to
you for shipping.
Installing a simple-swap hard disk drive
Attention: Simple-swap hard disk drives are not hot-swappable. Disconnect all
power from the server before removing or installing a simple-swap hard disk drive.
To install a simple-swap hard disk drive, do the following:
1. Touch the static-protective package that contains the drive to any unpainted
metal surface on the server; then, remove the drive from the package and place
it on a static-protective surface.
2. Align the drive assembly with the guide rails in the bay.
76 ThinkServer TD200 Types 3724, 3808, 3809, 3815, 3817, 3824, 3826, 3836: Installation and User Guide
