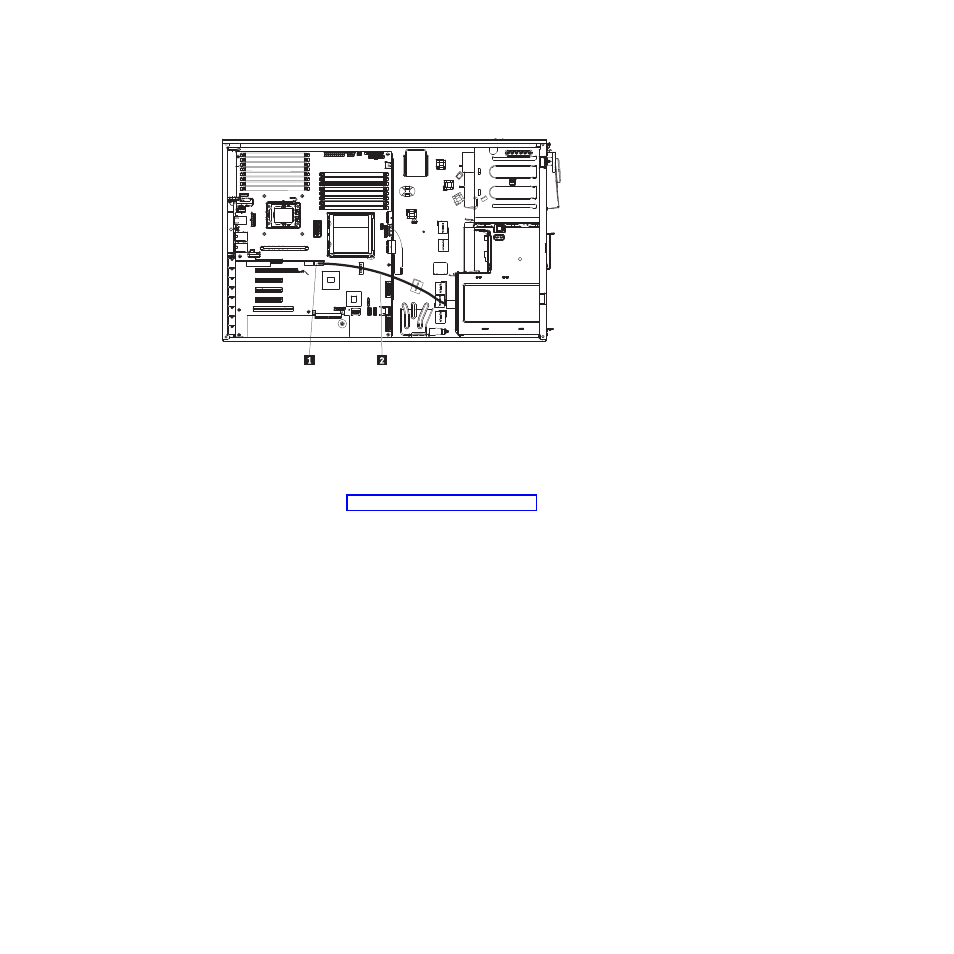

1 Adapter connector
2 Signal cable
17. Reinstall the front fan cage assembly. Align the front fan cage assembly over
the fan cage assembly slot and with the connector on the system board. Lower
the fan cage assembly into the chassis and press down firmly until the fan
cage assembly is seated firmly in place. Make sure that no cables will be
pinched.
18. Reinstall the air baffle (see “Installing the air baffle” on page 132).
19. Rotate the rear adapter-retention bracket to the closed (locked) position.
20. Rotate the power-supply cage assembly back into the server. Press the
power-supply cage release tab and rotate the power-supply cage assembly
into the chassis.
