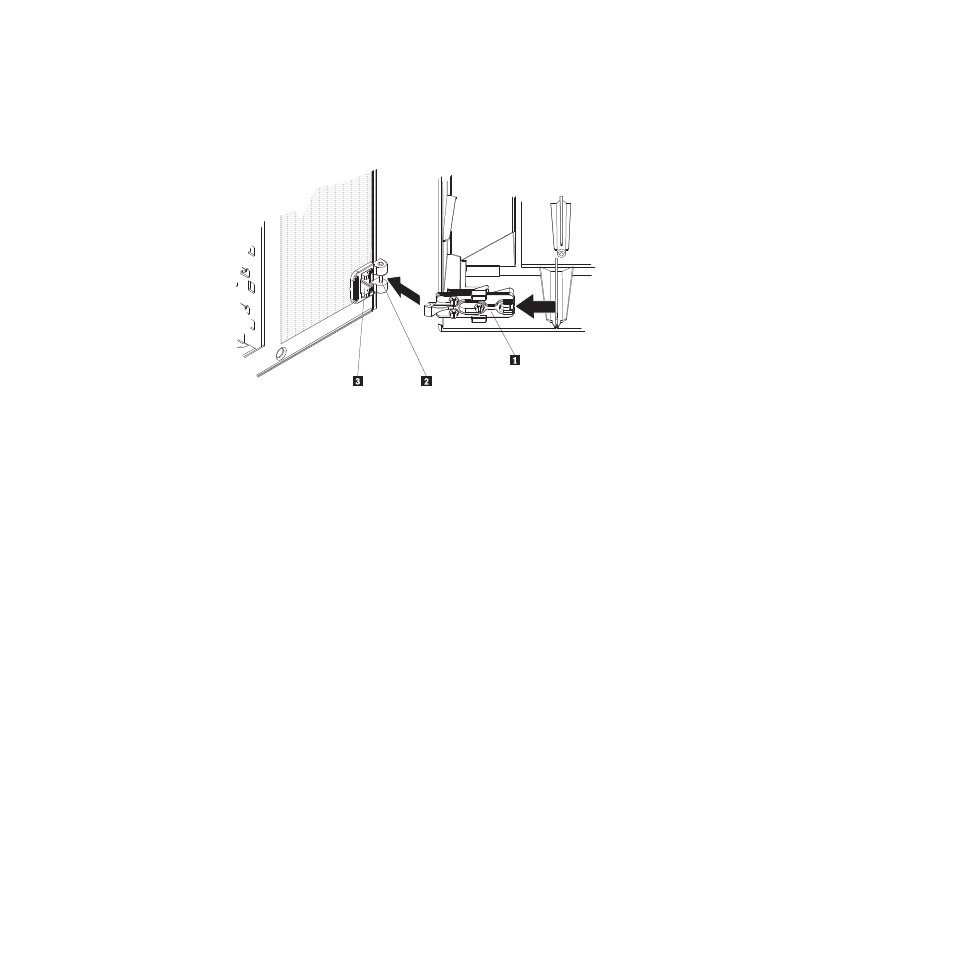

1 Sliding hinge mount
2 Hinge pin
3 Hinge assembly
b. Align the sliding hinge mount with the hinge pin on the hinge assembly on
the chassis.
c. Press the sliding hinge mount against the hinge pin until the sliding hinge
mount snaps onto the hinge pin.
4. Close the bezel.
Note: When you lock the server side cover, it locks both the cover and the
bezel.
Installing the air baffle
To replace the air baffle, do the following:
1. Align the air baffle pins with the holes on the fan cage and the pin hole on the
rear of the chassis.
