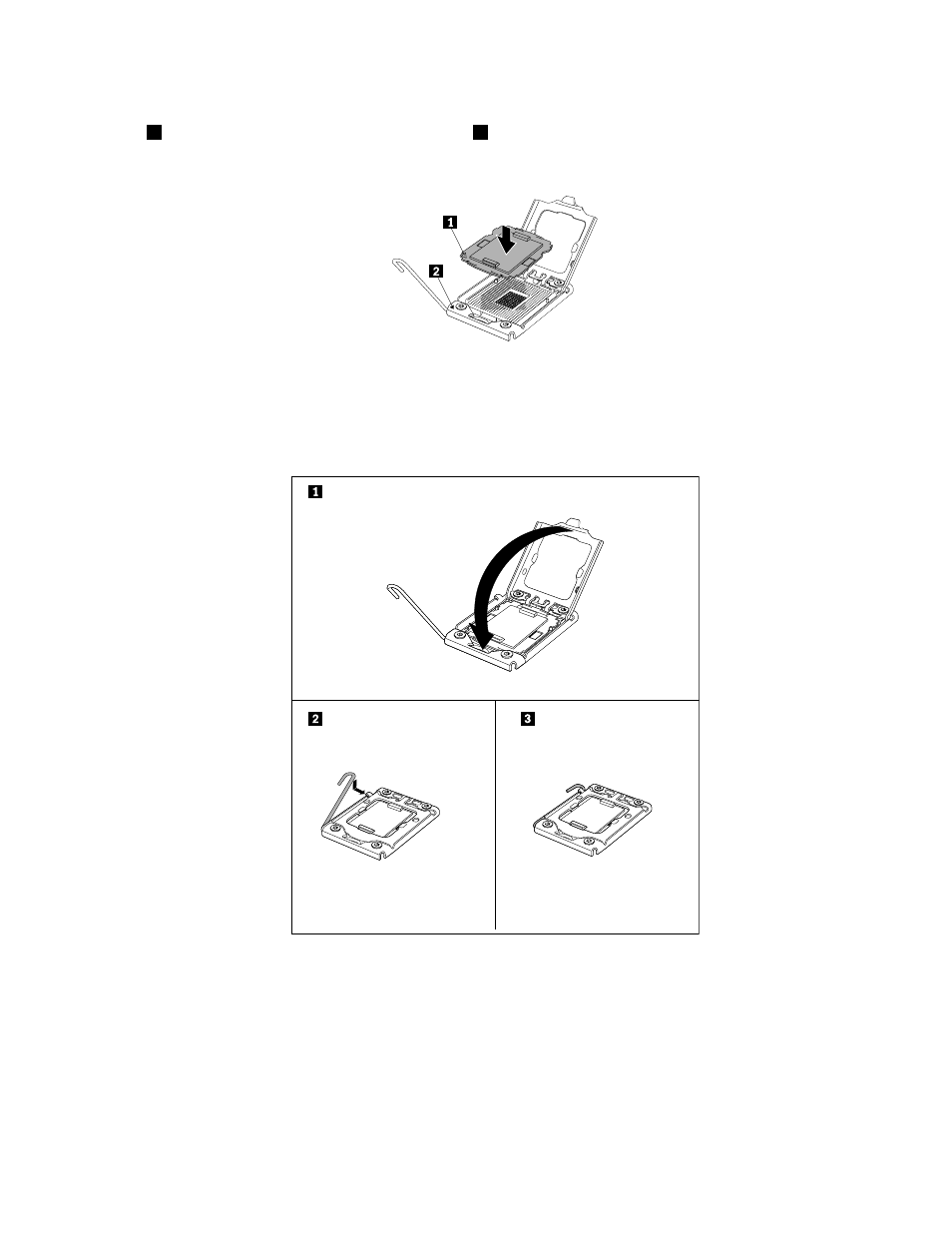

b. Position the microprocessor socket cover above the microprocessor socket so that the small triangle
1 on the socket cover faces the small triangle 2 on the microprocessor retainer. Then, carefully
press the socket cover straight down into the socket until it snaps into position.
Figure 143. Installing the microprocessor socket cover
c. Gently close the microprocessor retainer, press down the small handle, and then push the small
handle inward to lock the retainer into position.
Figure 144. Securing the microprocessor retainer
20. Install all parts that you have removed and connect all cables to the new system board. Refer to the
information that you have recorded and the related topics in Chapter 6 “Installing, removing, or replacing
hardware” on page 83.
21. If you are instructed to return the old system board, follow all packaging instructions and use any
packaging materials that are supplied to you for shipping.
