• Depending on the model, your server might look slightly different from the illustrations in this topic.
• Use any documentation that comes with the hot-swap hard disk drive and follow those instructions in
addition to the instructions in this topic.
To install or replace a hot-swap hard disk drive, do the following:
1. Use the front door key to unlock the front door, and then use the front door handle 1 to pivot the
front door to the open position.

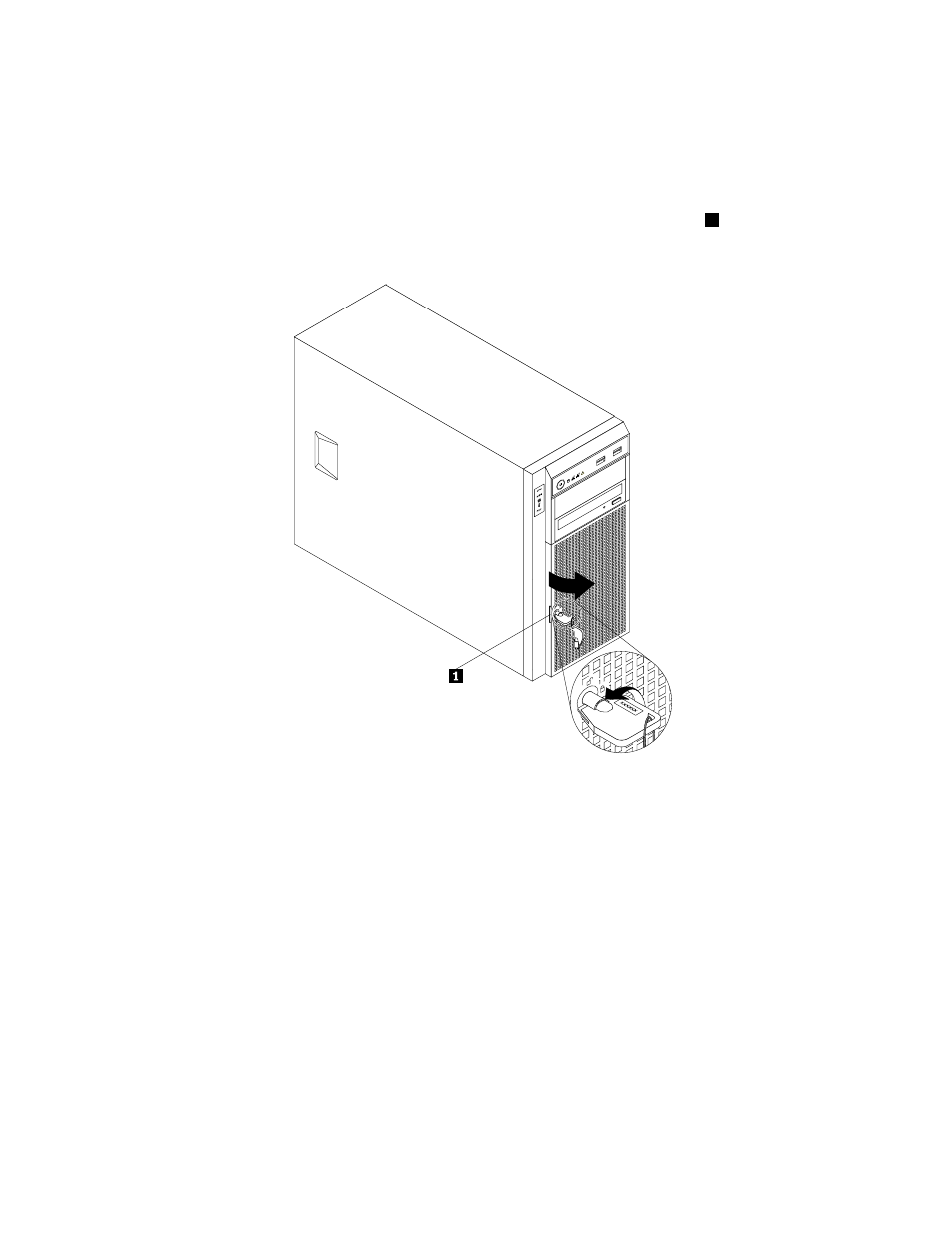

Figure 76. Opening the front door of the server
2. Locate the appropriate hard disk drive bay. See “Server components” on page 28.
