• If you are replacing an RDX drive, disconnect the signal cable and the power cable from the rear

of the RDX drive. Press the release button

1

in the direction as shown and push the RDX drive

from the rear until it is projected from the front of the chassis. Then, hold the RDX drive from the
front and completely slide it out of the chassis.

CPU

MEM

PSU

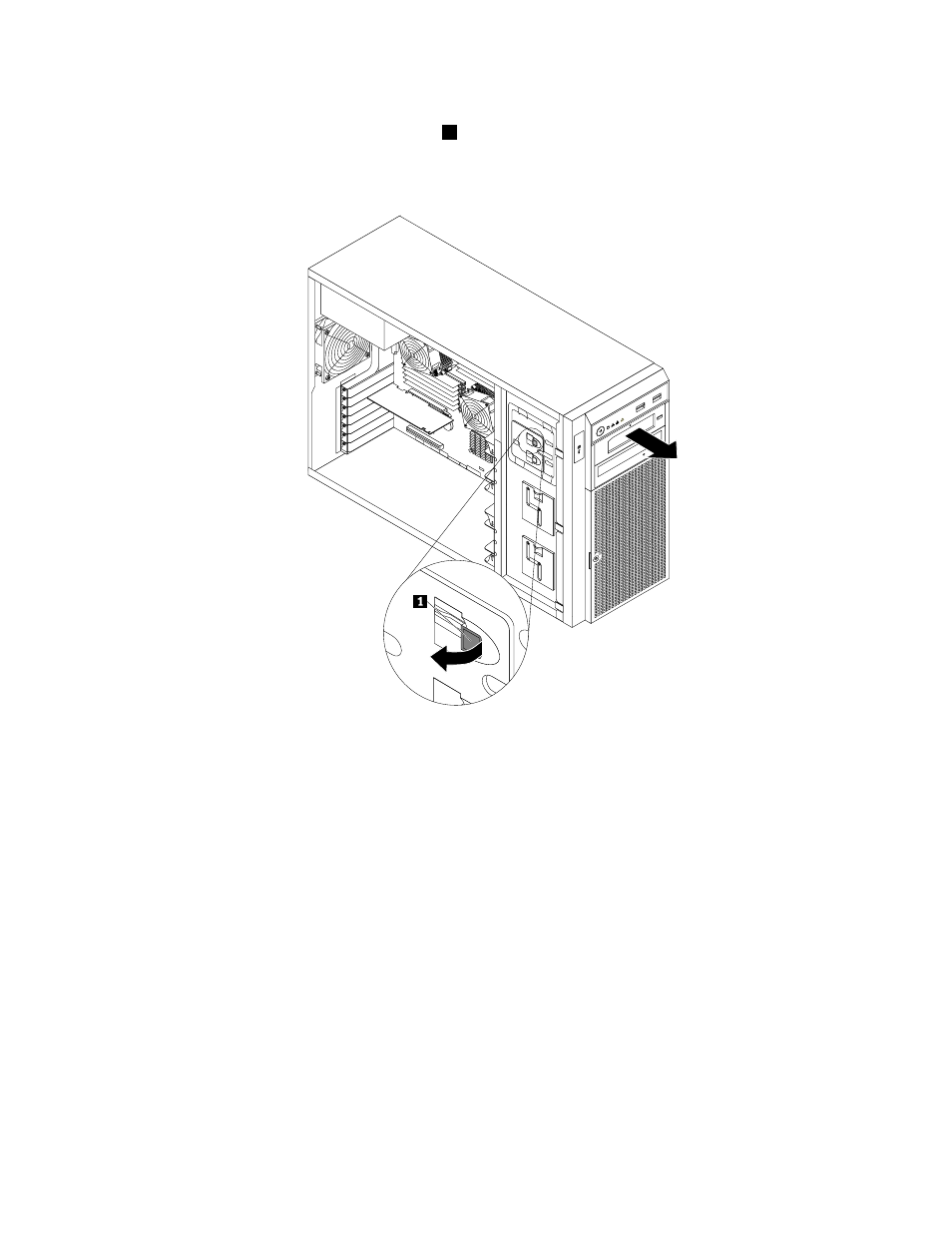

Figure 101. Removing the RDX drive

5. Touch the static-protective package that contains the new RDX drive to any unpainted surface on the

outside of the server. Then, take the new RDX drive and the signal cable out of the package.

160

ThinkServer TD340 User Guide and Hardware Maintenance Manual
