7. Insert two fingers into the holes in the two tabs on the front of the blue bracket. Then, press the tabs
towards each other and carefully slide the non-hot-swap hard disk drive out of the front of the chassis.

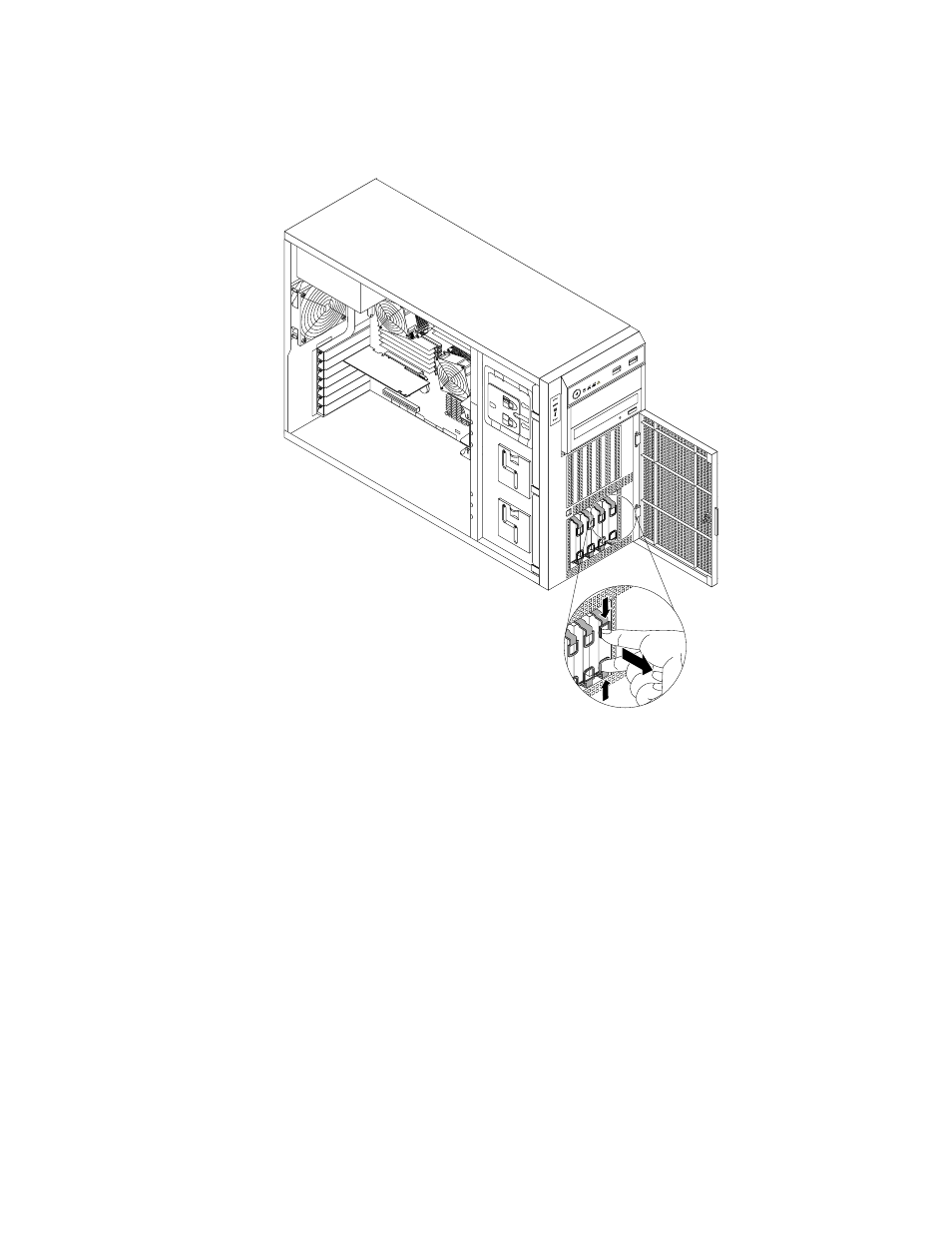

Figure 87. Sliding the non-hot-swap hard disk drive out of the bay
8. Flex the sides of the blue bracket to remove the non-hot-swap hard disk drive from the bracket. Save
the bracket for future use.
Note: Do not touch the circuit board on the hard disk drive.
9. Reinstall the front system fan 1. See “Replacing the front system fan 1” on page 188.
Chapter 6 . Installing, removing, or replacing hardware 147
