4. The non-hot-swap hard disk drives are installed in the lower hard-disk-drive cage and are protected
by an EMI-protective panel. Press the small tab 1 on the EMI-protective panel from the bottom, and
then pivot the EMI-protective panel upward to remove it from the chassis and gain access to the
non-hot-swap hard disk drives.

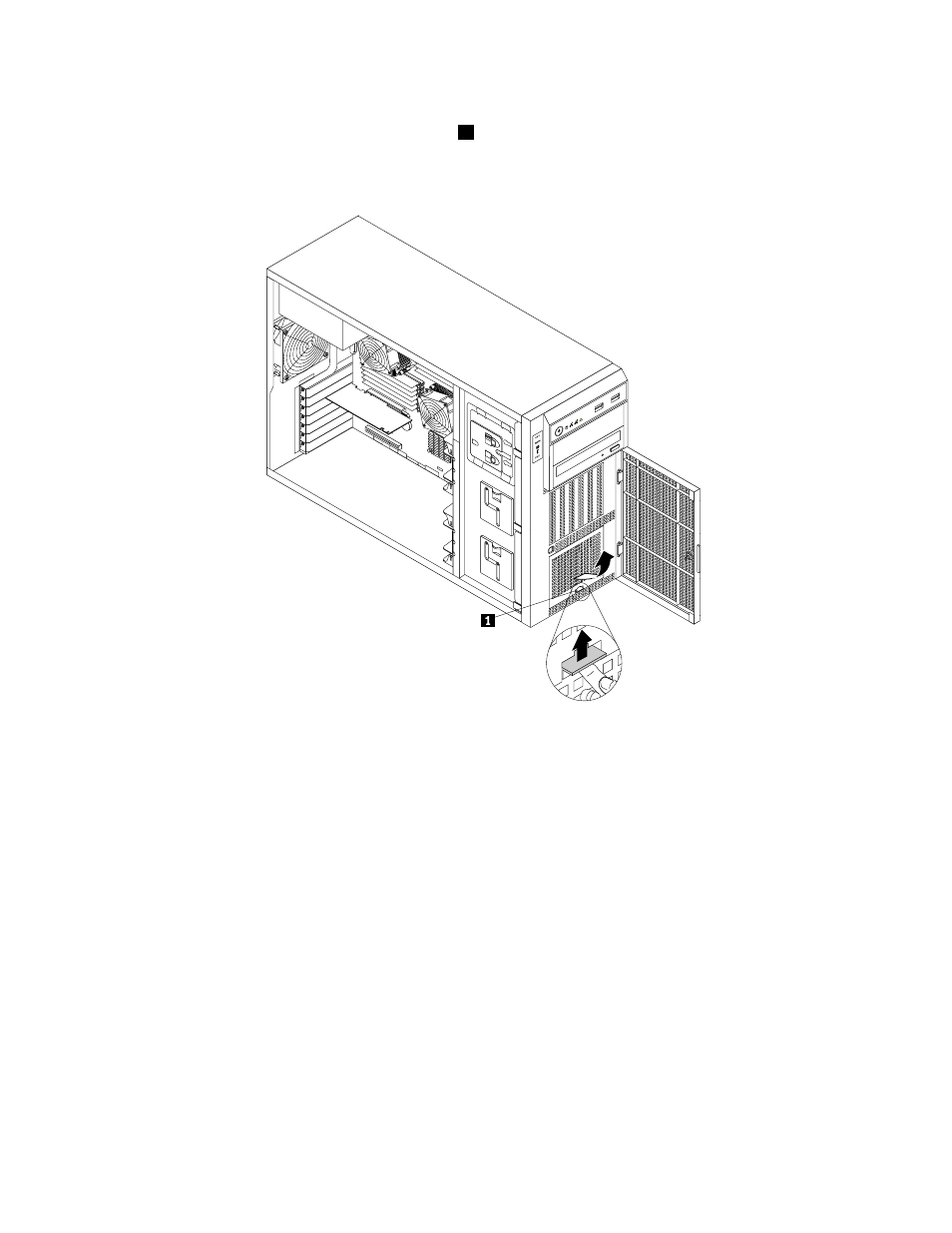

Figure 86. Removing the EMI-protective panel
5. Remove the front system fan 1. See “Replacing the front system fan 1” on page 188.
6. Locate the appropriate non-hot-swap hard disk drive. See “Server components” on page 28. Then,
disconnect the SATA signal cable and the power cable from the rear of the non-hot-swap hard disk drive.
