Section 61245211L1-5, Issue 1 61245211L1-5A 3
2. INSTALLATION
CAUTION
This equipment contains static-sensitive
components. Be sure to follow proper
electrostatic discharge procedures before
handling or installing the equipment.
The Single-Wide FT1 Repeater circuit pack is
shipped in a separate carton and must be installed in
an environmental apparatus case.
Remove the Single-Wide FT1 Repeater circuit pack
from the carton and visually ensure that damage has
not occurred during shipping or handling. If
damage has occurred, file a claim immediately with
the carrier, then contact ADTRAN customer service.
The Single-Wide FT1 Repeater circuit pack is
designed for installation in a pre-wired apparatus
case. These are described in Table B.
3. INSTALLATION OF SINGLE-WIDE FT1
REPEATERS IN ADTRAN APPARATUS
CASES
When installing the Single-Wide FT1 Repeater in an
ADTRAN apparatus case, refer to the ADTRAN
Installation/Maintenance practice for the apparatus
case being used.
CAUTION
The housing must be considered to be under
pressure and should be handled accordingly.
The Single-Wide FT1 Repeater dissipates a
maximum of 3 watts.
Table B. FT1 Repeater Apparatus Cases
ADTRAN
Part
FT1
Number Description Repeaters
1150027L1 ... 4-Slot, Dual T1 form, air ........ 4
1150027L2 ... 4-slot, Dual T1 form, gel ........ 4
1152010L3 ... 2-slot, Dual T1 form, gel ........ 2
1152010L4 ... 2-slot, Dual T1 form, air ......... 2
1150057L1 ... 4-slot, Universal, air ............... 4
1150057L2 ... 4-slot, Universal, gel ............... 4
1150058L1 ... 8-slot, Universal, air ............... 6
1150058L2 ... 8-slot, Universal, gel ............... 6
The connector pinout for the Single-Wide FT1
Repeater is shown in Figure 2.
Revision History
This is the first issue of this practice. In subsequent
issues, revisions will be summarized in this
paragraph.

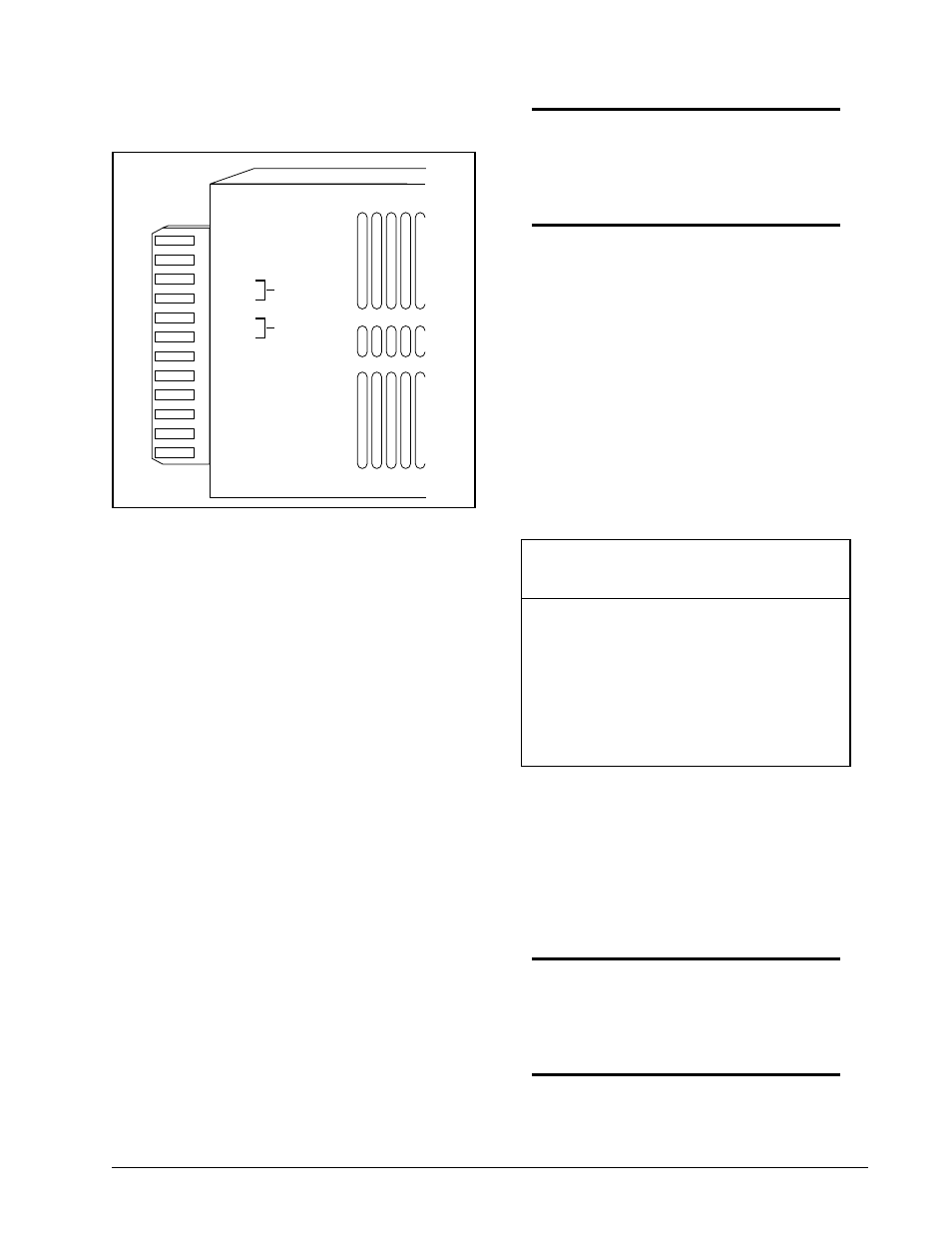

Figure 2. ADTRAN Single-Wide FT1 Repeater
Connector Pinout
1
2
3
4
5
6
7
8
9
10
11
12
GND
NC
T
R
T
R
NC
NC
NC
GND
NC
NC
CUSTOMER
LOOP 1
NETWORK
LOOP 1
