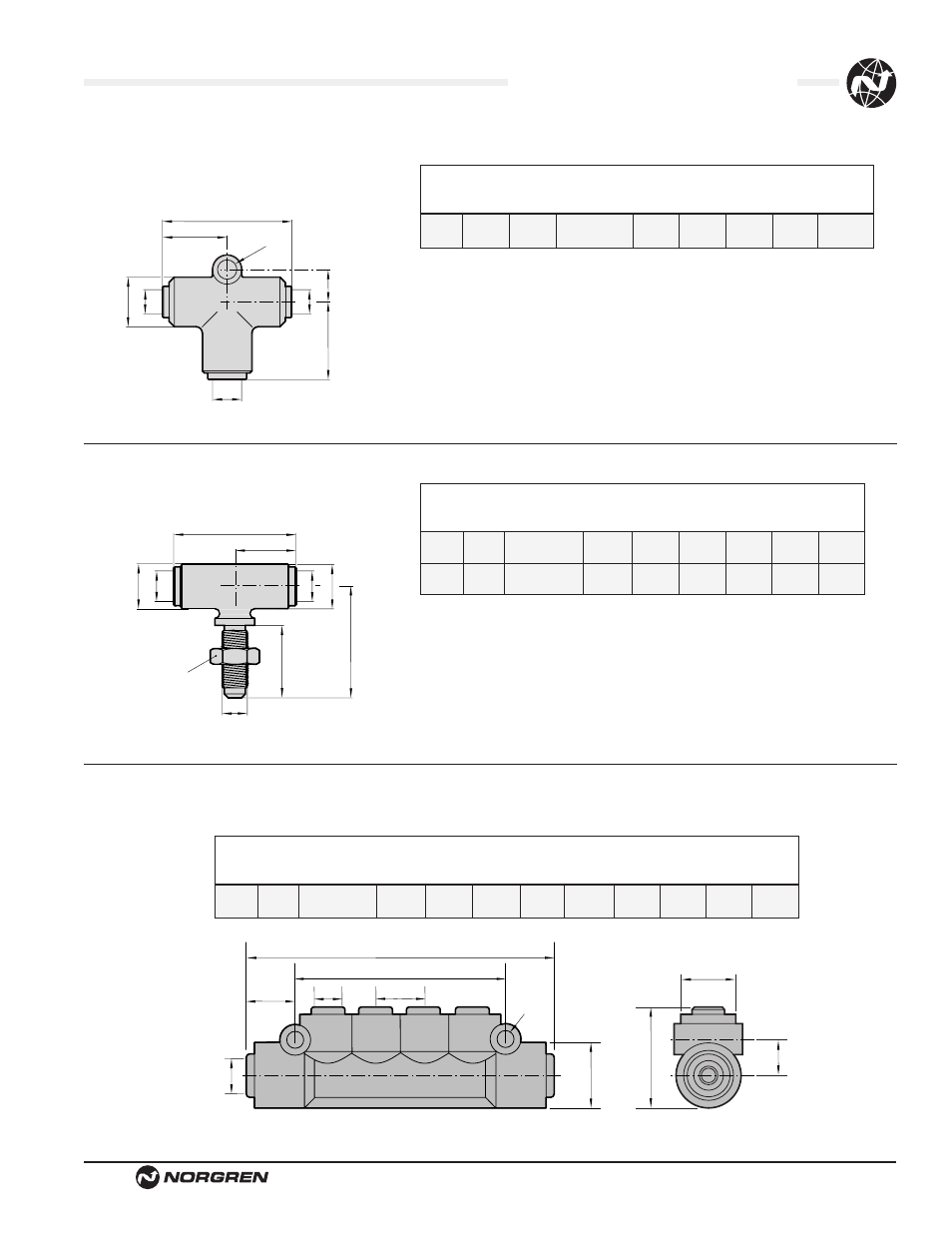

FleetFit Vehicle Push-In Fittings
Dimensions in Inches (mm)
Special Bulkhead Tees
UNF / SAE 45° flare
D
E
A C C
F
G
A
B
H
A
O/D B Product
Tube UNF Number ØC D E F G H A/F
3⁄8" 5⁄8" 94 4598 04
0.87 2.13 1.06 2.44 1.69
1-5⁄16"
(22.0) (54.0) (27.0) (62.0) (43.0)
3⁄8" 3⁄4" 94 4598 01
0.87 2.20 1.10 2.56 1.81
1-1⁄8"
(22.0) (56.0) (28.0) (65.0) (46.0)
Special Bracketed Reducing
Tee Connectors
E
F
H
A
G
B
A D
C
A B
O/D O/D Product
Tube Tube ØC Number ØD E F G H
3⁄8" 1⁄2"
0.35
94 4688 02
0.91 2.36 1.18 0.59 1.42
(9.0) (23.0) (60.0) (30.0) (15.0) (36.0)
L K
J
H
G
C
B
A E
D
F
6 Port Manifold*
A B
O/D O/D Product
Tube Tube Number C D E F G H J K L
1⁄4" 3/8" 94 8125 00
0.22 2.76 0.63 0.62 4.10 0.87 0.75 0.47 1.33
(5.7) (70.0) (16.0) (15.8) (103.0) (22.0) (19.0) (12.0) (33.8)
* Materials of construction: Thermoplastic body, with brass inserts and collets.
