Features

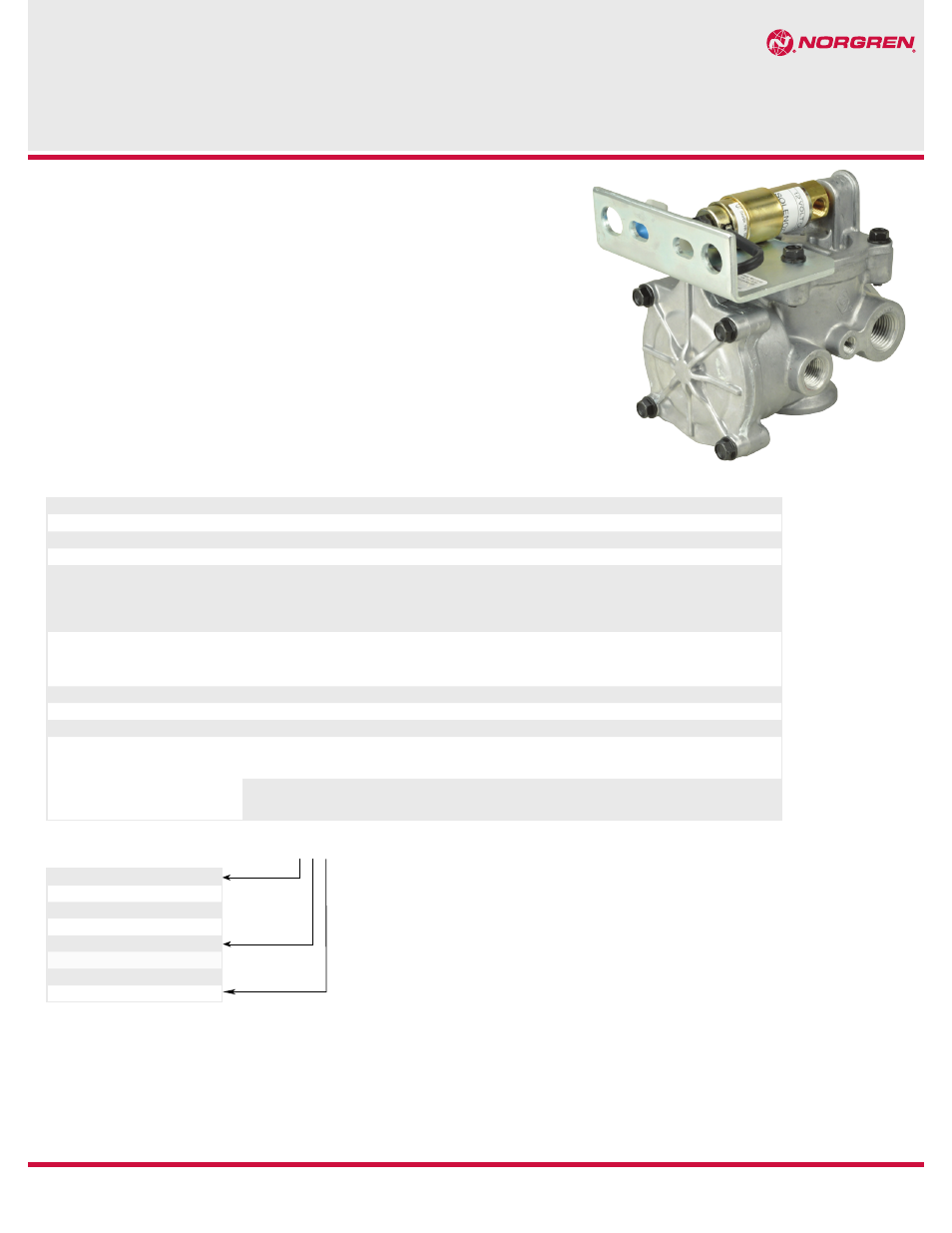

This chassis-mounted lift axle control module,
specifically designed for the heavy duty truck and
trailer industry, provides full pneumatic control.
The module includes two industry-proven brake-
style relay valves integrated into a single unit for
compactness and ease of installation. The module
provides excellent flow capability for rapid axle
actuation and is available with an optional control
solenoid for electric control. More robust than
commonly used spool valves that can suffer from
contamination and temperature extremes.
Performance
Application Provides rapid air control of lift axles.
Material Cast aluminum body with thermoplastic pistons and low temperature nitrile seals
Working Pressures Regulated pilot supply: 30 to 120 PSI System supply: 150 PSI MAX
Operating Temperature -40° (-40°C) to 190° F (87.7°C)
Ports 1) System supply
2) Two delivery to load bag
3) Two delivery to lift bag
4) Regulated supply
5) Gauge port
1/2-14 NPTF
1/2-14 NPTF
3/8-27 NPTF
1/8-27 NPTF
1/8-27 NPTF
Minimum Flow Orifices 1) Supply to lift delivery
2) Lift delivery to exhaust
3) Supply to load delivery
4) Load delivery to exhaust
.38"
.40"
.38"
.40"
Mounting Two M12 or 1/2" bolts on 3" spacing or M8 or 5/16" bolts on 1.5" spacing
Overall Dimensions 5 1/4" H x 6" L x 4 1/8" W
Weight 3.3 to 3.4 lbs (approximate)
Electrical Optional: Internal 12 volt solenoid valve with
Metri-pack 150 series 2 way
connector.
Specifications: Operating voltage 12 volt coil
resistance Current rating
— 9 to 16 volts DC
— 25.5 ohms at 68°F (20°C)
— 0.47 amps at 12 volts and 68°F (20°C)
Part Number 5040- H 1 1-01C
Valve Type Substitute
Air actuation 1
N/O solenoid 2
N/C solenoid 3
Check Valve Substitute
Check valve 1
Gage Port Substitute
“A” side gage port 1
Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
© Norgren GT Development Corporaton, 2014
Lift Axle Control Module
5040 Series
REV: 8/14 01
