P72F Smooth Start/Exhaust Valve
Littleton, CO USA Phone 303-794-2611 www.norgren.com ALE-17-7
All Dimensions in Inches (mm)
Technical Data
System air supply: Turn on system air supply prior to applying pilot signal to operator.
Failure to do so may cause valve to continuously exhaust.
Fluid: Compressed air
Maximum pressure solenoid operated:
Dependant on solenoid rating
[must not exceed 250 psig (17 bar)]
Maximum pressure pilot operated: 250 psig (17 bar) max.
Minimum operating pressure: 44 psig (3 bar)
Operating temperature solenoid operated:
Dependant on solenoid rating
[must be within range 0°* to 150°F (-20°* to 65°C)]
Operating temperature pilot operated:
0°* to 150°F (-20°* to 65°C)
* Air supply must be dry enough to avoid ice formation at temperatures below 35 ° F (2 ° C).
Air Pilot Port:
10-32 UNF with PTF main ports
M5 with ISO main ports
Exhaust Port:
1/4" PTF with PTF main ports
1/4" ISO Rc with ISO Rc main ports
1/4" ISO Rc with ISO G main ports
Maximum flow with 90 psig (6.3 bar) inlet pressure and pressure drop of 7 psig
(0.5 bar): 45 scfm (21 dm 3 /s) [P1 to P2 = Cv 1.59] [P2 to P3 = Cv 1.72]
Snap pressure:
Full flow when downstream pressure reaches 50 – 80% of inlet pressure
Charge time:
For 0.53 gallon US (2 liter) downstream volume and 90 psig (6.3 bar) inlet
pressure
Minimum 0.8 sec.
Typical maximum 99 sec.
Materials
Body: Zinc alloy
Elastomers: Synthetic materials
Filter discs: Sintered plastic
Internal components: Brass/steel

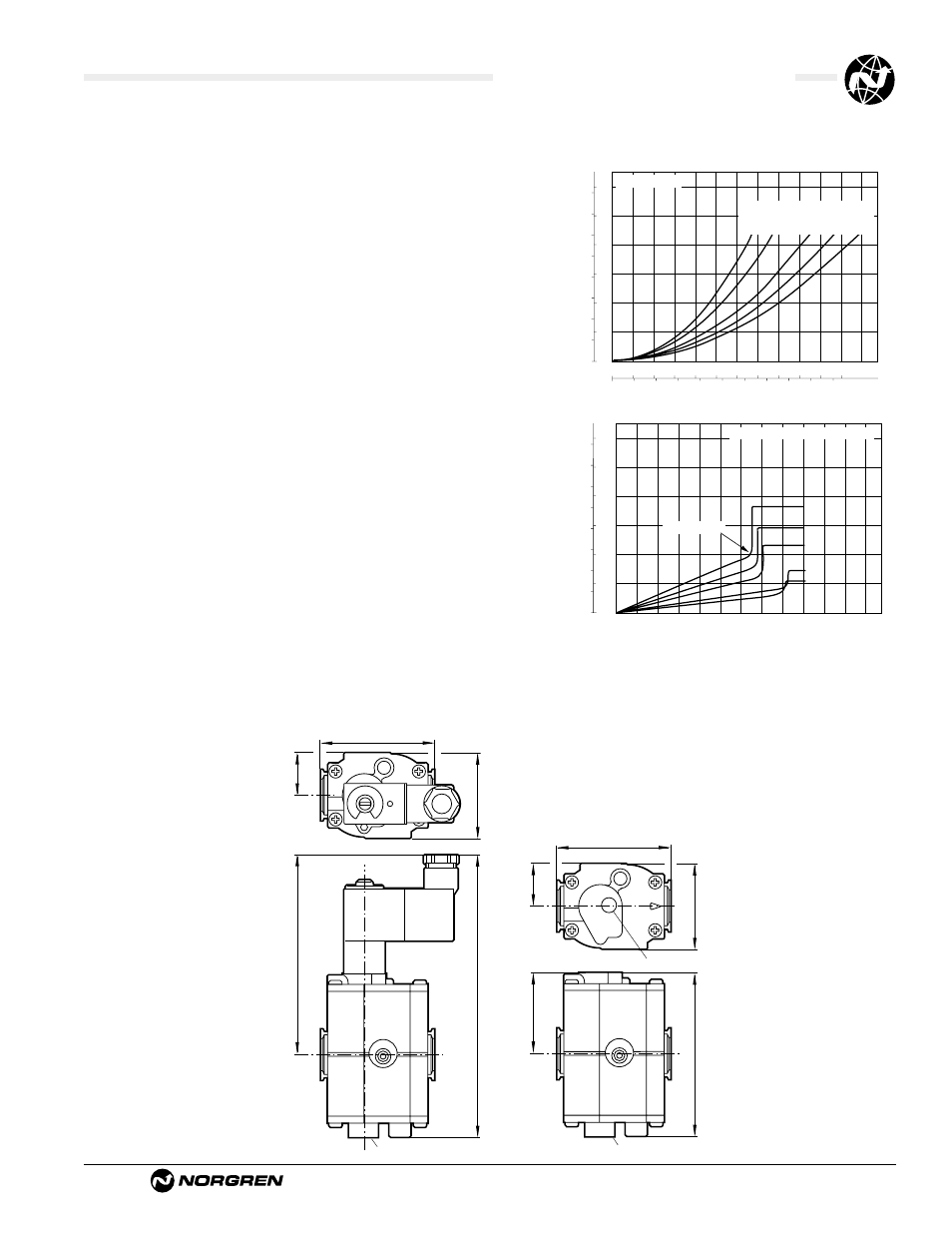

Typical Performance Characteristics
0.53 gal (2 liter) downstream volume
SNAP POINT
PERCENTAGE SNAP POINT
0 20 40 60 80 100 120
CHARGE TIME - (S)
OUTLET PRESSURE
16
12
8
4
0
bar g
200
160
120
80
40
0
psig
INLET PRESSURE: psig (bar g)
FLOW CHARACTERISTICS
0 5 10 15 20 25 dm 3 /s
0 10 20 30 40 50 60 scfm
PRESSURE DROP
0.8
0.6
0.4
0.2
0
bar d
10
8
6
4
2
0
psid
44
(3)
91
(6.3)
58
(4.0)
150
(10)
116
(8)
PORT SIZE: 1/4"
2.60 (66)
0.95 (24)
1.89 (48)
4.57 (116)
6.38 (162)
1/4" exhaust port
2.60 (66)
0.95 (24)
1.89 (48)
1.77 (45)
3.58 (91)
Pilot port
1/4" exhaust port
Solenoid operated
Air pilot operated
