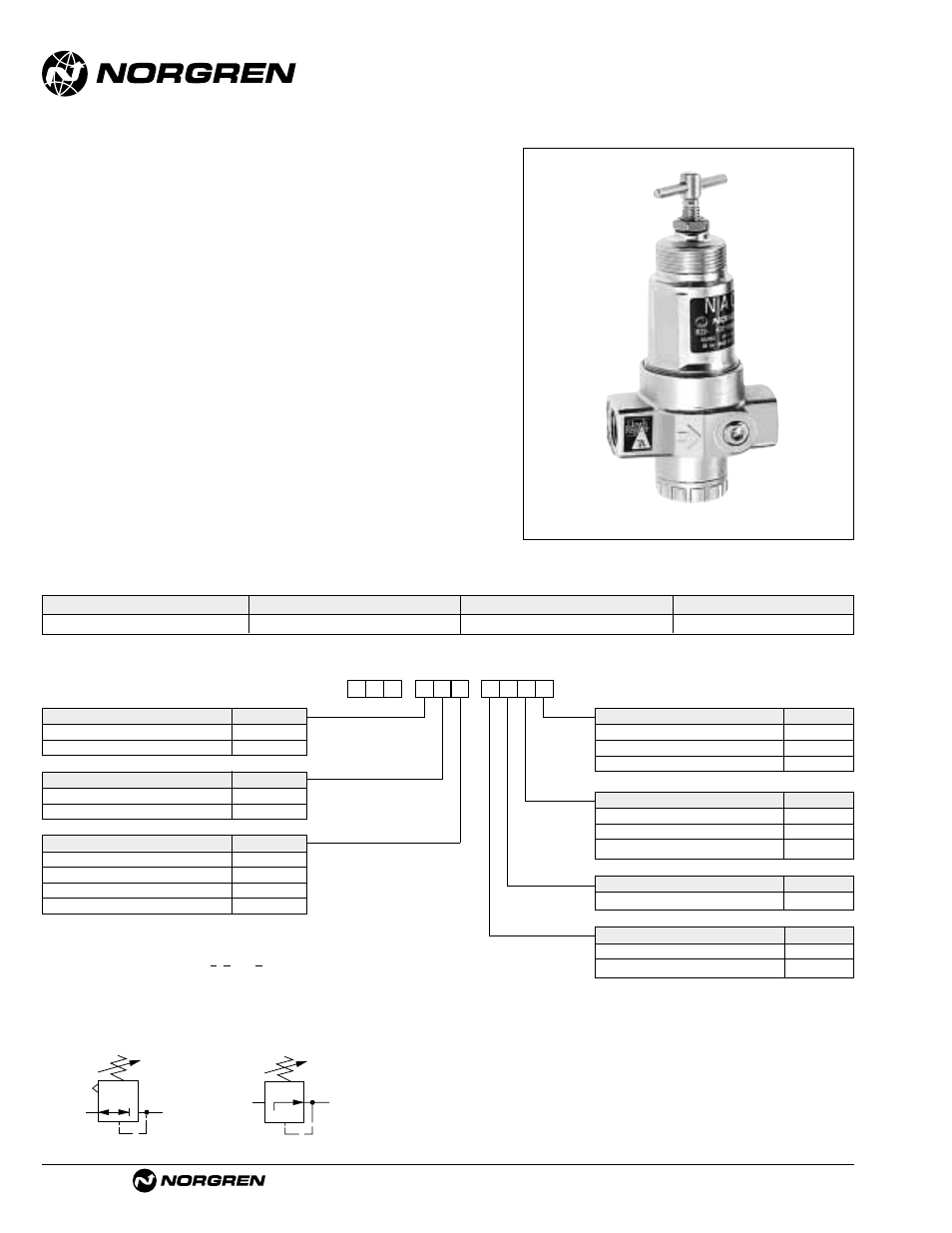

R22 stainless steel regulator 1/2 ptf

See Section ALE-24 for Accessories
ALE-16-6
Littleton, CO USA
Phone 303-794-2611
www.norgren.com
R22
●
Designed for use in corrosive environments
●
Metallic parts meet NACE Standard MR-01-75*
●
Compact instrument units with high performance
●
Stable regulation and temperature compensation
●
Excellent flow and regulation characteristics
* National Association of Corrosion Engineers (NACE) MR-01-75 defines requirements for
sulphide stress cracking resistant materials used in well-head and other corrosive environments.
R22 Stainless Steel Regulator
1/2 PTF
ISO Symbols
Relieving
Non Relieving
Alternative Models
Port Size
Substitute
1/2"
4
Special**
6
Option
Substitute
Standard
0
Oxygen degreased
1
Modification
Substitute
T-handle adjustment
1
Plastic handwheel
5
Viton plastic handwheel
6
Special plastic handwheel**
7
Threads
Substitute
PTF
A
ISO G
D
Special**
S
Port Size
Model Number
Flow
**
scfm (dm
3
/s)
Weight lbs (kg)
1/2 PTF
R22-401-RNMA
106 (50)
3.35 (1.52)
Ordering Information.
Models listed have T-handle adjustment, relieving diaphragm, 5 to 150 psig (0.4 to 10 bar) outlet pressure adjustment
range and PTF threads. A gauge is not included.
Outlet Pressure Adjustment Ranges* Substitute
5 to 150 psig (0.3 to 10 bar)
M
5 to 60 psig (0.3 to 4 bar)
F
10 to 250 psig (0.7 to 17 bar)
S
Gauges
Substitute
Without
N
2
2
R
★ ★ ★
★ ★ ★ ★
-
-
Diaphragm
Substitute
Relieving
R
Non relieving
N
*
Outlet pressure can be adjusted to pressures in excess of, and less than, those
specified. Do not use these units to control pressures outside of the specified ranges.
**
3/4" body (3/4 x 16 UNF) R22-6X7-XXXS
Please contact our technical service for details of non standard models including
maximum pressure stop, etc.
** Typical flow with 150 psig (10 bar) inlet pressure, 90 psig (6.3) set pressure, and a 15 psig (1 bar) droop from set.
