11/12 N/en/en 8.530.320.02 Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
B38
Flow rate
Outl
et pr
es
sur
e

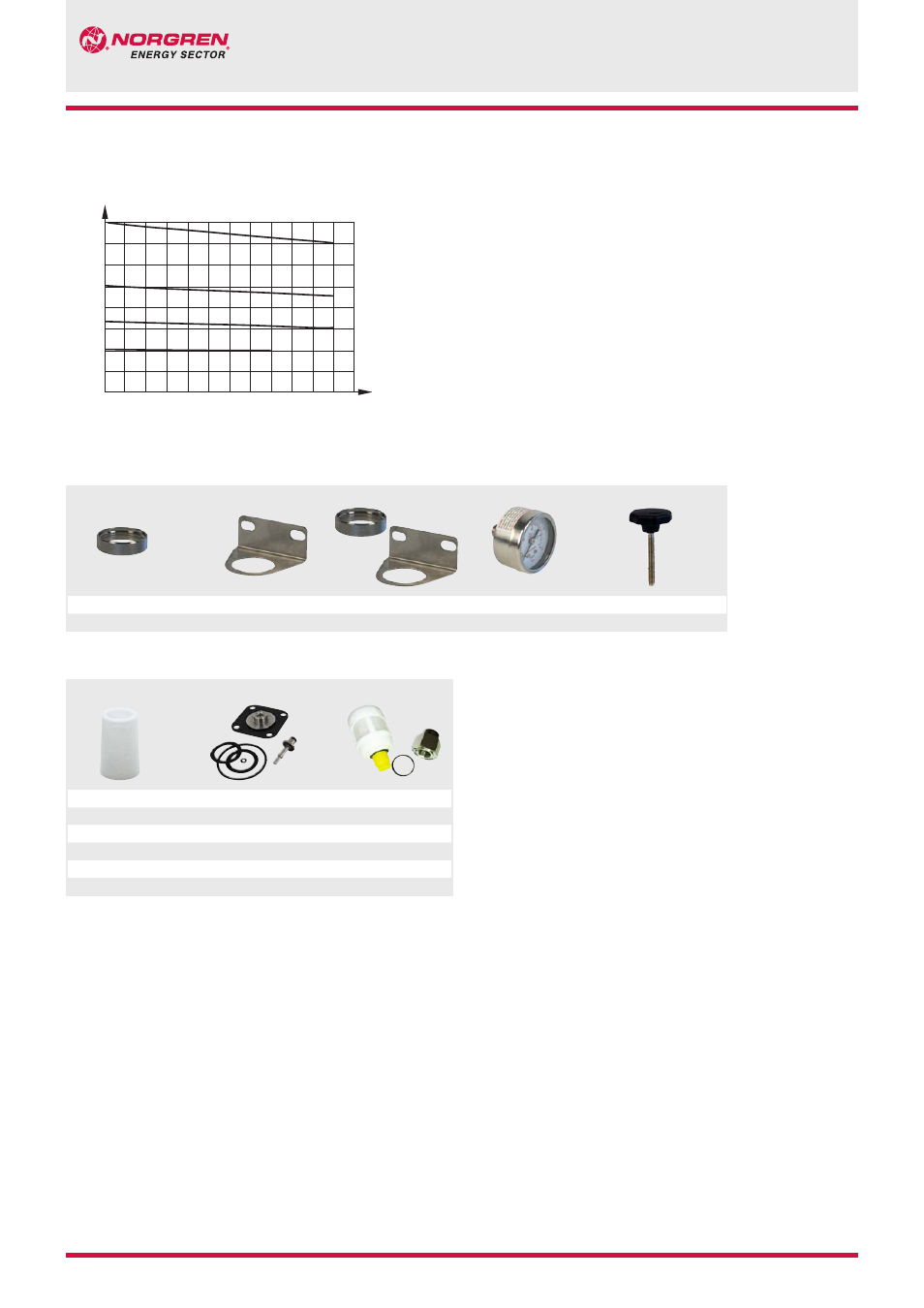

Flow characteristics
Inlet pressure: 7 bar, filter element: 25 μm, port size: 1/4 PTF
3
2
1
1 0 2 3 4 5 6 7 8 9 10 11 (dm 3 /s)
(bar)
Accessories
Sevice kits
Panel nut Neck mounting bracket Neck mounting bracket Gauge * Plastic adjusting knob
5988-02 5989-02 18-001-973 (includes panel nut) 18-013-913 (0 ... 6 bar) 74630-04
18-013-909 (0 ... 10 bar)
* Stainless steel items not strictly to NACE standard MR-01-75.
Filter element Valve assembly and diaphragm Drain kit
B38-100S(5) (5 µm element) 2 bar relieving R38-100R 3000-90 (automatic)
B38-100S(25) (25 µm element) 4 and 7 bar relieving R38-101R
10 bar relieving R38-102R
2 bar non-relieving R38-100NR
4 and 7 bar non-relieving R38-101NR
10 bar non-relieving
R38-102NR
