Technical features, B38-24˙-˙˙˙a option selector

background image

N/en/en 8.530.320.01

11/12

Our policy is one of continued research and development. We therefore reserve the right to amend,

without notice, the specifications given in this document.

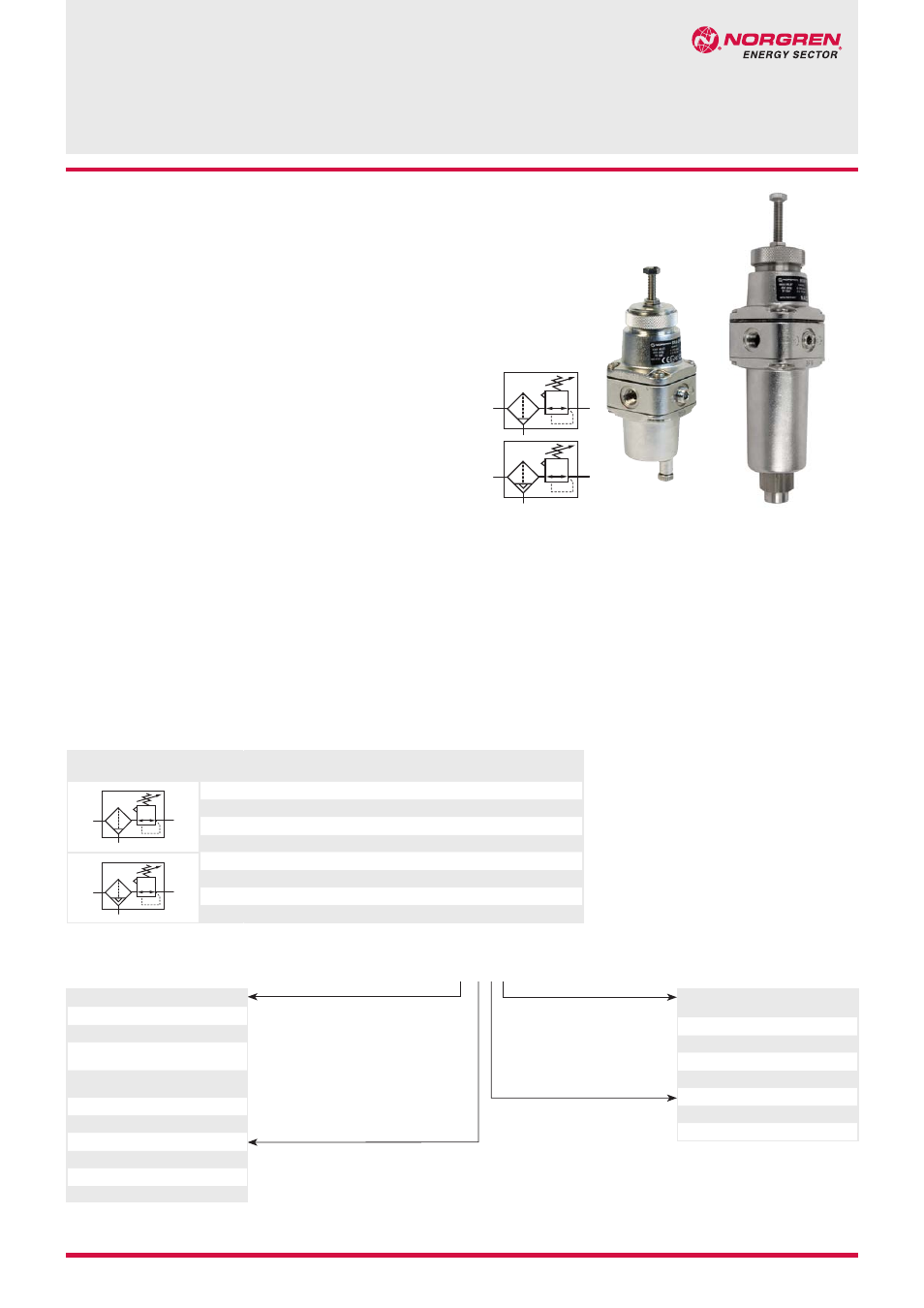

B38

Precision filter/regulator (stainless steel)

1/4 PTF

Designed for use in corrosive enviroments
Metallic parts meet NACE* Standard MR-01-75
Applications include marine enviroments,

oil and gas production, chemical and food

processing, medical analysis
Model for precision regulation and high flow

* National Association of Corrosion Engineers – recognised oil-field recommendation for

resistance to sulphide stress cracking common in well-head and other corrosive environments

Medium:
Compressed air only

Maximum inlet pressure:
31 bar (manual drain)
17 bar (246 psi)(autodrain)

Outlet pressure range:
0,04 ... 2 bar, 0,07 ... 4 bar
0,25 ... 7 bar, 0,4 ...10 bar
(0,58 ... 29 psi, 1 ... 58 psi
3,6 ... 101 psi, 5,8 ...145 psi)

Element:
5 or 25 μm

Port sizes:
1/4 PTF
1/4 PTF (gauge), 1/8 NPT (relief)
1/4 PTF (automatic drain)

Drain:
Manual or automatic
Automatic drain operation
conditions (float operated):
To close: > 0,3 bar (4,35 psi)

To open: < 0,2 bar (2,9 psi)
Minimum air flow required to
close 1 dm

3

/s

Fluid/Ambient temperature:
-40 ... +80°C (-40 ... +176°F)
Air supply must be dry enough
to avoid ice formation at
temperatures below +2°C(+35°F).

Technical features

Materials:
Body, bowl, bonnet & adjusting
screw: stainless steel
Filter element: High density
polyethylene (25 μm),
stainless steel (5 μm)
Elastomers: Synthetic rubber

Technical data, standard model, relieving and panel nut

Symbol

Port size Outlet

pressure (bar)

Element

(μm)

Flow *

(dm

3

/s)

Drain

Weight

(kg)

Model

1/4 PTF 0,25 ... 7

25

8

Manual

1,4

B38-244-B2KA

1/4 PTF 0,07 ... 4

25

8

Manual

1,4

B38-244-B2FA

1/4 PTF 0,07 ... 4

25

8

Automatic

1,6

B38-244-A2FA

* Typical flow with 7 bar inlet pressure, 1 bar set pressure and 0,05 bar drop from set.

B38-24˙-˙˙˙A

Option selector

Diaphragm & mounting

Substitute

Relieving

0

Non-relieving

1

Relieving with neck mounting

bracket

2

Non-relieving with neck mounting

bracket

3

Relieving with panel nut

4

Non-relieving with panel nut

5

Drain

Substitute

Automatic - long bowl

A

Manual - short bowl

B

Manual - long bowl

M

Outlet pressure adjustment

ranges (bar)*

Substitute

0,04 ... 2

C

0,07 ... 4

F

0,25 ... 7

K

0,4 ... 10

M

Element

Substitute

5 µm

1

25 µm

2

* Outlet pressure can be adjusted to

pressures in excess of, and less than,

those specified. Do not use these units

to control pressures outside of the

specified ranges.
