Norgren F22 Series Datasheets - Manual

See Section ALE-24 for Accessories
ALE-16-2 Littleton, CO USA Phone 303-794-2611 www.norgren.com

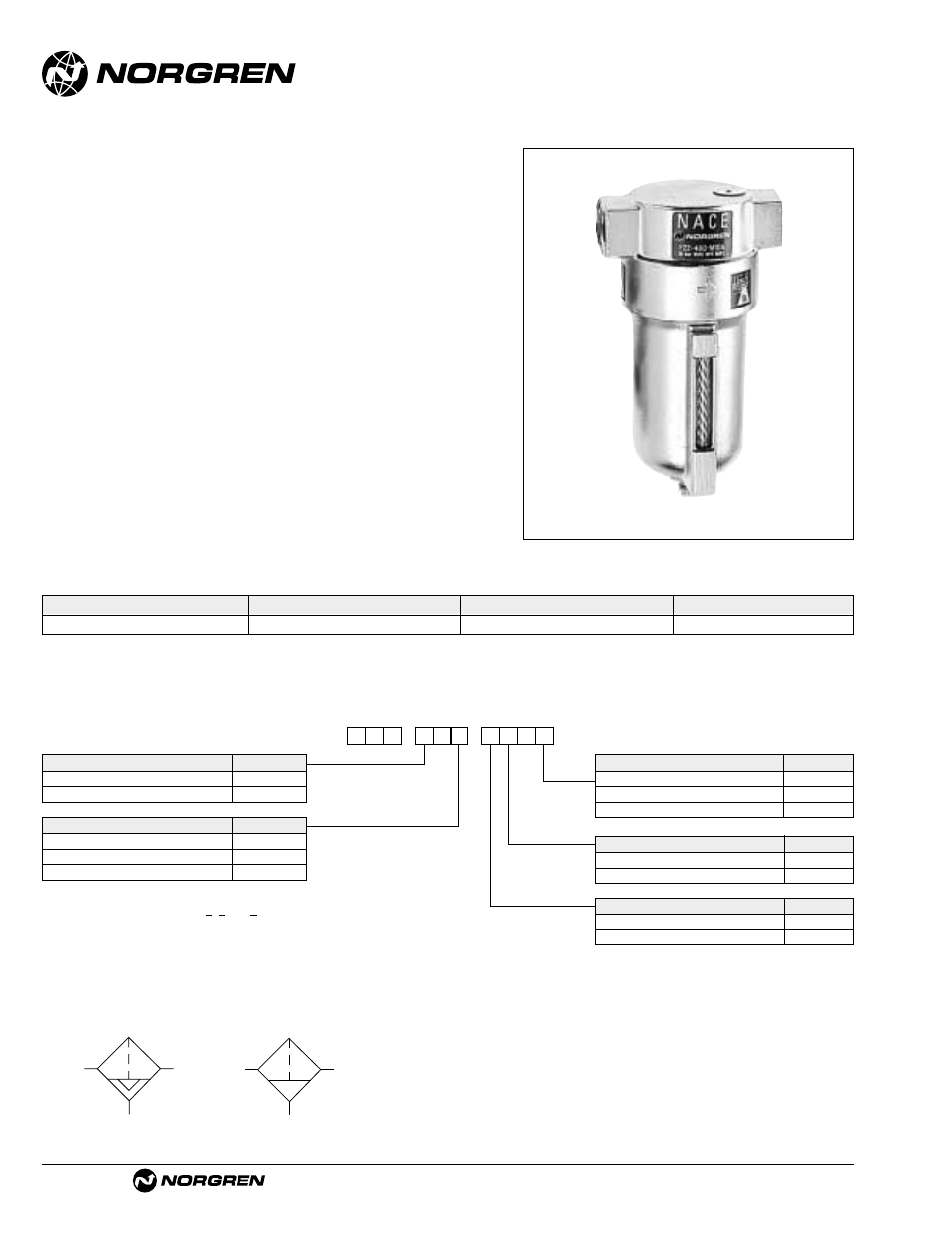

F22
● Designed for use in corrosive environments
● Metallic parts meet NACE † Standard MR-01-75 *
● Provides effective liquid removal and positive solid
filtration
● Large filter element area for minimum pressure drop
● Automatic Drain is operated by liquid level and also
opens upon depressurization
● Meets certain requirements of Military
Specifications**
* National Association of Corrosion Engineers (NACE) MR-01-75 defines requirements for
sulphide stress cracking resistant materials used in well-head and other corrosive environments.
** Meets certain requirements of MIL-S-901C (Navy) 15 Jan 1963: Military Specifications Shock
Test H.I. (High Impact); Shipboard Machinery, Equipment and Systems and MIL-STD-167-1
(Ships) Military Standard Mechanical Vibrations of Shipboard Equipment.
Stainless Steel Filter
1/2 PTF
ISO Symbols
Automatic Drain Manual Drain
Alternative Models
Port Size Substitute
1/2" 4
Special 6**
Modification Substitute
1/8" thread auto-drain fitting 0
1/4" thread auto-drain fitting 5
Special 7**
Port Size Model Number Flow† scfm (dm 3 /s) Weight lbs (kg)
1/2 PTF F22-405-A2DA 98 (46) 4.18 (1.88)
Ordering Information. Model listed has PTF threads, automatic drain and 25 µm element.
Thread Substitute
PTF A
ISO G D
Special S**
2 2 F ★ 0 ★ ★ ★ D ★ - -
Element Substitute
5 µm 1
25 µm 2
Drain Substitute
Automatic A
Manual M
** 3/4" body (3/4 x 16 UNF) F22-6X7-XXXS
Please contact our technical service for details of non standard models.
† Typical flow with 25 µm element at 90 psig (6.3 bar) inlet pressure, and 5 psig (0.35 bar) pressure drop.
