XSz 8 ... XSz 50

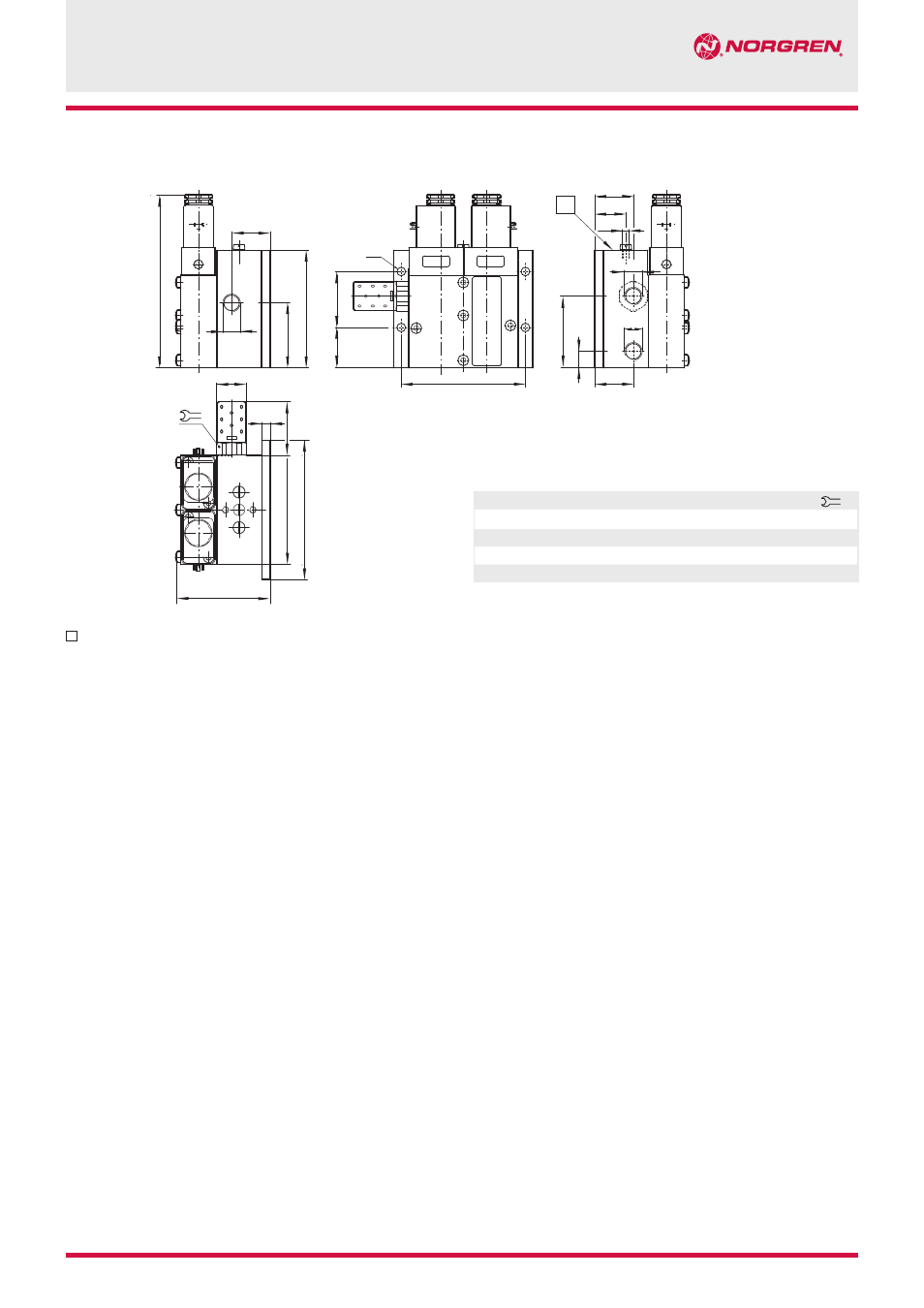

XSz 8 - with silencer
~ 127
28,5
A
86
47,5
6
S
80
102
~ 69
ø 6,3
41
29,5
91
23
M5
52,5
R
P
12
28,5
2
3
1
X
øT
1
Model 1 (P) 2 (A) 3 (R) S øT X
24928063052 G 1/4 G 1/4 G 1/4 42 21 - 21
24928053052 1/4 – 18 NPT 1/4 – 18 NPT 1/4 – 18 NPT 42 21 - 21
24928083052 G 1/4 G 1/4 G 3/8 75 32 26,5 32
24928073052 1/4 – 18 NPT 1/4 – 18 NPT 3/8 – 18 NPT 75 32 26,5 32
1 Flange surface for pressure switch and failure indicator unit
