M/50/EAP & M/50/EAN
Warning
These products are intended for use in industrial control systems only.
Do not use these products where values can exceed those listed under
‘Technical Features/Data’.
Before using these products for non-industrial applications, life-
support systems, or other applications not within published specifica-
tions, consult NORGREN.
Through misuse, age, or malfunction, components used in control
systems can fail in various modes.
The system designer is warned to consider the failure modes of all component parts used in control systems and to provide adequate
safeguards to prevent personal injury or damage to equipment in the
event of such failure.
System designers must provide a warning to end users in the system
instructional manual if protection against a failure mode cannot be
adequately provided.
System designers and end users are cautioned to review specific
warnings found in instruction sheets packed and shipped with these
products.
1 Fixing screw
2 Color code
BK = black
BN = brown
BU = blue
3 Plug M8 x 1
4 Plug M12 x 1
M/50/EAP/CP, M/50/EAN/CP
M/50/EAP/CC
5,1
ø 6,4
A
B
A-B
42 ±4 L
30
+30
1
1,5
2
5,1
ø 6,4
30
300 ±15
1 BN 3 BU
4 BK
X
A
X
B
A-B
31,5 ... 36 1
3
1,5
5,1
ø 6,4
30 47,5
300 ±15
X
A
X
A-B
1
1,5
4
1 BN
3 BU 4 BK

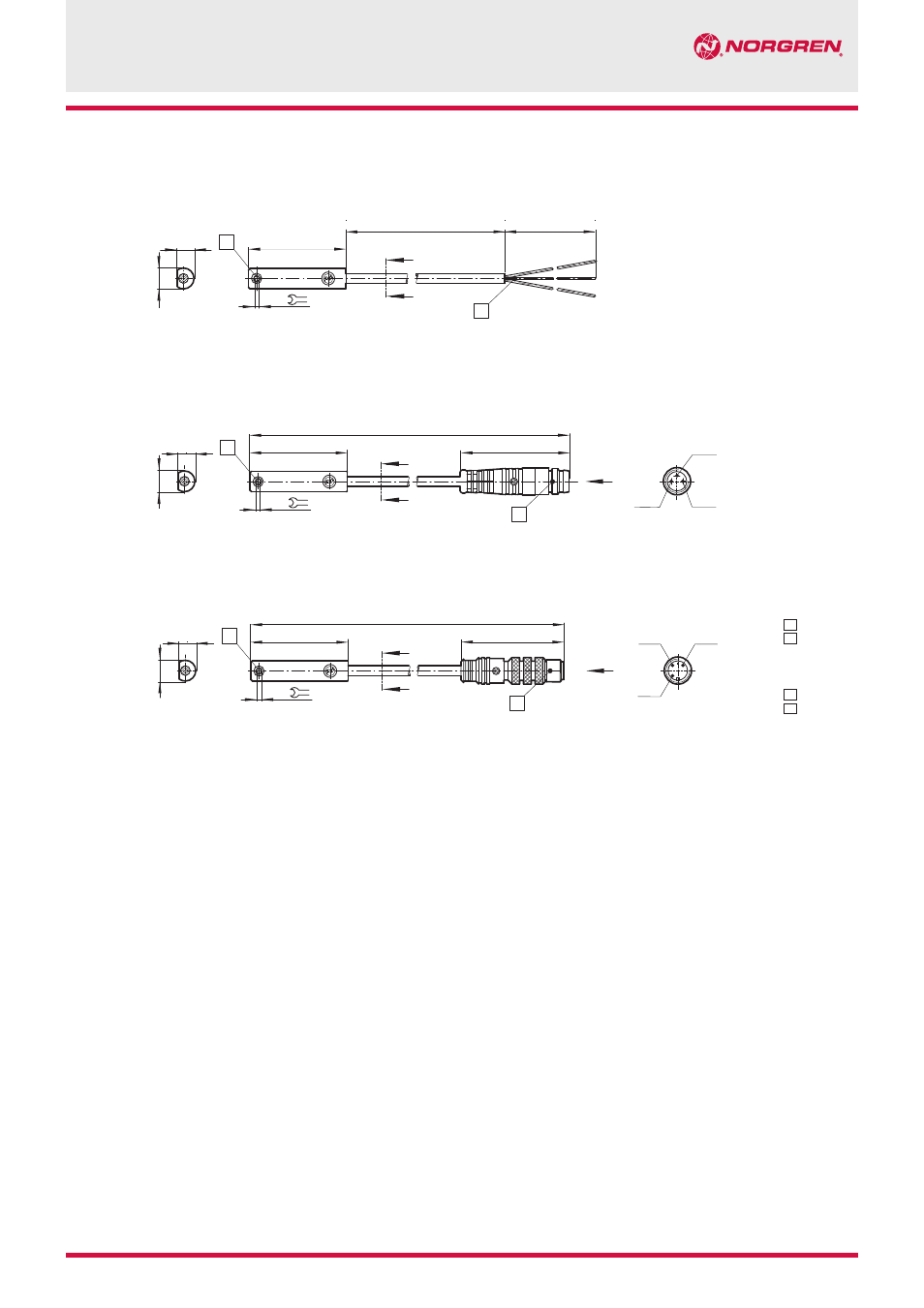

Dimensions
M/50/EAP/*V, M/50/EAN/*V
Cable length L = 2, 5 or 10 m
