NEN Series NFPA Aluminum Cylinders
1/08 N/US 1.5.507.2 Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
www.norgren.com

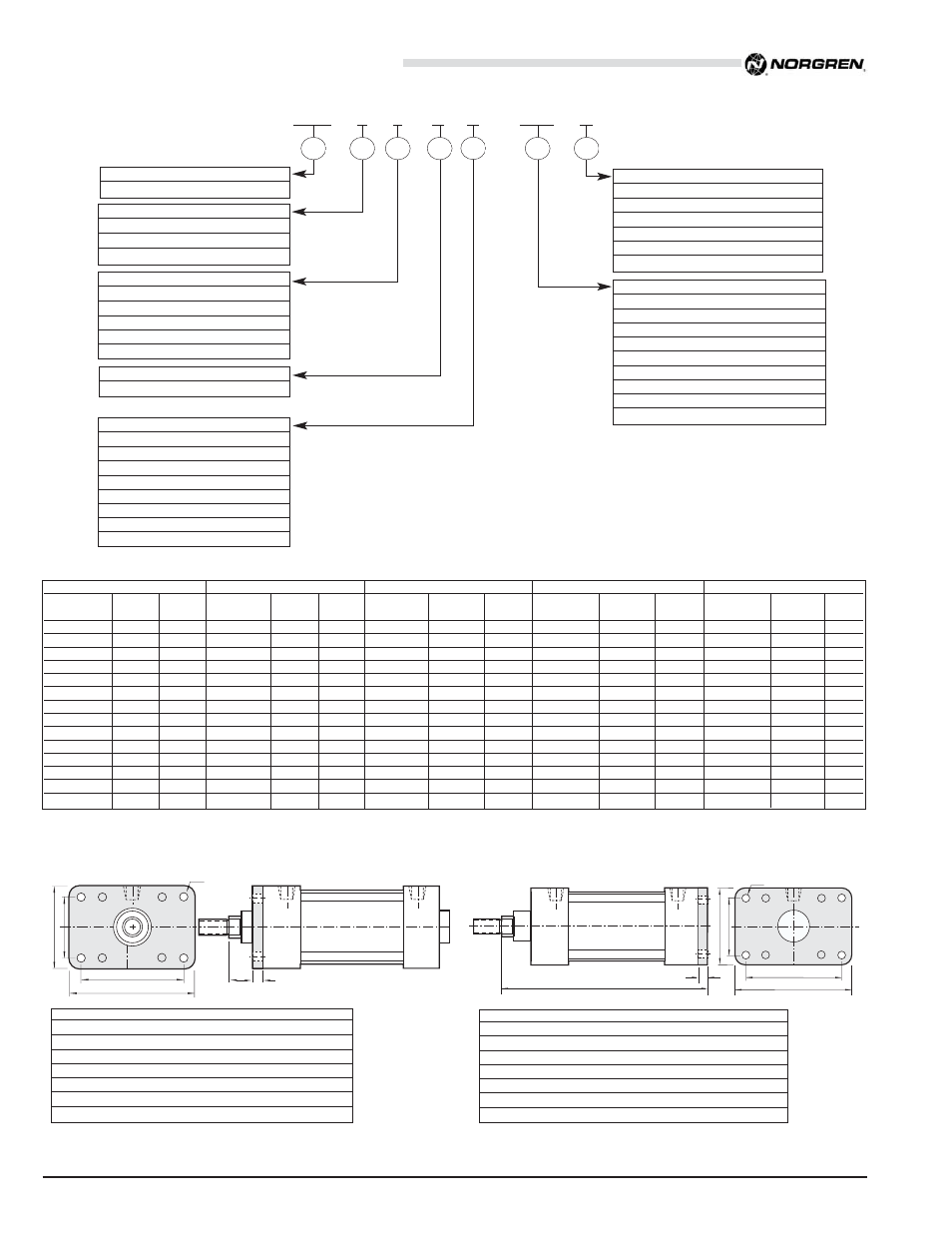

Cylinder Order Information
Stock Stroke Cylinders
Series
NEN Additional Options
Viton® Seals
V
Rod Extension RX
Non-standard piston rod thread T
Piston Rod thread extension TX
Stainless steel piston rod S
Stainless steel tie rods SS
Piston Rod Threads
Small Male (Solid) (std)
1
Intermediate Thread Male (Solid) 2
Female 3
Bore Single rod
1-1/2" C
2.0" D
2-1/2" E
3-1/4" F
4.0" G
Stroke (whole inches)
All bores
48" max.*
Mounting Options**
MS4 (standard)
blank
Head Rectangular Flange MF1
Cap Rectangular Flange MF2
Detachable Cap Clevis MP2
Cap Fixed Clevis MP1
Tie Rod Extended both ends MX1
Tie Rod Extended Cap MX2
Tie Rod Extended Head MX3
Side Lug Mount MS2
** For factory installed mounts specify mounting option in
position 6. If no mount required leave position 6 blank.
Mounting kits can be ordered separately
Contact factory for mounting kits, or visit www.norgren.com
Fraction of Stroke length
0
Blank
0.125" C
0.250 E
0.375 G
0.500 J
0.625 M
0.750 P
0.875 S
1 2 3 4 5 6 7
NEN 1 C x 4 E – – MP1 V
* Conatact factory for strokes longer than 48".
1-1/2" Bore 2.0" Bore 2-1/2" Bore 3-1/4" Bore 4.0" Bore
Model Cylinder Stroke Model Cylinder Stroke Model Cylinder Stroke Model Cylinder Stroke Model Cylinder Stroke
Number Bore Number Bore Number Bore Number Bore Number Bore
NEN1C x 1 1-1/2 1.00 NEN1D x 1 2 1.00 NEN1E x 1 2-1/2 1.00 NEN1F x 1 3-1/4 1.00 NEN1G x 1 4 1.00
NEN1C x 2 1-1/2 2.00 NEN1D x 2 2 2.00 NEN1E x 2 2 1/2 2.00 NEN1F x 2 3-1/4 2.00 NEN1G x 2 4 2.00
NEN1C x 3 1-1/2 3.00 NEN1D x 3 2 3.00 NEN1E x 3 2 1/2 3.00 NEN1F x 3 3-1/4 3.00 NEN1G x 3 4 3.00
NEN1C x 4 1-1/2 4.00 NEN1D x 4 2 4.00 NEN1E x 4 2 1/2 4.00 NEN1F x 4 3-1/4 4.00 NEN1G x 4 4 4.00
NEN1C x 5 1-1/2 5.00 NEN1D x 5 2 5.00 NEN1E x 5 2 1/2 5.00 NEN1F x 5 3-1/4 5.00 NEN1G x 5 4 5.00
NEN1C x 6 1-1/2 6.00 NEN1D x 6 2 6.00 NEN1E x 6 2 1/2 6.00 NEN1F x 6 3-1/4 6.00 NEN1G x 6 4 6.00
NEN1C x 8 1-1/2 8.00 NEN1D x 8 2 8.00 NEN1E x 8 2 1/2 8.00 NEN1F x 8 3-1/4 8.00 NEN1G x 8 4 8.00
NEN1C x 10 1-1/2 10.00 NEN1D x 10 2 10.00 NEN1E x 10 2 1/2 10.00 NEN1F x 10 3-1/4 10.00 NEN1G x 10 4 10.00
NEN1C x 12 1-1/2 12.00 NEN1D x 12 2 12.00 NEN1E x 12 2 1/2 12.00 NEN1F x 12 3-1/4 12.00 NEN1G x 12 4 12.00
NEN1C x 14 1-1/2 14.00 NEN1D x 14 2 14.00 NEN1E x 14 2 1/2 14.00 NEN1F x 14 3-1/4 14.00 NEN1G x 14 4 14.00
NEN1C x 16 1-1/2 16.00 NEN1D x 16 2 16.00 NEN1E x 16 2 1/2 16.00 NEN1F x 16 3-1/4 16.00 NEN1G x 16 4 16.00
NEN1C x 18 1-1/2 18.00 NEN1D x 18 2 18.00 NEN1E x 18 2 1/2 18.00 NEN1F x 18 3-1/4 18.00 NEN1G x 18 4 18.00
NEN1C x 20 1-1/2 20.00 NEN1D x 20 2 20.00 NEN1E x 20 2 1/2 20.00 NEN1F x 20 3-1/4 20.00 NEN1G x 20 4 20.00
N/A - 24.00 NEN1D x 24 2 24.00 NEN1E x 24 2 1/2 24.00 NEN1F x 24 3-1/4 24.00 NEN1G x 24 4 24.00
Bore 1-1/2" 2" 2-1/2" 3-1/4" 4"
E 2.000 2.500 3.000 3.750 4.500
F .375 .375 .375 .625 .625
FB .313 .375 .375 .438 .438
R 1.428 1.838 2.192 2.758 3.323
TF 2.750 3.375 3.875 4.688 5.438
UF 3.375 4.125 4.625 5.500 6.250
W .625 .625 .625 .750 .750
R E
TF
UF
F W
FB Holes (4)
NFPA (MF1) 03 Head Rectangular Flange Mount
Bore 1-1/2" 2" 2-1/2" 3-1/4" 4"
E 2.000 2.500 3.000 3.750 4.500
F .375 .375 .375 .625 .625
FB .313 .375 .375 .438 .438
R 1.428 1.838 2.192 2.758 3.323
TF 2.750 3.375 3.875 4.687 5.438
UF 3.375 4.125 4.625 5.500 6.250
ZF 5.000 5.000 5.125 6.250 6.250
F
R E
TF
FB Holes (4)
ZF + Stroke UF
NFPA (MF2) 04 Cap Rectangular Flange Mount
All dimensions ± .015 unless otherwise noted. All dimensions ± .015 unless otherwise noted.
All Dimensions in Inches (mm)
