2-19
Hardware Setup

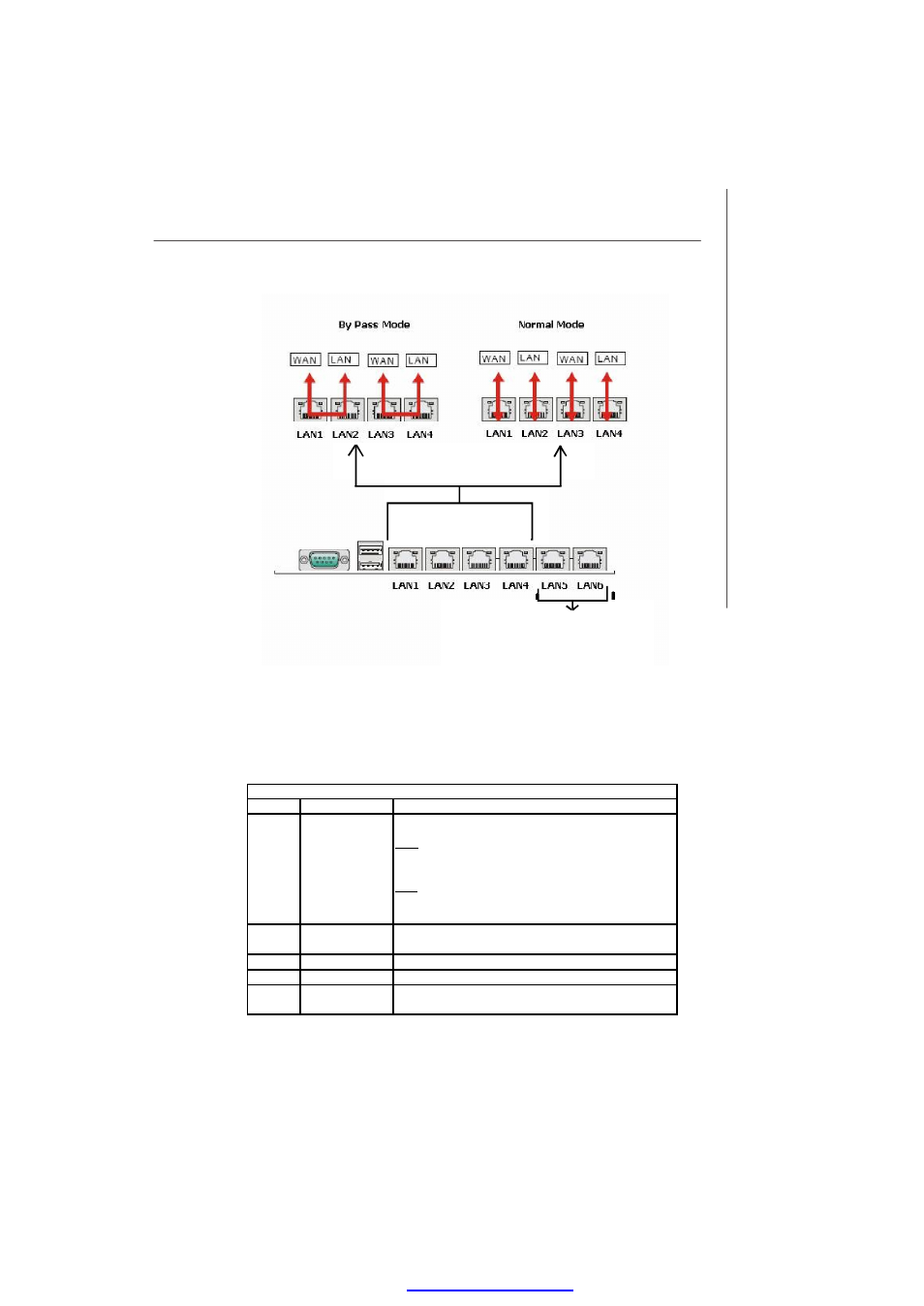

LAN5, LAN6 have no by pass function.
Programming Guide
LPC I/O address : 5E
SMBus address: 0X00 (optional)
1. Power ON State Bypass Control Status Register
Set/Read bypass mode
Default Value: 0x00 (Base on Customer Demand)
Bit Definition
Bit Field Name Value
Segment control bit. Each bit corresponds to a specific segment
numbered 1 thru 4.
Write：
1: Force Bypass
0: Force Pass Through
Read：
1: Bypass Mode
0: Pass Through Mode
0：LPC Control LAN
1：GPIO Control LAN
5 reserved
6 reserved
0：GPIO38 and GPIO39 ：control LAN1,LAN2
1：GPIO38 controls LAN1，GPIO39 controls LAN2
Power ON State Bypass Control Status Register
7 GPIO sel
03:00 Segment
1 to 4
4 Path sel
