M S-9641 M ainboard

2-12

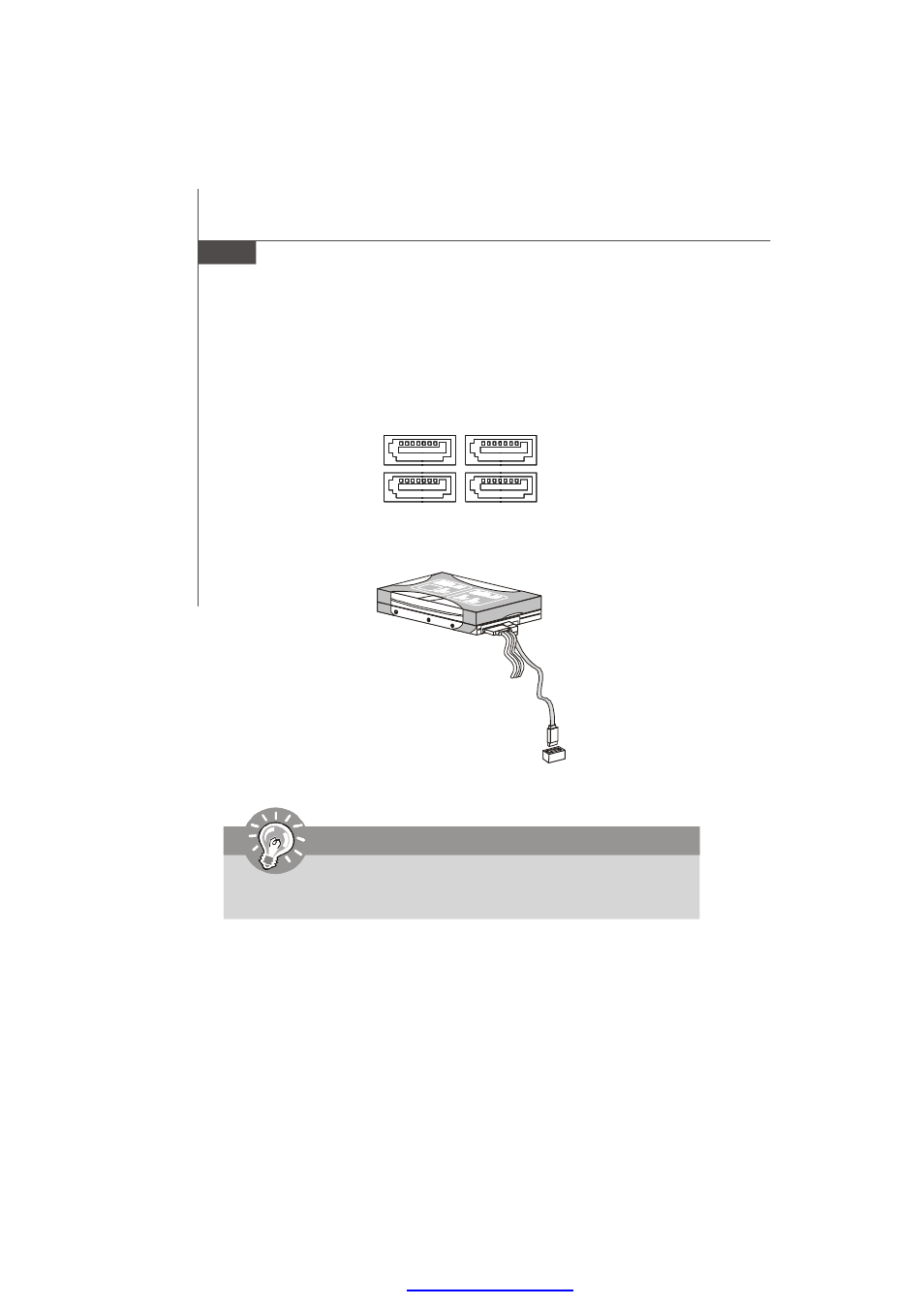

Serial ATAII Connectors: SATA1~SATA4

SATA1~SATA4 are high-speed Serial ATA interface ports. Each supports serial ATA
data rates of 3G b/s . Both connectors are fully compliant with Serial ATA 2.0
specifications. Each Serial ATA connector can connect to 1 hard disk device.

SATA3

SATA4

SATA2

SATA1

Important

Please do not fold the SATA accessory cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
