2-7
Hardware Setup
DIMM 1
(Bank 2 & 3)
S/D 128MB~2GB
Maximum System Memory Supported 128MB~4GB
DIMM 0
(Bank 0 & 1)
S/D 128MB~2GB
S: Single Side D: Double Side
Slot Memory Module Total Memory

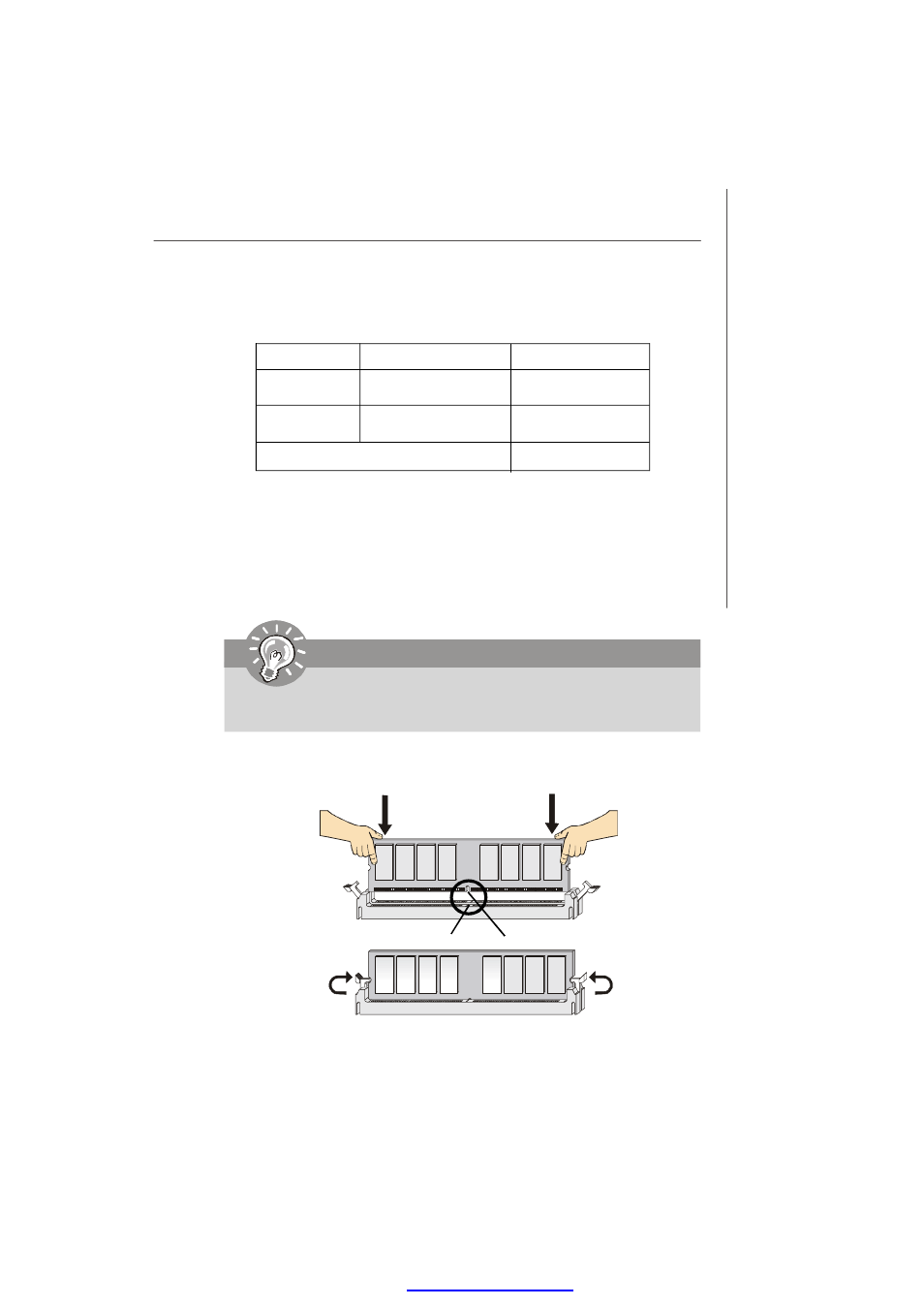

Installing DDR2 Modules
1. The memory module has only one notch on the center and will only fit in the right
orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt Notch
Important
You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.
