Page 26
2-14
MS-91C2 Server Board

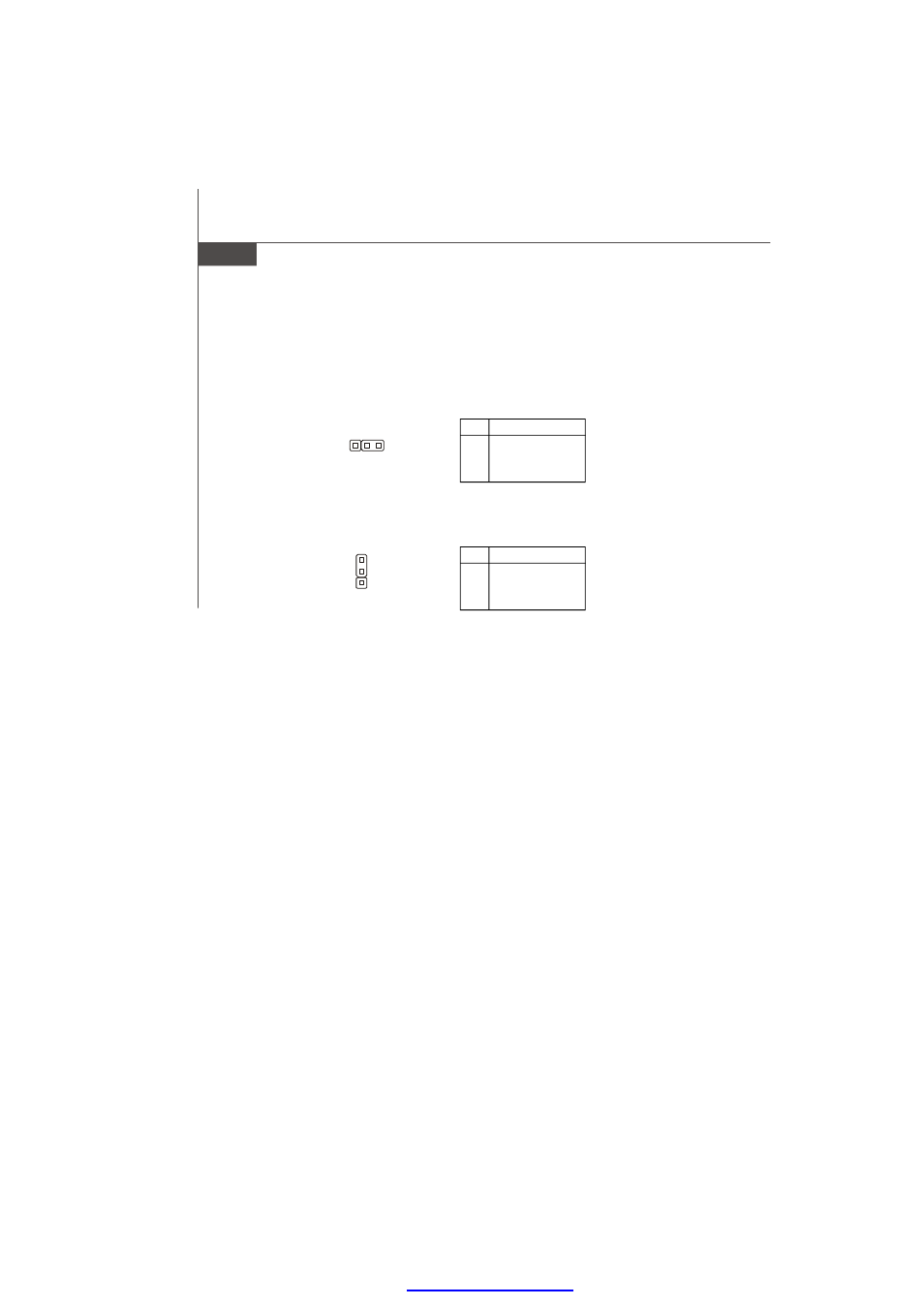

I2C Bus Connector: J_SMBUS1, J_SMLINK1
This connector, known as I
2
C, is for users to connect System Management Bus
(SMBus) interface.
J_SMBUS1 Pin Definition
PIN
SIGNAL
1
SMBUS_ICH_DATA
2
SMBUS_ICH_CLK
3
SMBUS_ALERT#
J_SMBUS1
1
J-SMLINK1 Pin Definition
PIN
SIGNAL
1
SM_LINK1
2
SM_LINK0
3
LINK_ALERT#
J_SMLINK1
1
