RAID Configuration
Before creating a RAID should verify that all partition are
deleted.
Delete with Delete all existing partitions (Hard Disk
Management->Hard Disk Configuration).

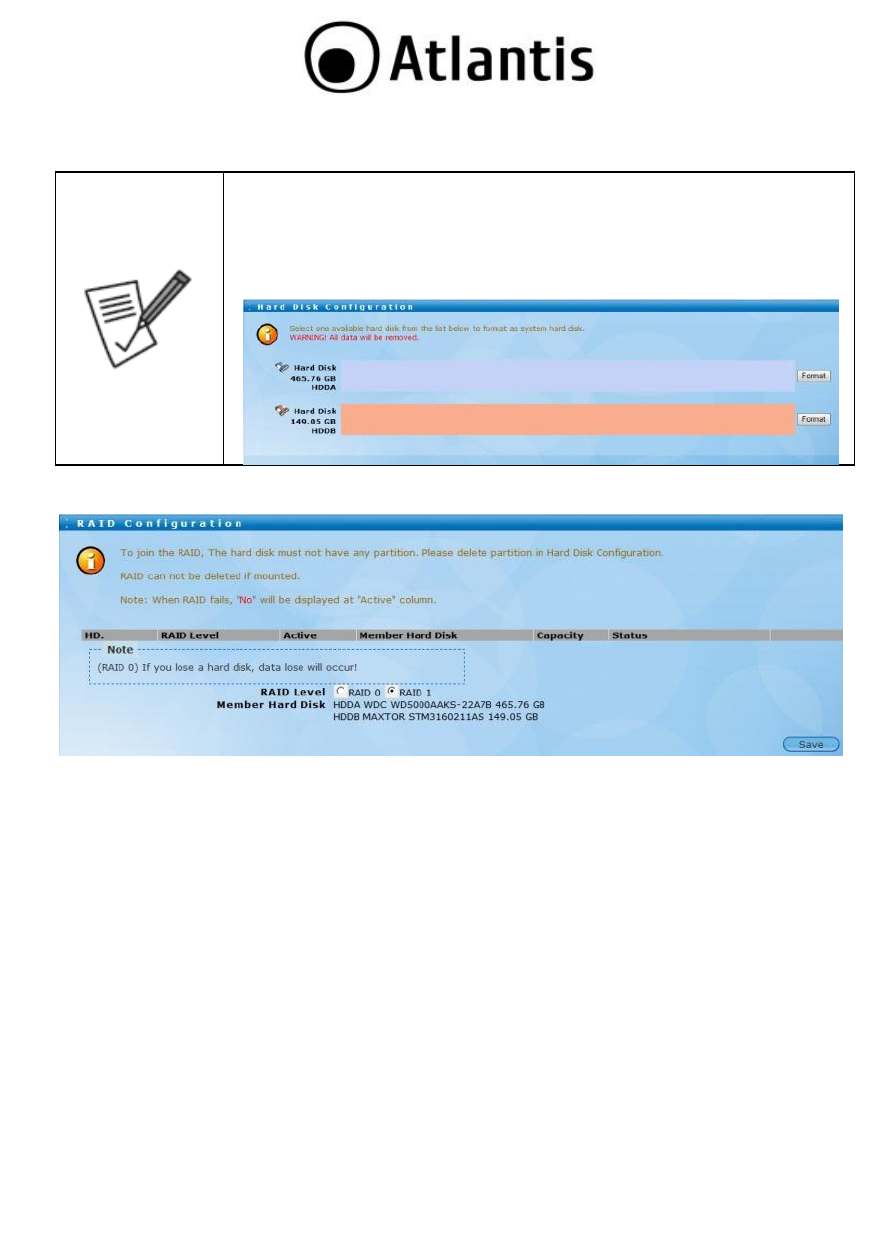

The disc structure must be like in the picture:
When all partitions have been removed, you can create a RAID.
Select the type and then click Save.
When the processo f RAID creation will be completed a pop up window will be
displayed. You will now see a screen that shows a single disc, to start the
formatting process (click su Format). The formatting process includes Disk
Partition, Disk Formatting and System Build up. The time depends on the size
of the discs installed. When the process is completed, click OK on the screen to
finish. The screen below will show the status of the RAID (the field STATUS).
