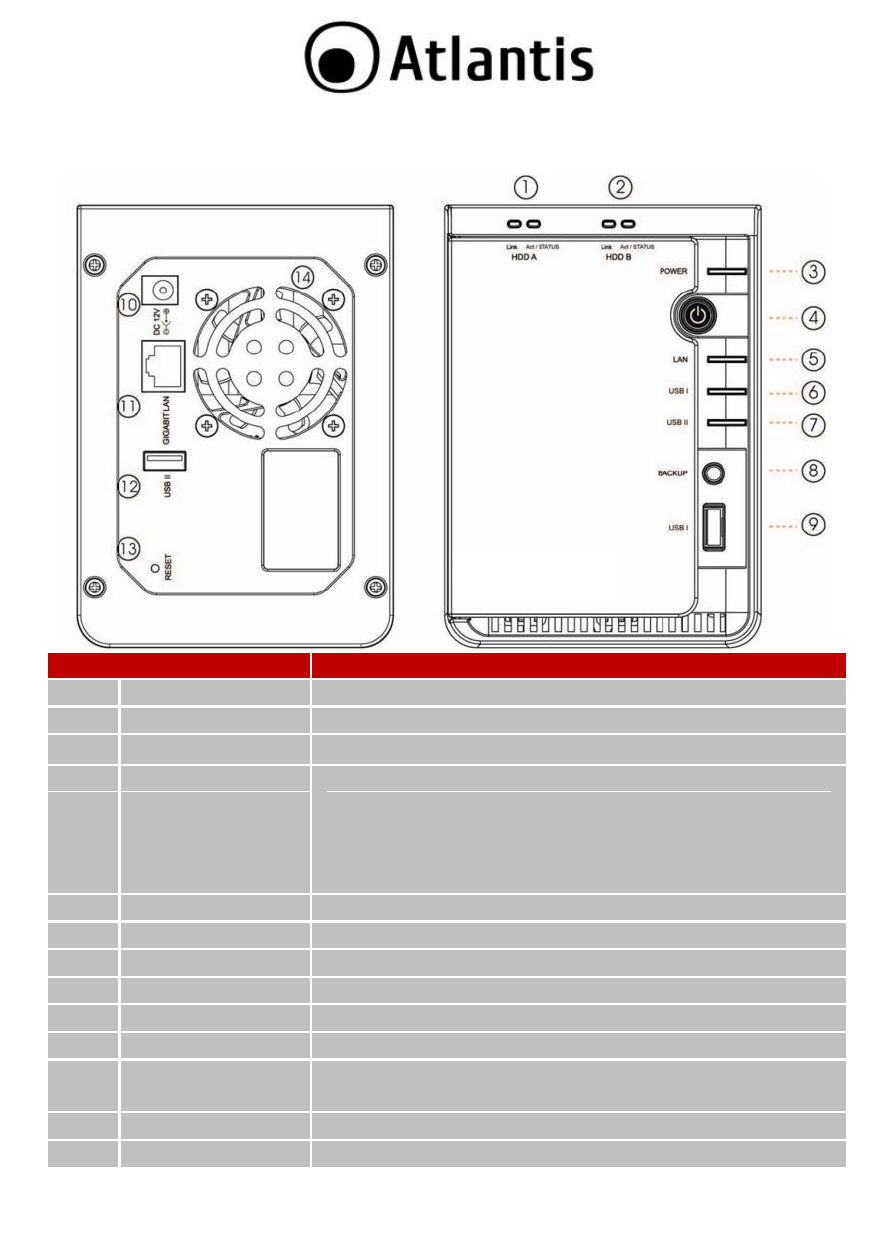

1.5 The Front LEDs and Rear Ports
PORT/Button/LED MEANING
1 HDD A LEDs HDD A indicators.
2 HDD B LEDs HDD B indicators.
3 Power LED Power ON/OFF indicator.
4 Power Button Power Button. Press the button and holds for 3
seconds to turn ON or turn OFF. Press the power
switch to start/shutdown the DiskMaster. It will take
approximately 3 minutes to boot up/and shutdown
the Operating System.
5 LAN LED LAN connection indicator.
6 USB I LED USB port 1 connection indicator.
7 USB II LED USB port 2 connection indicator.
8 Backup Button Activates Backup from USB ports, 1 or 2.
9 USB I Port USB port 1 connector.
10 Power DC Jack DC adapter power input, DC12V.
11 Gigabit LAN
Port RJ45 connector of 10/100/1000 LAN.
12 USB II Port USB port 2 connector.
13 Reset SW Reset button for DiskMaster to reset to its factory
