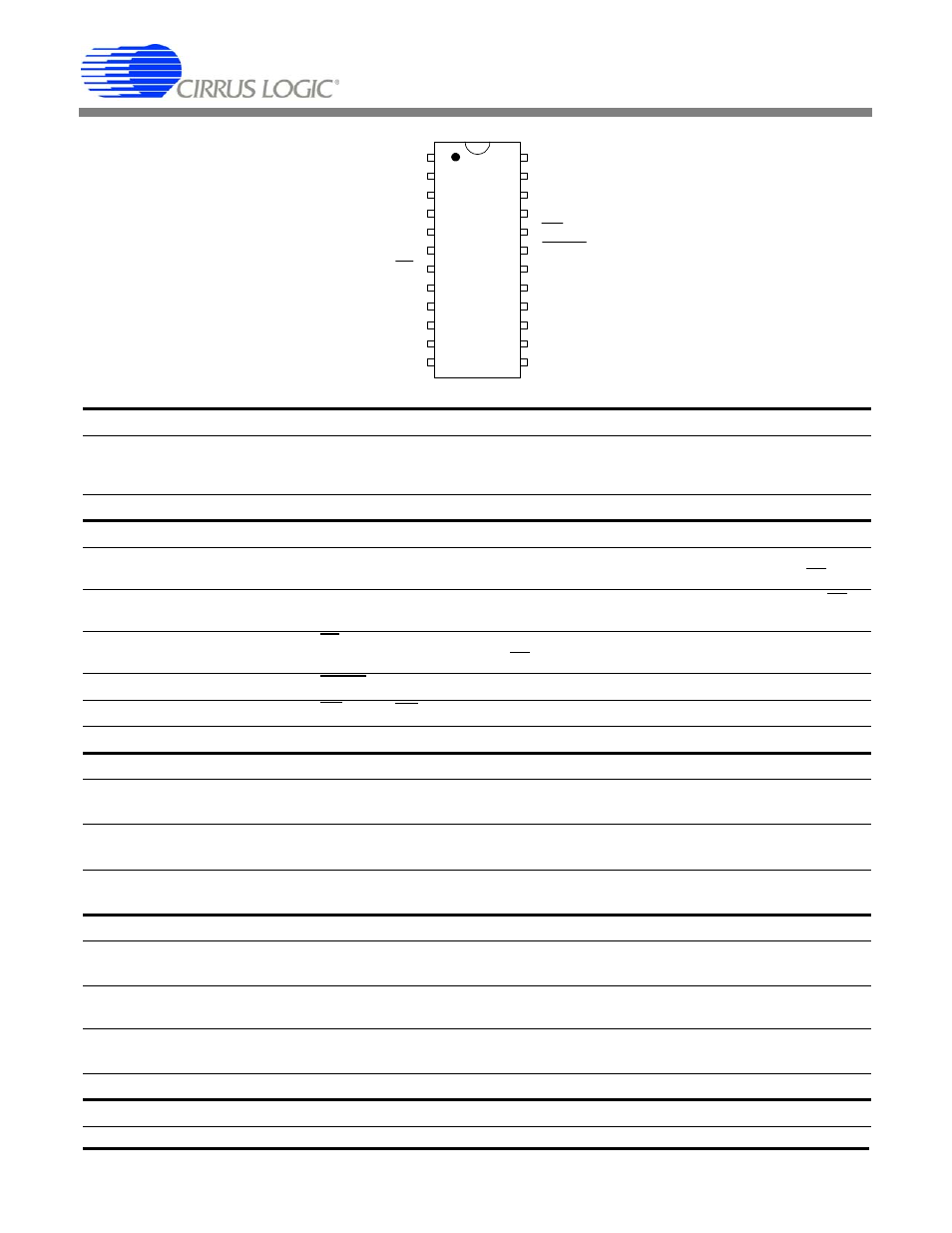

1. PIN DESCRIPTION
VREFIN 12 Voltage Reference Input
VREFOUT 11 Voltage Reference Output
AIN2- 10 Differential Analog Input
AIN2+ 9 Differential Analog Input
TSTO 8 Test Output
CS 7 Chip Select
SDO 6 Serial Data Ouput
SCLK 5 Serial Clock
DGND 4 Digital Ground
VD+ 3 Positive Power Supply
CPUCLK 2 CPU Clock Output
XOUT 1 Crystal Out
AGND 13 Analog Ground
VA+ 14 Positive Analog Supply
AIN1- 15 Differential Analog Input
AIN1+ 16 Differential Analog Input
TSTO 17 Test Output
TSTO 18 Test Output
RESET 19 Reset
INT 20 Interrupt
TSTO 21 Test Output
TSTO 22 Test Output
SDI 23 Serial Data Input
XIN 24 Crystal In
Clock Generator
Crystal Out
Crystal In 1,24 XOUT, XIN - A gate inside the chip is connected to these pins and can be used with a
crystal to provide the system clock for the device. Alternatively, an external (CMOS
compatible) clock can be supplied into XIN pin to provide the system clock for the device.
CPU Clock Output 2 CPUCLK - Output of on-chip oscillator which can drive one standard CMOS load.
Control Pins and Serial Data I/O
Serial Clock Input 5 SCLK - A clock signal on this pin determines the input and output rate of the data for the
SDI and SDO pins respectively. The SCLK pin will recognize clocks only when CS is low.
Serial Data Output 6 SDO -The serial data port output pin. Its output is in a high impedance state when CS is
high.
Chip Select 7 CS - When low, the port will recognize SCLK. An active high on this pin forces the SDO
pin to a high impedance state. CS should be changed when SCLK is low.
Reset 19 RESET - When reset is taken low, all internal registers are set to their default states.
Interrupt 20 INT - When INT goes low it signals that an enabled event has occurred.
Serial Data Input 23 SDI - The serial data port input pin. Data will be input at a rate determined by SCLK.
Measurement and Reference Input
Differential
Analog Inputs 9,10,15,16 AIN1+, AIN1-, AIN2+, AIN2- - Differential analog input pins.
Voltage
Reference Output 11 VREFOUT - The on-chip voltage reference output. The voltage reference has a nominal
magnitude of 2.5 V and is referenced to the AGND pin on the converter.
Voltage
Reference Input 12 VREFIN - The input establishes the voltage reference for the on-chip modulator.
Power Supply Connections
Positive
Digital Supply 3 VD+ - The positive digital supply relative to DGND.
Digital Ground 4,9,10 DGND - The common-mode potential of digital ground must be equal to or above the
common-mode potential of AGND.
Positive
Analog Supply 14 VA+ - The positive analog supply relative to AGND.
Analog Ground 1 3 AGND - The analog ground pin must be at the lowest potential.
Test Output 8,17,18,21,22 TSTO - These pins are used for factory testing and must be left floating.
