Page 16: Figure 18.cs5340 master mode clocking

DS601F2

CS5340

Confidential Draft

3/11/08

4.2.1

Operation as a Clock Master

As a clock master, LRCK and SCLK operate as outputs. The left/right and serial clocks are internally de-
rived from the master clock with the left/right clock equal to Fs and the serial clock equal to 64x Fs, as
shown in

Figure 18

4.2.2

Operation as a Clock Slave with Auto-Detect

LRCK and SCLK operate as inputs in clock slave mode. It is recommended that the left/right clock be
synchronously derived from the master clock and must be equal to Fs. It is also recommended that the
serial clock be synchronously derived from the master clock and be equal to 64x Fs to maximize system
performance.

A unique feature of the CS5340 is the automatic selection of either Single-, Double- or Quad-Speed mode
when operating as a clock slave. The auto-mode select feature negates the need to configure the Mode
pins to correspond to the desired mode. The auto-mode selection feature supports all standard audio
sample rates from 2 to 200 kHz. However, there are ranges of non-standard audio sample rates that are
not supported when operating with a fast MCLK (512x, 256x, 128x for Single-, Double-, and Quad-Speed
Modes, respectively). Please refer to

Table

for supported sample rate ranges.

ч 128

ч 256

ч 64

LRCK Output

(Equal to Fs)

Single

Speed

Quad

Speed

Double

Speed

ч 2

ч 4

ч 1

SCLK Output

Single

Speed

Quad

Speed

Double

Speed

ч 2

ч 1

MCLK

Auto-Select

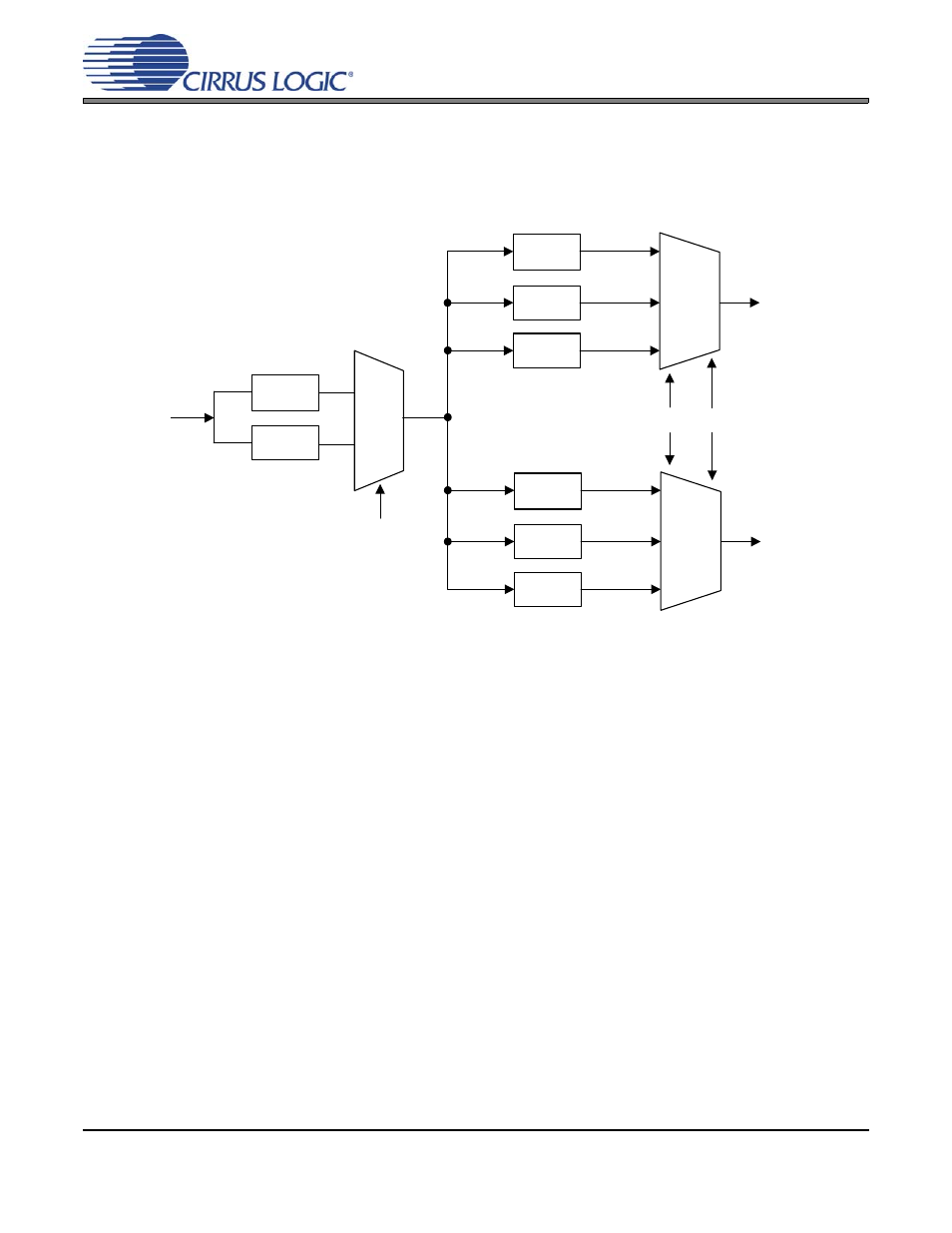

Figure 18. CS5340 Master Mode Clocking
