22 DS882DB1
CDB42L73
4.3.9 Analog Output Tab
The “Analog Output” tab contains the main controls for setting the analog output circuitry options of the
CS42L73. A brief description of each control group is described below.
• Analog Volume - register controls to configure the analog volume settings of the CS42L73’s analog out-
puts
• Class H controls for Headphone and Line Out - register controls to configure the Class H power mode
related options and the charge pump frequency
• Speakerphone Output Control - register control to select the drive capability of the speakerphone output
• Refresh Page - reads all registers in all devices and updates the values in the GUI
• Reset CS42L73 - resets the CS42L73

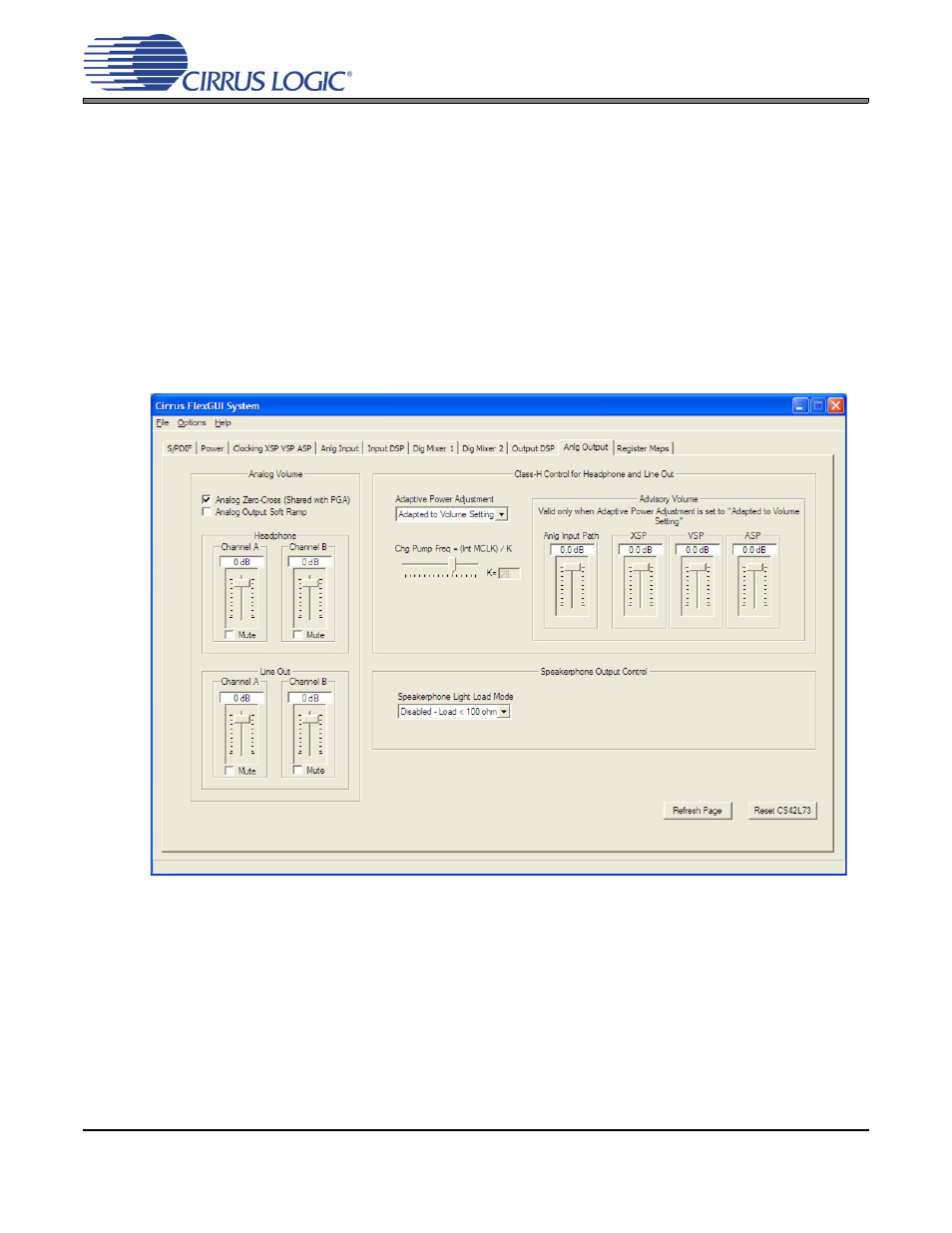

Figure 14. The “Analog Output” Tab in FlexGUI for the CDB42L73
