Page 11
DS882DB1
11
CDB42L73
Table 3. LED Information
Note: All settings denoted by the symbol [*] are the Default Factory Settings.
D5
VA
On
Off
Indicates the CS42L73 VA supply is powered.
Indicates the CS42L73 VA supply is not powered.
D6
VCP
On
Off
Indicates the CS42L73 VCP supply is powered.
Indicates the CS42L73 VCP supply is not powered.
D7
VD_FILT
On
Off
Indicates the CS42L73 VD_FILT supply is powered.
Indicates the CS42L73 VD_FILT supply is not powered.
D8
VP
On
Off
Indicates the CS42L73 VP supply is powered.
Indicates the CS42L73 VP supply is not powered.
D9(
VL
On
Off
Indicates the CS42L73 VL supply is powered.
Indicates the CS42L73 VL supply is not powered.
LED
STATUS
FUNCTION

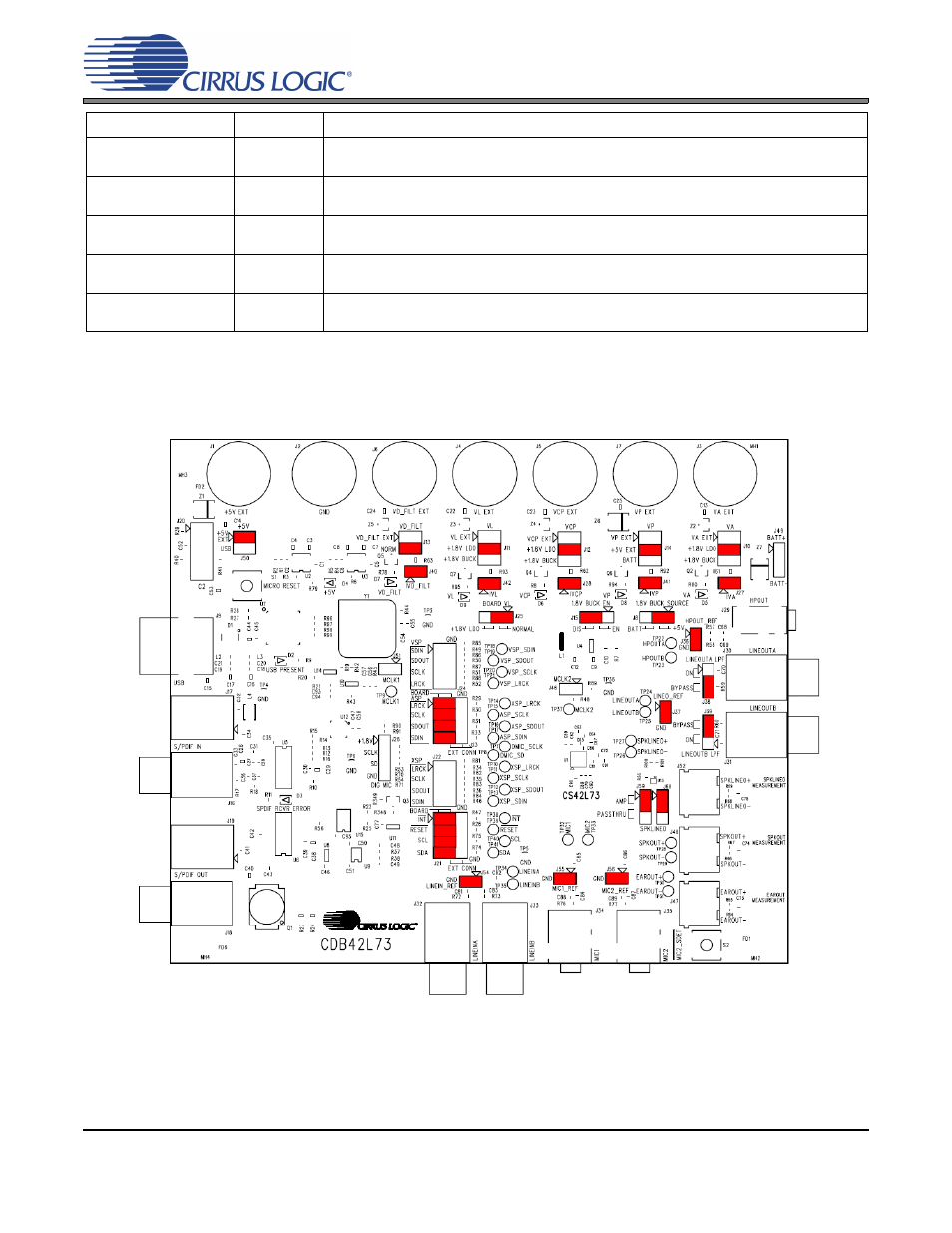

Figure 1. CDB42L73 Factory Default Jumper Settings
