14

DS882DB1

CDB42L73

4.3.1

S/PDIF Tab

The “S/PDIF” tab contains the main controls for setting up the S/PDIF interface of the CDB42L73. A brief
description of each control group is described below.

• S/PDIF Receiver (CS8416) - register controls for configuring the CS8416 to accommodate the S/PDIF

input stream

• S/PDIF Transmitter (CS8406) - register controls for configuring the CS8406 to produce the desired

S/PDIF output stream

• Refresh Page - reads all registers in all devices and updates the values in the GUI

• Reset CS8416 - resets the CS8416 S/PDIF receiver

• Reset CS8406 - resets the CS8406 S/PDIF transmitter

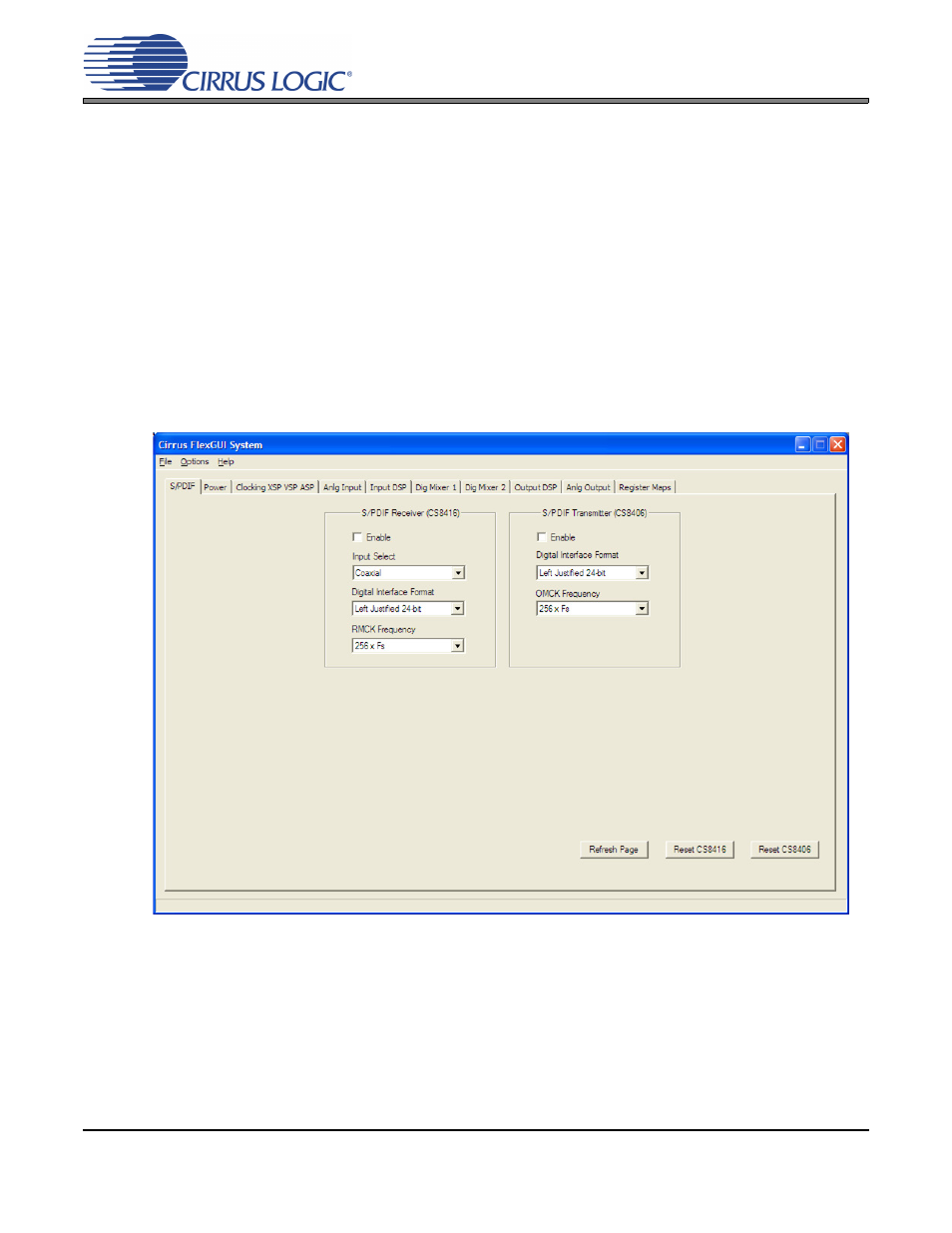

Figure 6. The “S/PDIF” Tab in FlexGUI for the CDB42L73
