CDB4265
DS657DB1 9
3.3 Register Maps Tab
The Register Maps tab provides low level control over the register level settings of the CS4265, CS8416,
and FPGA. Each device is displayed on a separate tab. Register values can be modified bit-wise or byte-
wise. For bit-wise, click the appropriate push button for the desired bit. For byte-wise, the desired hex value
can be typed directly in the register address box in the register map.
3.4 Pre-Configured Script Files
Pre-configured script files are provided with the CDB4265 to allow easy initial board bring-up. The board
configurations stored within these files are described in sections 3.4.1 - 3.4.2.
3.4.1 Oscillator Clock - Line In to DAC & SPDIF Out
Using the pre-configured script file named “Oscillator Clock - Line In to DAC & SPDIF Out.txt”, an analog
input signal applied to the line level inputs of the CS4265 input multiplexer will be digitized by the ADC, trans-
mitted in S/PDIF format by the CS4265 internal S/PDIF transmitter, and converted to analog by the DAC
and output through the passive output filter.
The canned oscillator is the source of MCLK. The CS4265 is the sub-clock master to the PCM I/O header.

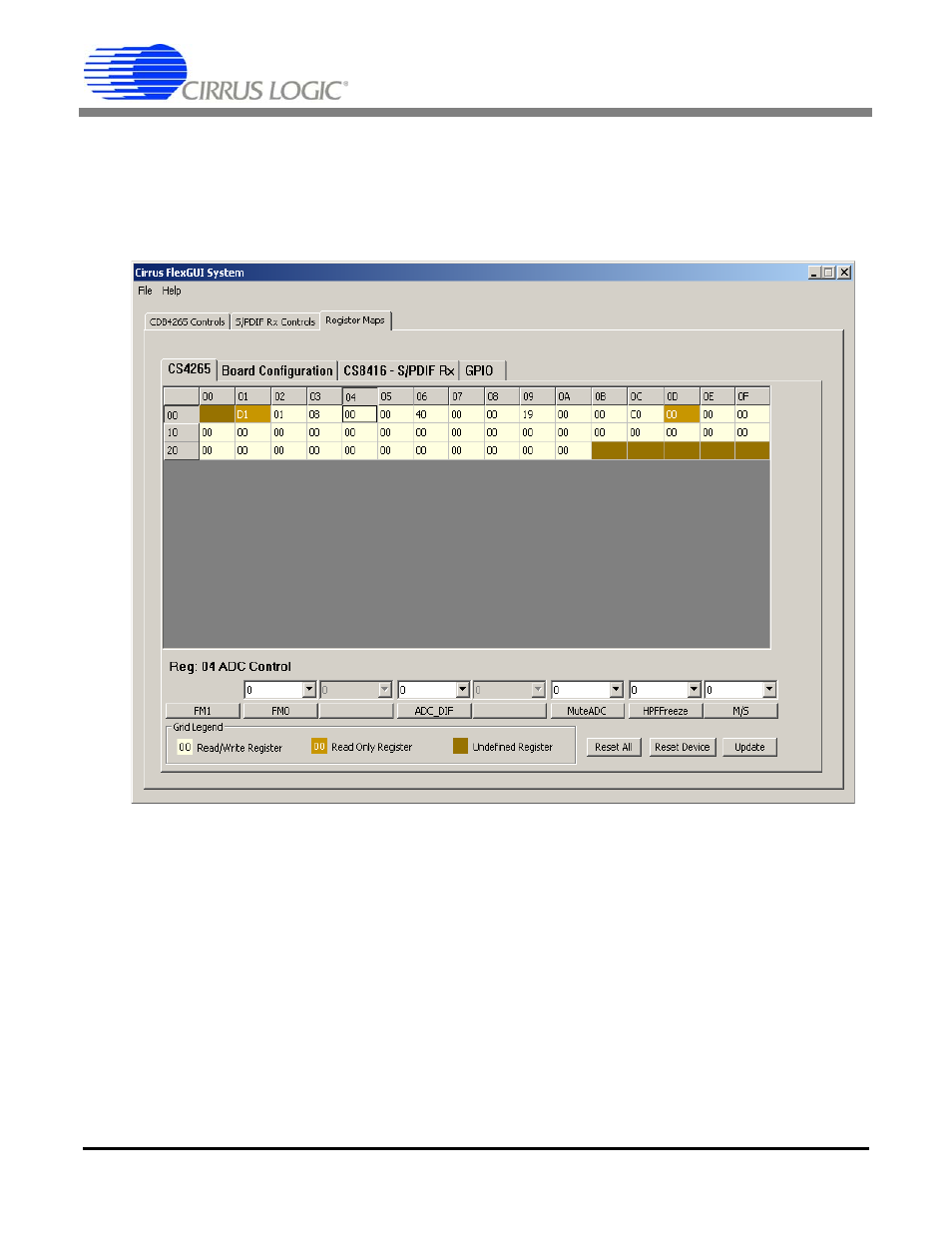

Figure 3. Register Maps Tab
