CDB4265

8

DS657DB1

3.2

S/PDIF Rx Controls Tab

When the CDB4265 is configured to make use of the CS8416 S/PDIF receiver, these devices must be con-
figured for proper operation. The S/PDIF Rx Controls tab provides a high-level intuitive interface to the most
common configuration options of the CS8416.

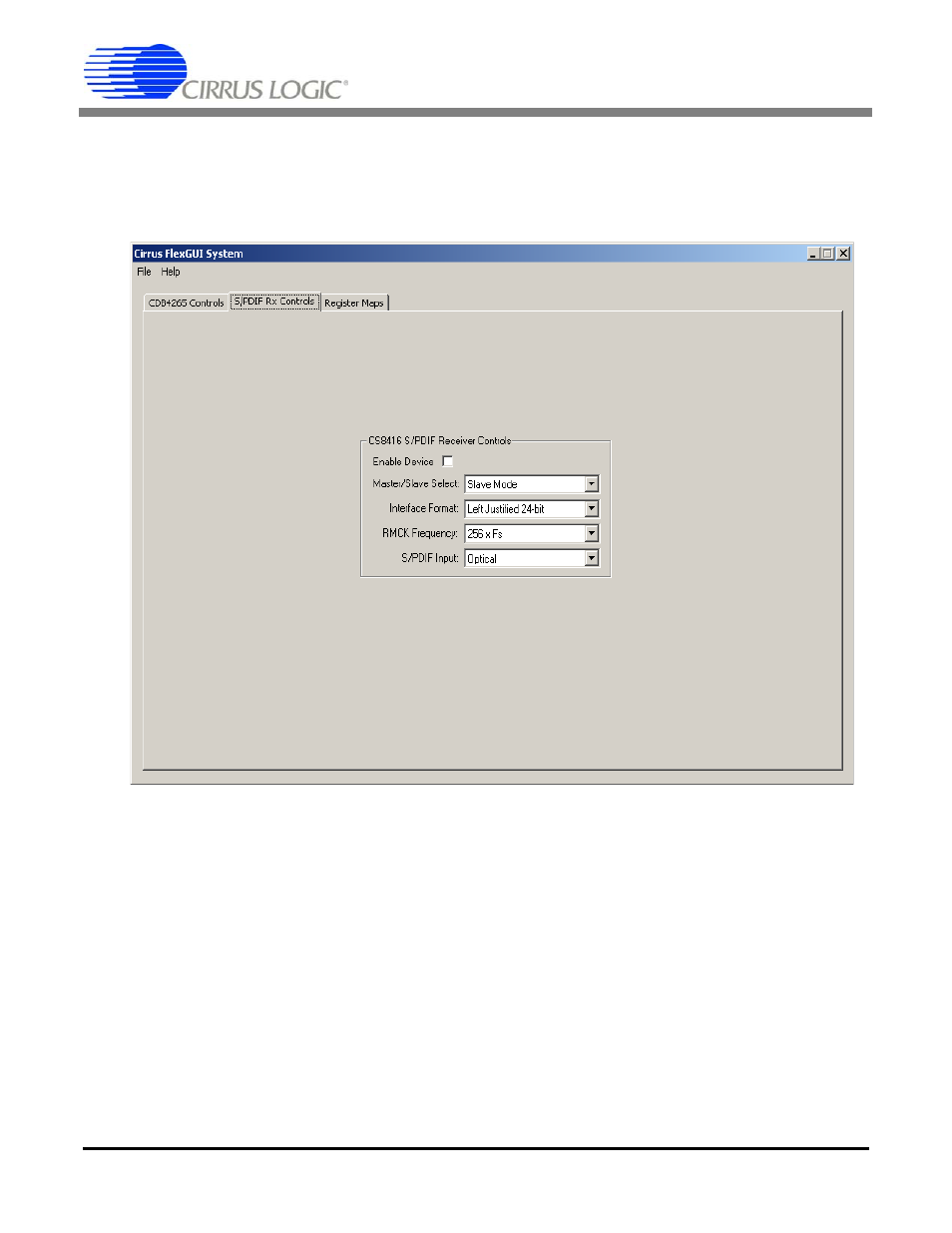

Figure 2. S/PDIF Rx Controls Tab
