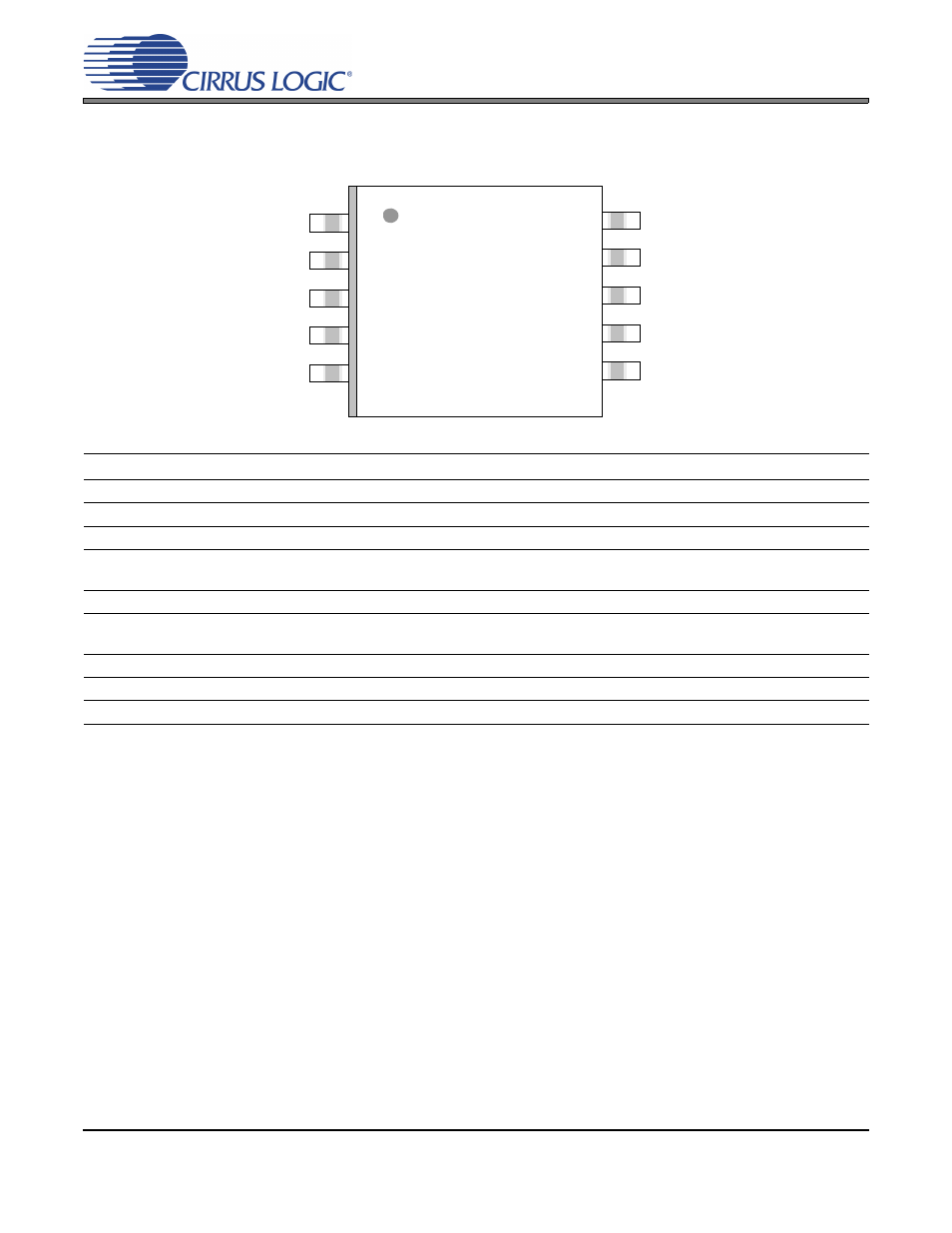

1. PIN DESCRIPTION
Pin Name # Pin Description
VD 1 Digital Power (Input) - Positive power supply for the digital and analog sections.
GND 2 Ground (Input) - Ground reference.
CLK_OUT 3 PLL Clock Output (Output) - PLL clock output.
AUX_OUT 4
Auxiliary Output (Output) - This pin outputs a buffered version of one of the input or output clocks,
or a status signal, depending on configuration.
CLK_IN 5 Frequency Reference Clock Input (Input) - Clock input for the Digital PLL frequency reference.
FILTP
FILTN 6
7 LCO Filter Connections (Input/Output) - These pins provide external supply filtering for the LCO.
M2 8 Mode Select (Input) - M2 is a configurable mode selection pin.
M1 9 Mode Select (Input) - M1 is a configurable mode selection pin.
M0 10 Mode Select (Input) - M0 is a configurable mode selection pin.
1
2
3
4
5
6
7
8
9
10
FILTP
CLK_OUT
GND
VD
FILTN
M2
M1
M0
AUX_OUT
CLK_IN
