10.3 Communication Wiring within a Zone of Heaters
Satellite heaters will be wired in series to the central
heater via low voltage control wiring. Communication wiring uses the T28-T31 terminals
on the control, see
Page 42, Figure 25.

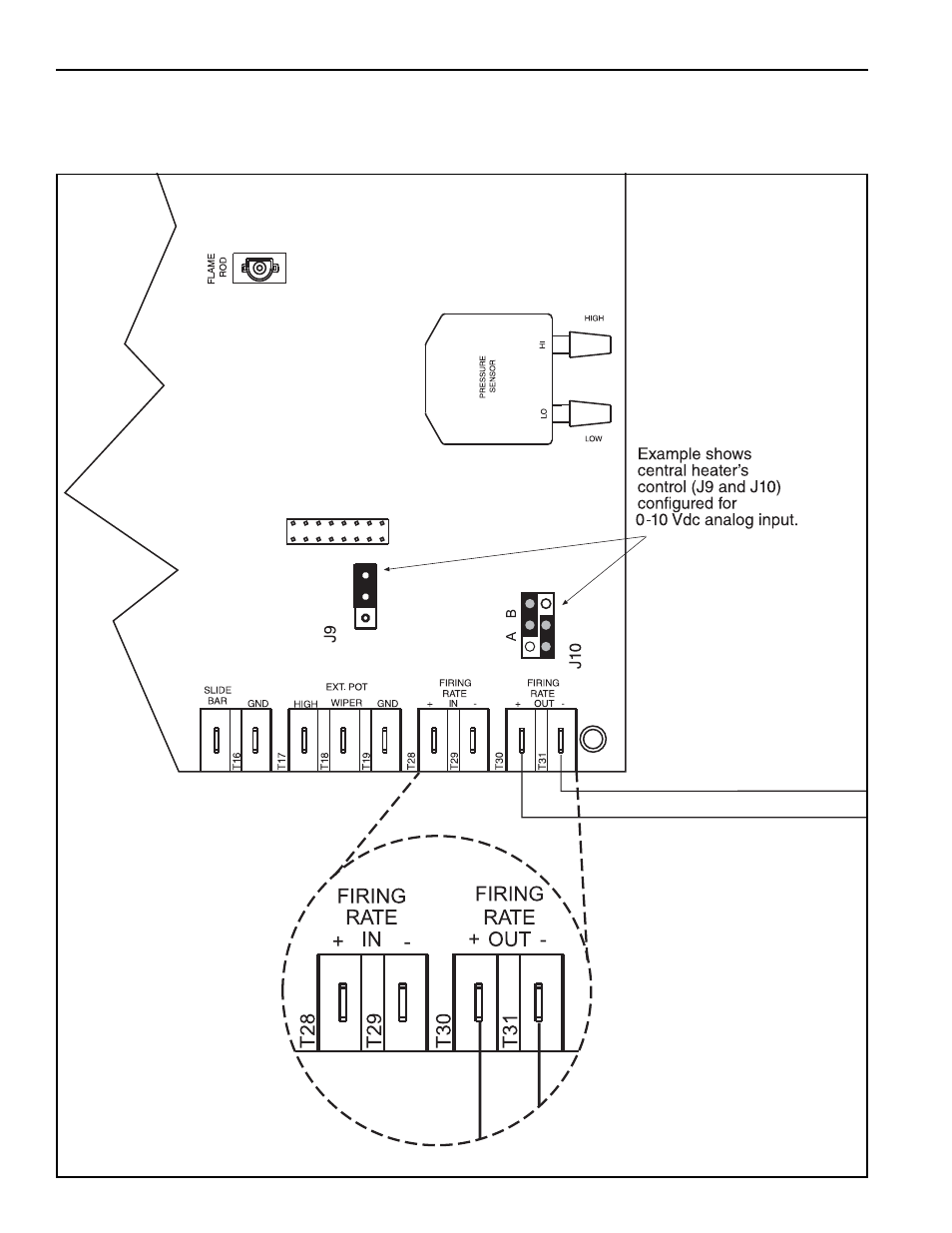

FIGURE 25: Communication Wiring within a Zone of Heaters
CENTRAL HEATER CONTROL
