2.1 Glossary of Terminology and Concepts
When a device has as many features as the SP2200, understanding its operation could be a daunting task at
first. By understanding the key concepts and terminology used in this manual, the operation of the SP2200
will become quite intuitive. Every effort has been made to design the SP2200 with a consistent and
intuitive user interface.
To facilitate and enhance your understanding of the SP2200's operation, please take the time to familiarize
yourself with the basic concepts below:

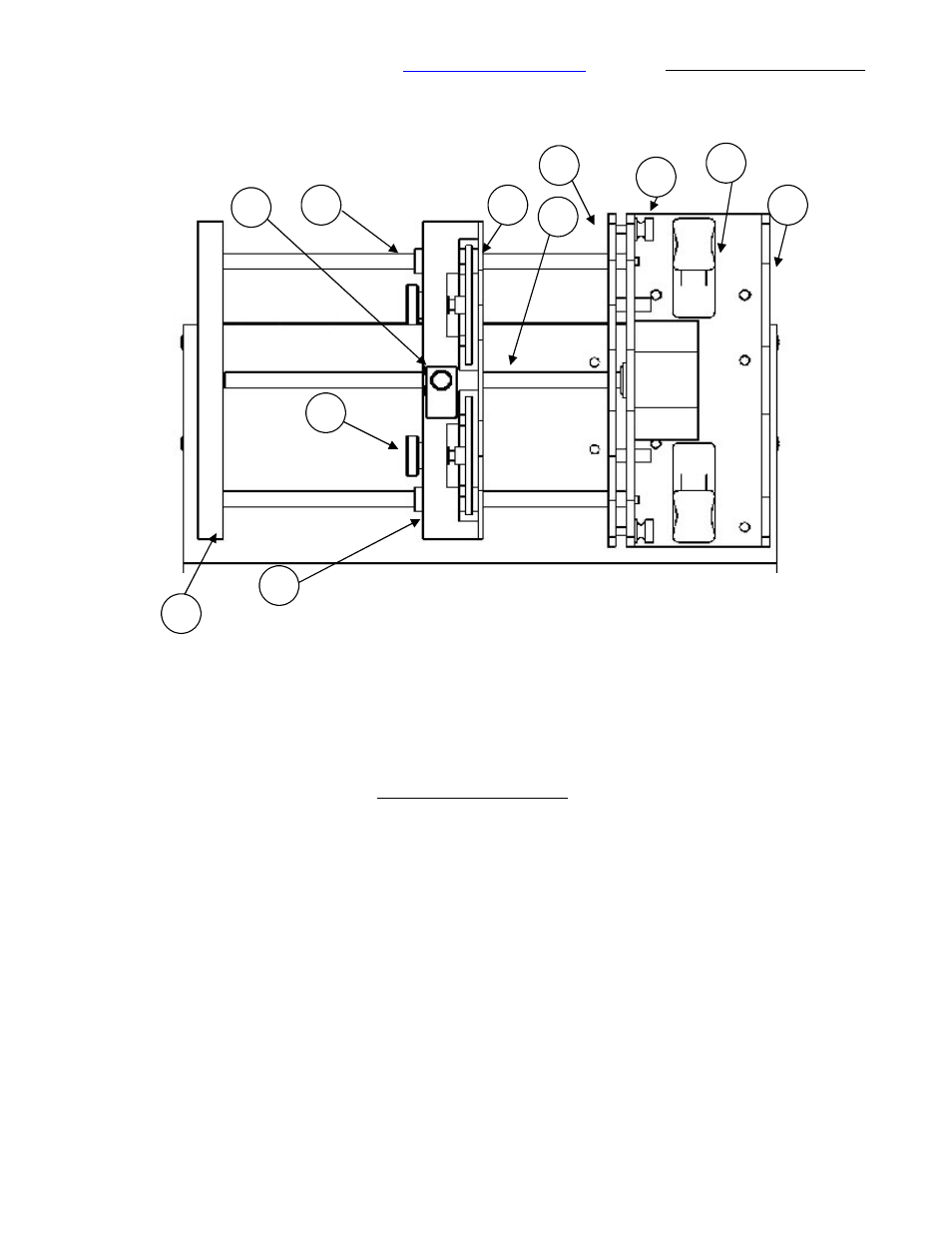

Parts of the Pump
1) Pusher Block
2) End Plate
3) Anti-Siphon Plate Adjustment Knob (2)
4) Drive Release Knob (Turn and lift to
release)
5) Guide Rod (2 guide rods)
6) Anti-Siphon Plate
7) Drive-Screw
8) Syringe Retainer Bracket
9) Syringe Retainer Thumbscrew (2, one on
each side)
10) Syringe Clamp (2, one for each syringe)
11) Syringe Holder Bracket and ‘V’ Slots
1
8
7
6 5 4
3
2
10
9
11
