Page 1 06201-90(I)
INTRODUCTION
The YOUNG Model 06201 Wind Tracker is a compact wind speed and direction
display with advanced features for use in a wide range of applications.
FEATURES
• 3-digit wind speed display
• 3-digit maximum wind speed or wind direction display
• Multi-color wind direction display with variability
• Wind speed and direction alarms with delay
• RS-485 serial connections
• Calibrated 0-5 VDC outputs
• Display brightness control
• Compatible with YOUNG wind sensors & 4-20 mA inputs
PRECAUTIONS
• INDOOR USE ONLY unless placed in approved enclosure
• Operating temperature range 0-50°C (32-122°F), 0-95% RH
• Use only recommended power sources. 12-30 VDC, 3.5 W
• Disconnect power when connecting or servicing
• Alarm contact rating 24 VAC/30 VDC, 5 A resistive,
2 A inductive maximum
FACTORY DEFAULT SETTINGS
INPUT:
- Sensor Input Setting: "05" Wind Monitor
- Input selector switch position: "Down" (Sensor)
OPTIONS:
- Averaging: "No"
- Right hand display window: "Max Wind Speed"
- Alarms: "No"
OUTPUT:
- Voltage Outputs: 0-5Vdc=0-100m/s / 0-5Vdc = 0-360°
- Serial Output Type: "Binary"
IMPORTANT NOTE!:
Before connecting any external devices, verify the above
settings are compatible with your application. If different,
refer to the wiring diagrams for the correct settings.

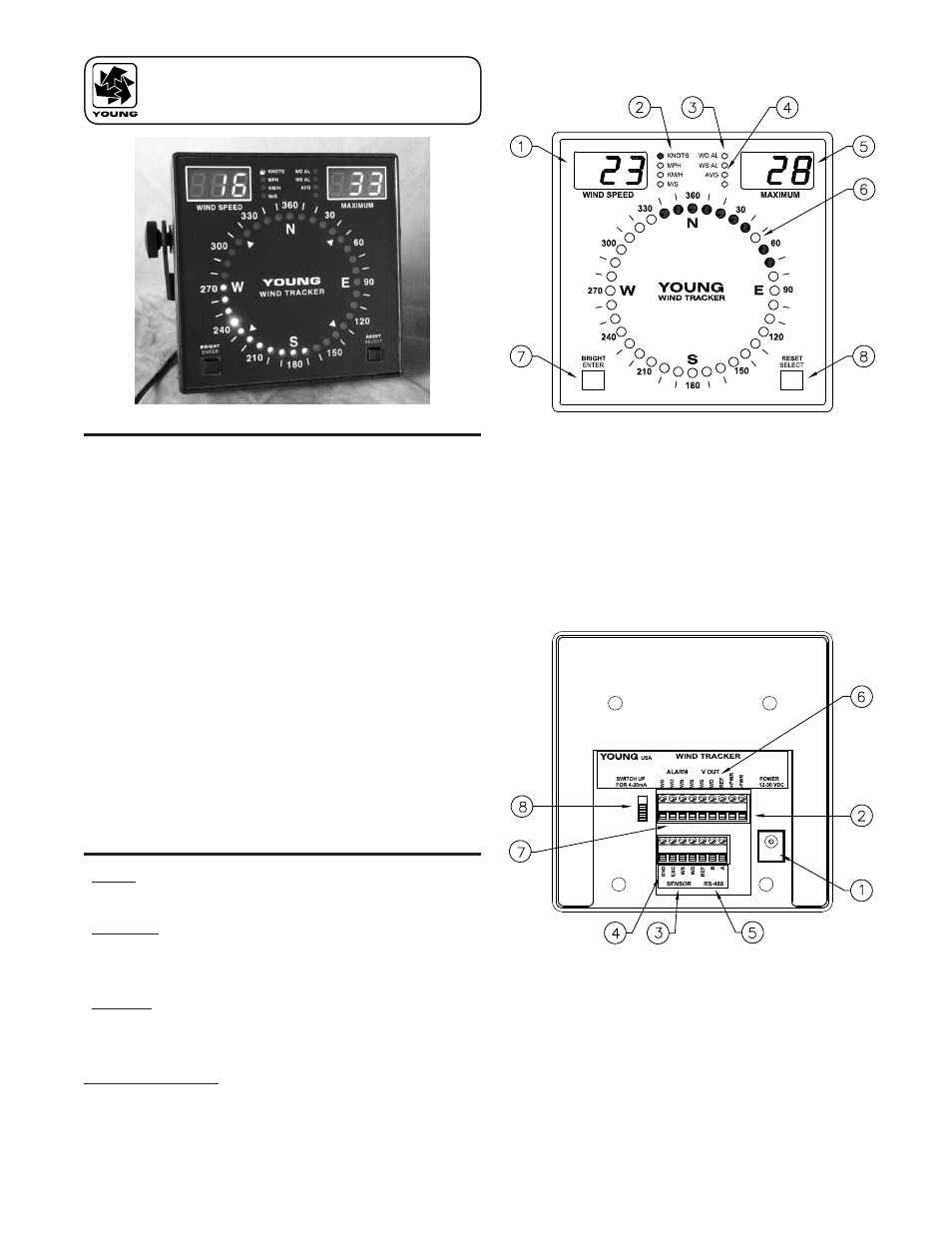

MODEL 06201
WIND TRACKER
FRONT PANEL
1. Wind speed display
2. Wind speed units indicator
3. Alarm status indicators
4. Data averaging indicator
5. Maximum wind speed or direction display
6. Wind direction and variability display
7. Brightness control (operate) or Enter key (setup)
8. Maximum Reset (operate) or Select (setup)
BACK PANEL
1. Power input coaxial jack (12-30 VDC)
2. Power input terminals (12-30 VDC)
3. Sensor or 4-20 mA inputs
4. Earth ground connection
5. RS-485 serial input/output
6. 0-5 VDC calibrated outputs
7. Alarm relay connections (Normally Open)
8. Input Selector Switch (Sensor or 4-20mA)
