INSTRUCTION SHEET 06260-90
REV 04-98
MODEL 06260
PROTECTIVE COVER FOR WIND TRACKER
LD
INTRODUCTION
The Protective Cover provides moisture and dust protection
for the Wind Tracker display. The clear window permits
easy viewing of display information while the sealed buttons
allow operation of brightness and reset controls.
INSTALLATION

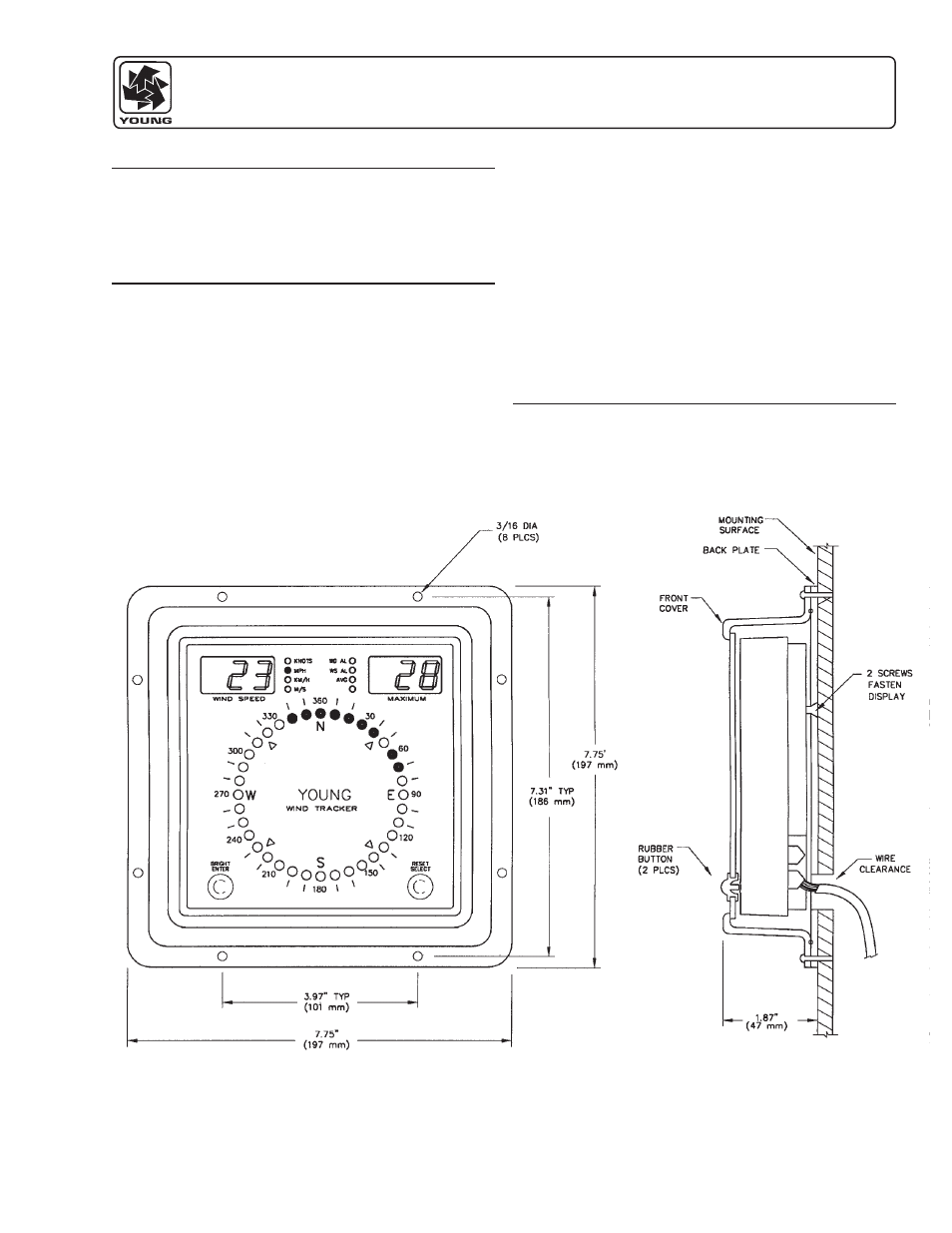

The Protective Cover may be installed on any flat surface. It
is supplied as two components; a Front Cover and a Back
Plate. Installation is as follows:
1. Select a location for the Display and Protective Cover
that permits good viewing.
2. Using the back plate as a template, mark locations for 8
screws and the clearance hole for wiring connections.
R. M. YOUNG COMPANY
2801 Aero Park Drive, Traverse City, Michigan 49686 USA
TEL: 616-946-3980 FAX: 616-946-4772
3. In mounting surface, drill 8 mounting holes. (1/8" drill).
Drill clearance hole in mounting surface for wires.
4. Pass sensor cable and power supply cable through
back plate. Attach sensor wires to display terminals.
Insert power supply plug into jack on back of display.
5. Attach display to back plate using 2 ea no 8 screws
provided.
6. Align front cover and back plate with holes in mounting
surface. Fasten using 8 self tapping screws provided.
MAINTENANCE
Dirt or dust accumulation may be cleaned using soap and
water and a soft cloth. Do not use abrasive cleaners. DO
NOT USE SOLVENTS.
