WIKA Operating instructions intelliGAUGE Model PGT15 (LOG-1x)

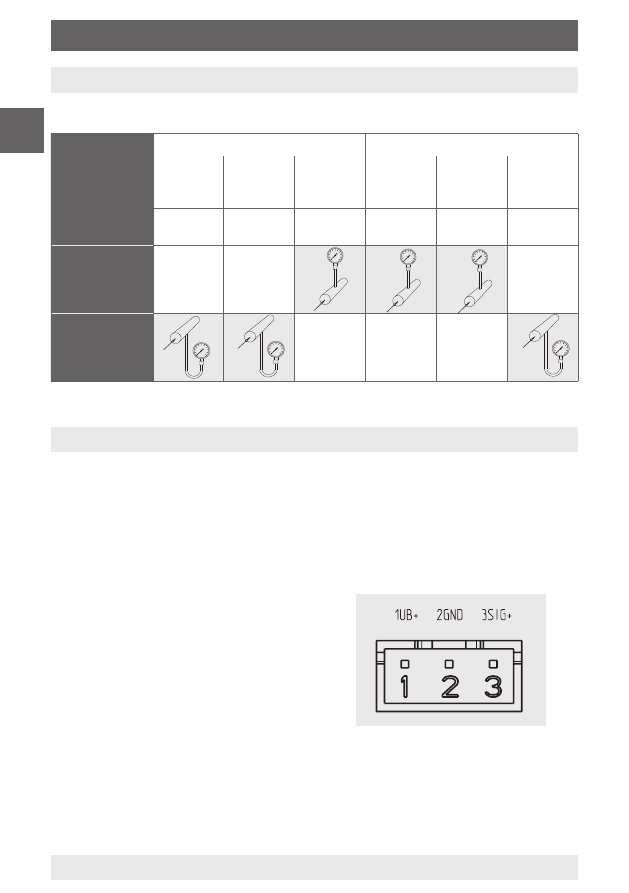

6. Electrical connection
The electrical connection of pressure gauges with an electrical output
signal is made via a cable with a model JST XH, 3-pin connector fitted to
it. The correct terminal connections can be seen in the table below.
Additionally the terminal assignment, output signal and necessary supply
voltage are written on the product label.
3-pin connector, model JST XH
Pin
Signal
1 U
B+
2 GND
3 U
SIG+
8
GB
5. Measuring arrangements / 6. Electrical connection
5. Measuring arrangements
Proven measuring arrangements for various types of media.
Contents of
tailpipe
Typically
Liquid media Gaseous media
Liquid Liquid
with
vapour Vapour
only Gas only Wet gas Liquid
gas con-
densate
Conden-
sate Boiling
liquid Liquefied
gas Dry air Moist air,
Flue gas Steam
Pressure
instrument
higher than
tapping point
Pressure in-
strument lower
than tapping
point
