15 WIKA operating instructions pressure transmitter model D-1x-7
2478159.05 12/2011 GB/D/F/E
GB
DIP switch configuration

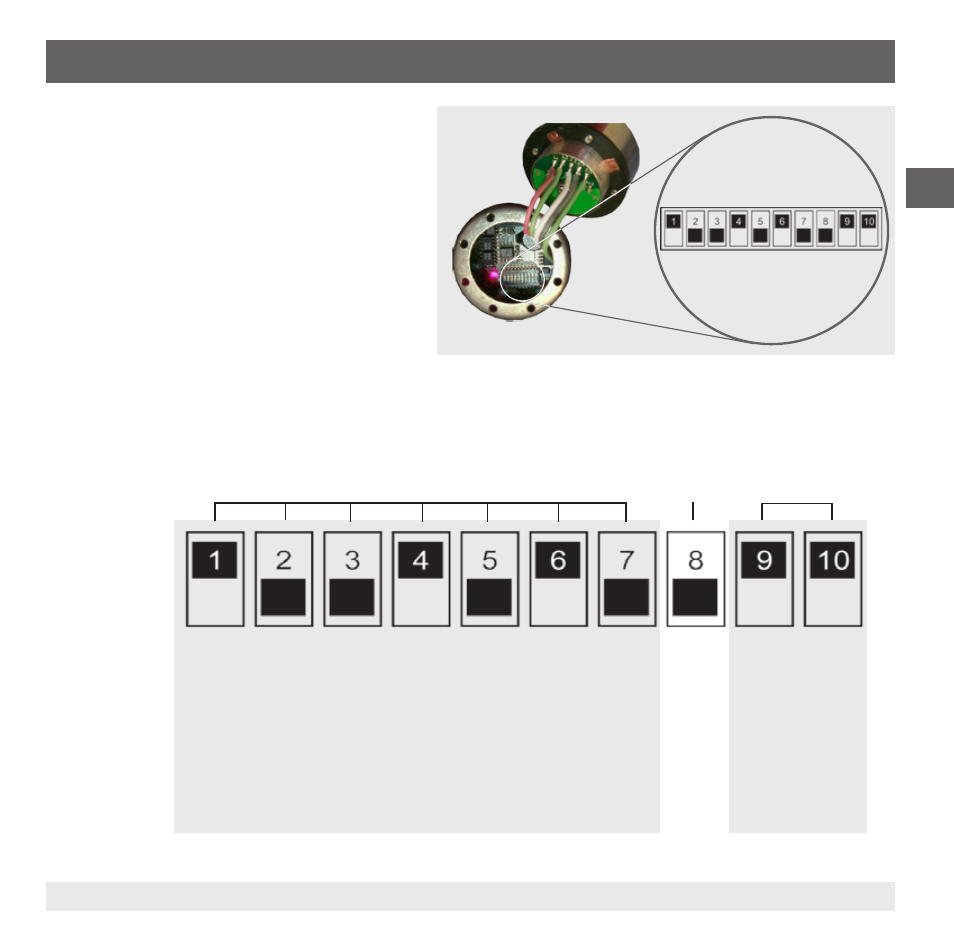

6.3 DIP switch configuration
In order to access the DIP switches, the
instrument must be opened carefully.
■ Loosen the screws on the instrument
head.
■ Lift the instrument head off the instrument
carefully, so as not to damage any wires.
6. Commissioning, operation
Example for a Profibus address
1 0 0 1 0 1 0
1 * 2 0 * 2 1 0 * 2 2 1 * 2 3 0 * 2 4 1 * 2 5 0 * 2 6
1 + 0 + 0 + 8 + 0 + 32 + 0
Profibus address = 41
dec
or 29
hex
Example
1 1
Resistors are
activated.
Profibus address res.
Terminating
resistor
On or 1
Off or 0
Fig.: Opened instrument
