PT-110xl, WP-110, PT-120, TP-120 - PT-110xl UXGA Line Transmitter 5
3.2 Connecting the PT-110xl UXGA Line Transmitter
To connect the PT-110xl (as shown in Figure 2 ) do the following:
1. Connect a UXGA source (for example, a computer graphics card) to the
15-pin HD UXGA INPUT connector.
2. Connect a CAT5/6 cable to the RJ-45 LINE OUT connector.

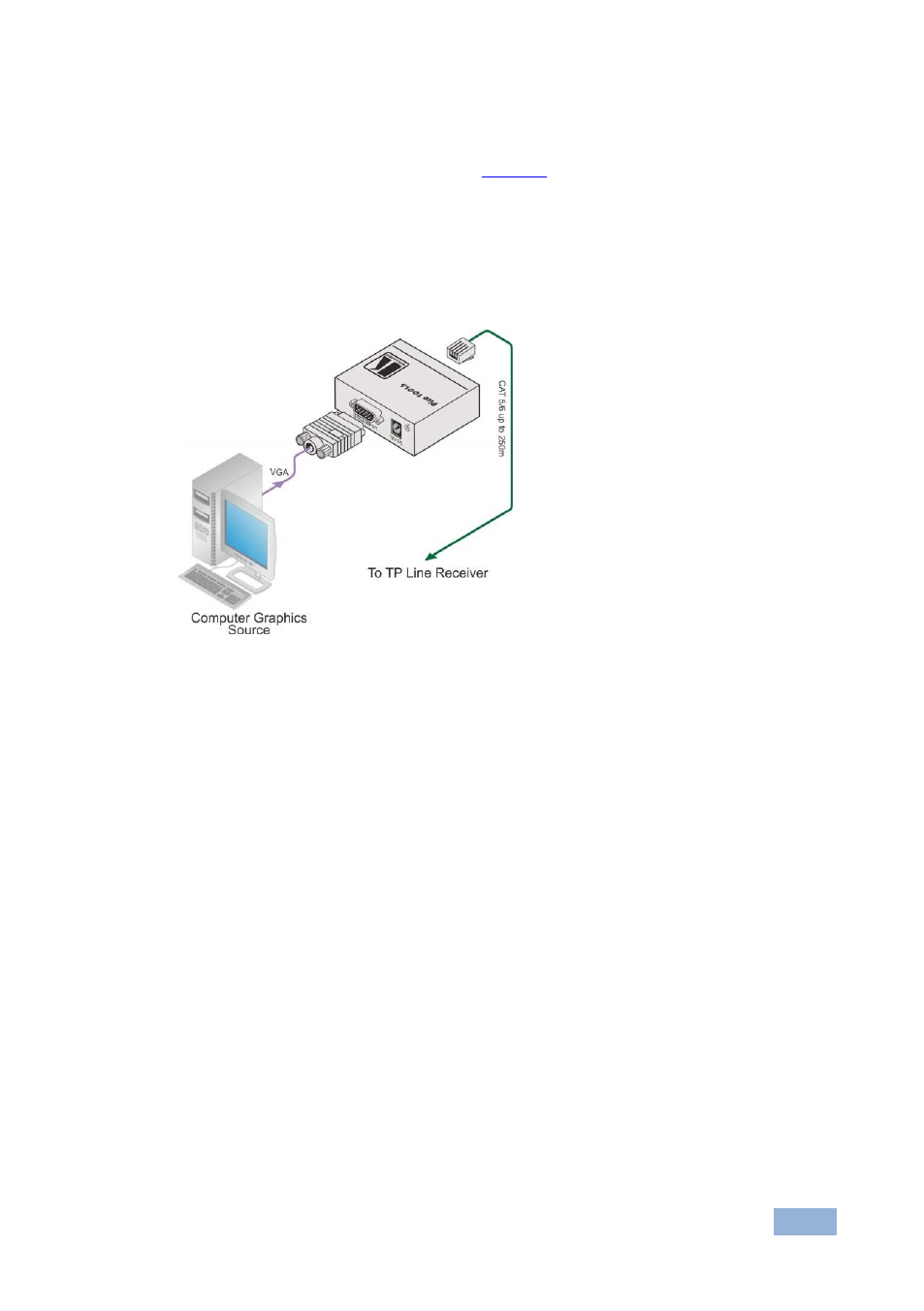

Figure 2: Connecting the PT-110xl UXGA Line Transmitter
3.3 Capturing the EDID
To capture an EDID:

Connect the device from which you want to capture the EDID (for example, a
display, switcher, DA, etc.) directly to the UXGA input of the PT-110xl

Press the EDID capture button.
The EDID status LED flashes slowly several times. The new EDID is
captured when the LED stops flashing and lights solid.
Note: If the status LED flashes quickly for a few seconds and then stays on
solid, the PT-110xl could not capture the EDID and loaded the default EDID
instead.
