5 PT-120 XGA Line Receiver
The Kramer Pico TOOLS PT-120 is an XGA line receiver that receives a coded
CAT 5 signal transmitted by the WP-110, decodes it and converts it to an XGA
output. In particular, the PT-120 features:

An operating range of more than 300ft (more than 100m) using standard
CAT 5 cable and the WP-110

EQ. and level controls

Power Connect and is 12V DC fed
5.1 Your PT-120 XGA Line Receiver

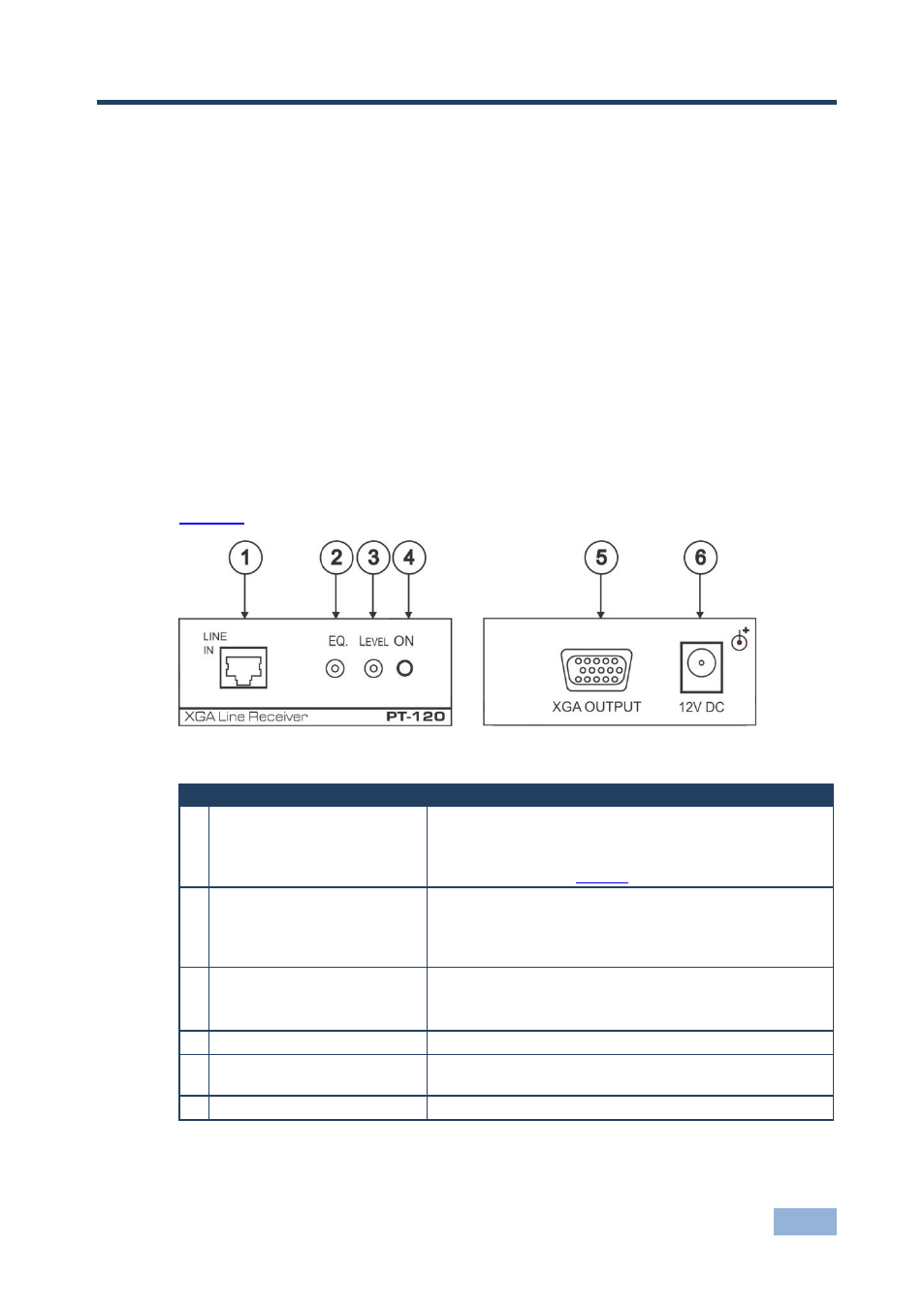

Figure 5 defines the PT-120 XGA Line Receiver:
Figure 5: PT-120 XGA Line Receiver
# Feature Function
1 LINE IN RJ-45 Connector Connects to the LINE OUT RJ-45 connector on the
WP-110 XGA Line Receiver
Using a UTP cable with CAT 5 connectors at both ends (the
PINOUT is defined in
Figure 8 )
2 EQ. Trimmer Adjusts the cable compensation equalization level
Degradation and VGA/XGA signal loss can result from using
long cables (due to stray capacitance), sometimes leading
to a total loss of sharpness in high-resolution signals
3 LEVEL Trimmer Adjusts the output signal level
Use a screwdriver to carefully rotate the trimmer, adjusting
the appropriate level
4 ON LED Illuminates when receiving power
5 XGA OUTPUT 15-pin HD (F)
Connector Connect to the XGA acceptor
6 12V DC +12V DC connector for powering the unit
