PT-110xl, WP-110, PT-120, TP-120 - TP-120 XGA Line Receiver 13
6 TP-120 XGA Line Receiver
The Kramer TOOLS TP-120 is an XGA line receiver that receives a coded CAT 5
signal transmitted by the WP-110, decodes it and converts it to an XGA output. In
particular, the TP-120:

Has an operating range of more than 300ft (more than 100m) using standard
CAT 5 cable and the WP-110

Includes EQ. and level controls

Has the power connect feature and is 12V DC fed
6.1 Your TP-120 XGA Line Receiver

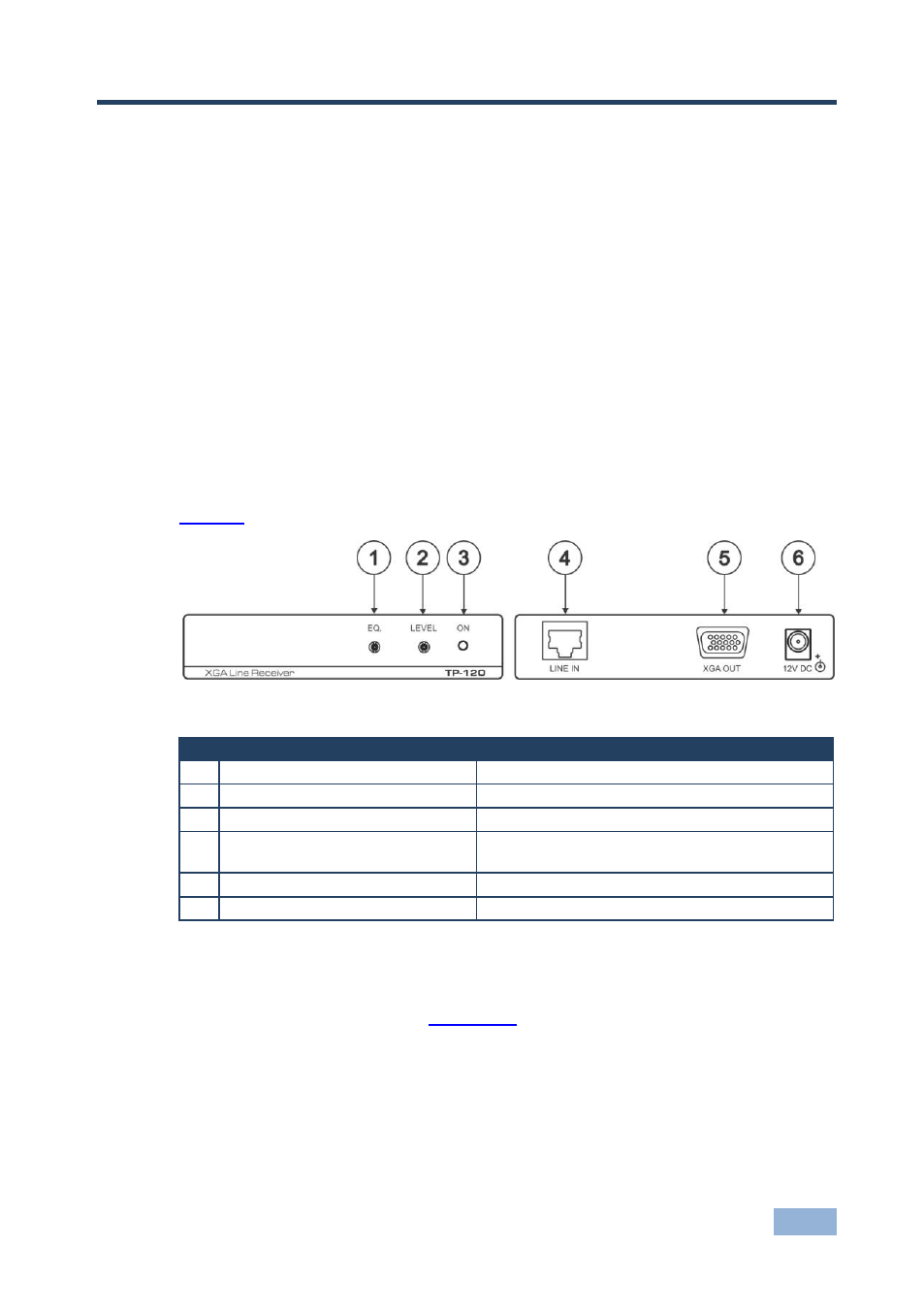

Figure 7 defines the TP-120 XGA Line Receiver:
Figure 7: TP-120 XGA Line Receiver
# Feature Function
1 EQ Trimmer Adjusts the cable compensation equalization level
2 LEVEL Trimmer Adjusts the output signal level
3 ON LED Illuminates when receiving power
4 LINE IN RJ-45 Connector Connects to the LINE OUT RJ-45 connector on
the WP-110 XGA Line Receiver
5 XGA OUT 15-pin HD (F) Connector Connect to the XGA acceptor
6 12V DC +12V DC connector for powering the unit
6.2 Connecting the TP-120 XGA Line Receiver
To connect the TP-120, refer to Section 4.3 .
